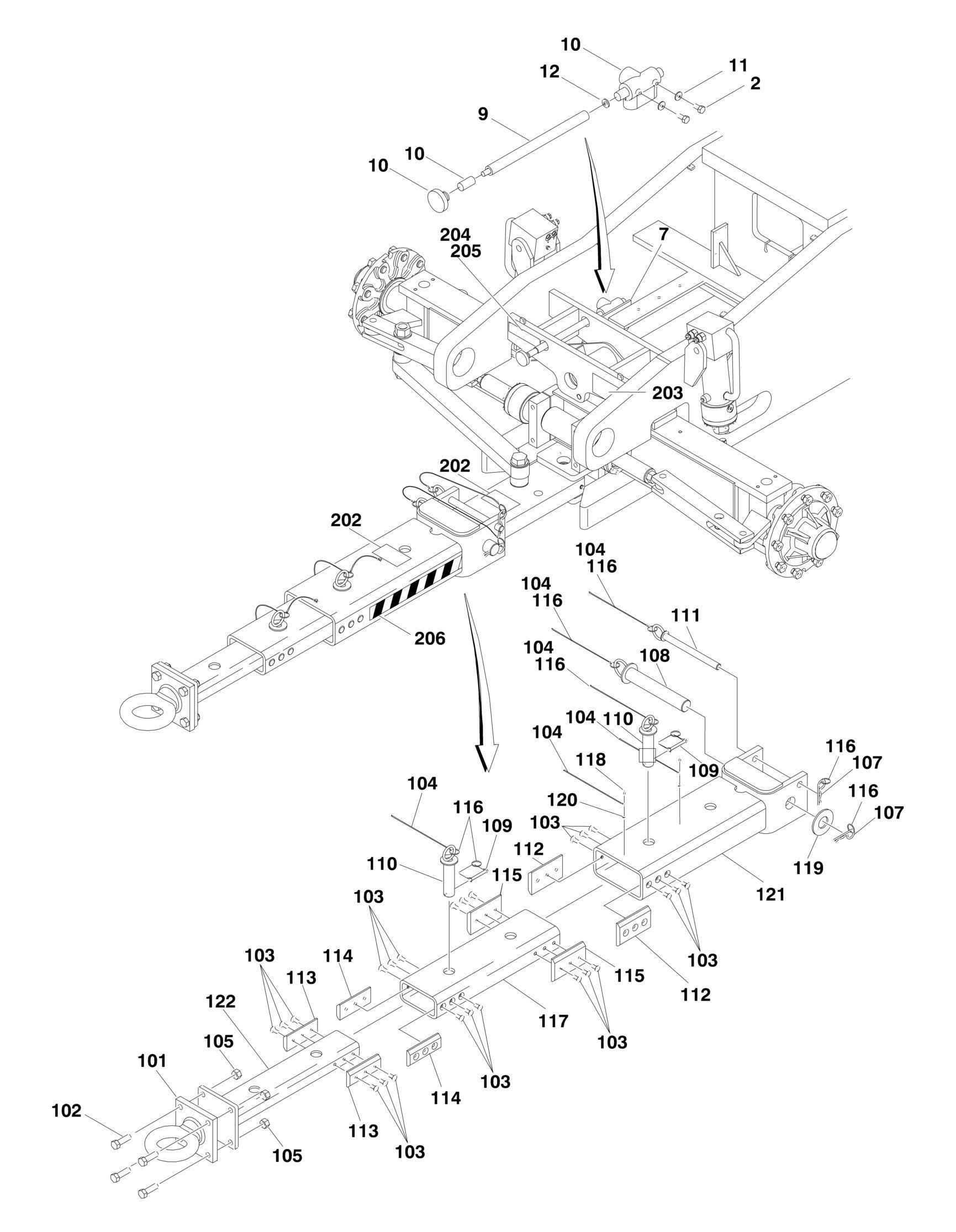

FIGURE 1-11. TOW BAR INSTALLATION - 2WD
FIGURE 1-11. TOW BAR INSTALLATION - 2WD
FIGURE 1-11. TOW BAR INSTALLATION - 2WD
ITEM PART NUMBER QTY
DESCRIPTION
0259845 Ref TOW BAR INSTALLATION - 2WD 2 0641505 2 Bolt 5/16in-18NC x 5/8in 7 3572102 1 Plate (Weld on Part) 9 3841329 1 Rod, Extension 10 4640261 1 Steer/Tow Select Valve 11 4711500 2 Flatwasher 5/16in 12 4761600 1 Lockwasher 3/8in 0259853 Ref TOW BAR ASSEMBLY
REV
B
B
101 0362910 1 Pintle, Draw Eye 102 0682016 4 Bolt 5/8in-11NC x 2in 103 0741607 24 Flat Head Socket Screw 3/8in-16NC x 5/8in 104 1060584 6 Cable, Lanyard 105 3272005 4 Locknut 5/8in-11NC 106 0100011 AR Loctite #242 (Not Shown) 107 3420372 2 Pin, Cotter 108 3420447 1 Pin, Towing 109 3421565 2 Pin, Snapper 110 3422841 2 Pin 111 3422847 1 Pin 112 3572009 2 Plate, Slide Stop 113 3572010 2 Plate, Slide Stop 114 3572011 2 Plate, Slide Stop 115 3572012 2 Plate, Slide Stop 116 3760170 8 Ring, Split 117 4568033 1 Tube, Tow Bar 118 0721004 2 Screw #10-24NC x 1/2in 119 4740036 1 Flatwasher 120 4751000 2 Flatwasher #10 (Wide) 121 4846168 1 Weldment, Tow Bar Attach 122 4846169 1 Weldment, Pintle Attach 0270116 Ref TOW BAR DECAL INSTALLATION (SPANISH SPEC) 1 0270119 Ref TOW BAR DECAL INSTALLATION (SPANISH/ENGLISH SPEC) 1
201
Ref Decal - Tow Instructions Options: (Not Shown Located on Frame Shield) 201 1704455 1 Spanish Spec 201 1704457 1 Spanish/English Spec 202 Ref Decal - Crushing Options: 202 1701518 3 Spanish Spec 202 1704577 3 Spanish/English Spec 203 Ref Decal - Warning Options: 203 1704456 1 Spanish Spec 203 1704576 1 Spanish/English Spec 204 Ref Nameplate - Steer/Tow Select Valve Options: 204 3252692 1 Spanish Spec 204 3252693 1 Spanish/English Spec 205 3820001 4 Rivet 206 4420051 43 in/109.2c m Tape
