FIGURE 1-9. DRIVE MOTOR ASSEMBLY - FRONT

FIGURE 1-9. DRIVE MOTOR ASSEMBLY - FRONT

FIGURE 1-9. DRIVE MOTOR ASSEMBLY - FRONT

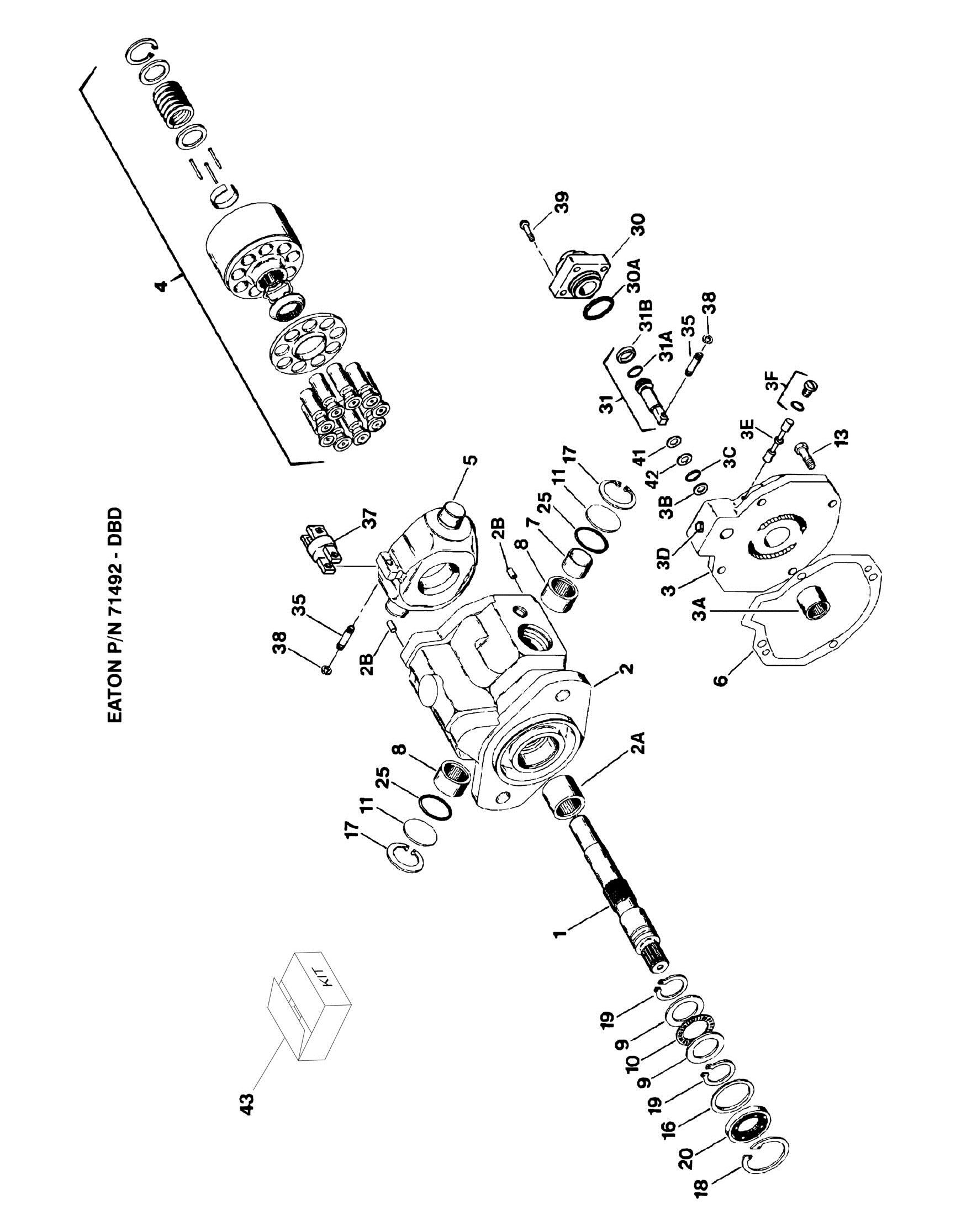

ITEM PART NUMBER QTY DESCRIPTION REV

Ref Note: Drive Motor p/n 3160227 is no longer available. Replace

complete drive motor with Service Replacement Drive Motor p/n 1001096417

Ref Note: Visually identify the drive motor by Eaton part number

before ordering replacement parts.

3160227 Ref DRIVE MOTOR ASSEMBLY - FRONT (EATON P/N 71492 - DBD) B 1 7020313 1 Shaft, Splined 2 7020314 1 Housing 2A 7004910 1 Bearing 2B See Note 2 Rollpin (Note: Purchase Locally) 3 7020344 1 Back Plate Assembly 3A 7004917 1 Bearing 3B See Note NSS Washer (Note: Use Item 43) 3C See Note NSS O-Ring (Note: Use Item 43) 3D 7020350 1 Plug 3E 7020349 1 Spool, Shuttle 3F 7020348 2 Plug 4 7020315 1 Rotating Kit Assembly (Sold As An Assembly Only) 5 7020316 1 Camplate 6 7020317 1 Gasket 7 7020318 1 Race, Inner 8 7020319 2 Bearing, Needle 9 7020320 2 Race, Thrust 10 7020321 1 Bearing, Thrust 11 7020322 2 Cover, Trunnion 13 7020323 4 Bolt 16 7020324 1 Washer 17 7020325 2 Ring, Retaining 18 7020326 1 Ring, Retaining 19 7020327 2 Ring, Retaining 20 7020328 1 Seal, Shaft 25 7020329 2 O-Ring 30 7020330 1 Housing, Control Piston 30A See Note NSS O-Ring (Note: Use Item 43) 31 7020331 1 Piston Control 31A See Note NSS O-Ring (Note: Use Item 43) 31B See Note NSS Ring, Slipper (Note: Use Item 43) 35 7020345 2 Pin, Connector 37 7020332 2 Plate, Connector 38 7020333 2 Ring, Retaining 39 7020334 4 Bolt 41 See Note NSS Washer (Note: Use Item 43) 42 See Note NSS O-Ring (Note: Use Item 43) 43 7020347 1 Seal Kit - Complete (Includes items 3B, 3C, 6, 16, 17, 18, 19, 20, 25, 30A, 31A, 31B, 38, 41 & 42) 1001096417 Ref DRIVE MOTOR ASSEMBLY - FRONT (EATON P/N 71392 - DBA) A 101 7004912 1 Shaft, Splined 102 See Note NSS Housing (Note: Use p/n 1001096417) 102A 7004910 1 Bearing 103 70002542 1 Back Plate Assembly

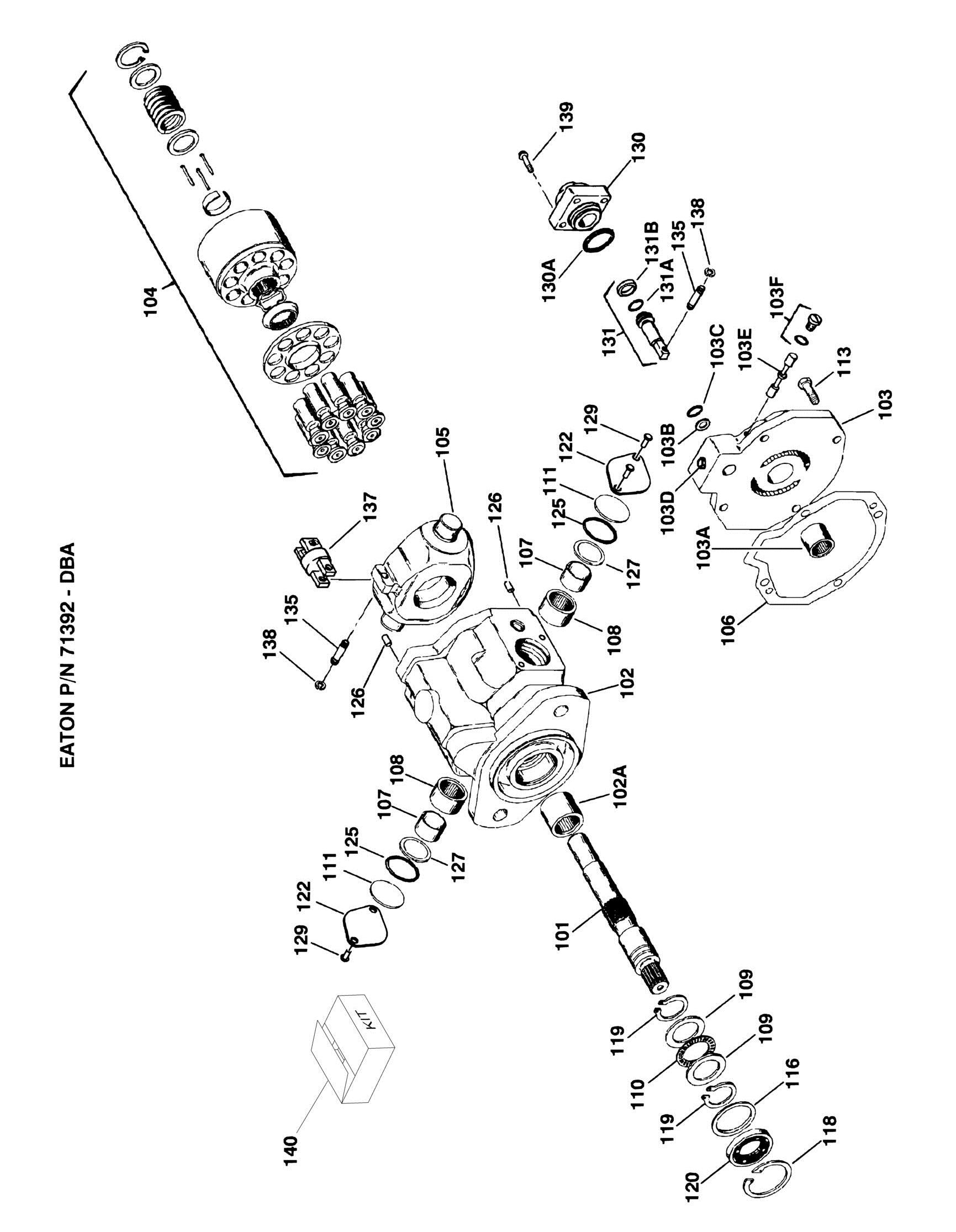

ITEM PART NUMBER QTY DESCRIPTION

103A Not Available 1 Bearing 103B See Note NSS Washer (Note: Use Item 140) 103C See Note NSS O-Ring (Note: Use Item 140) 103D See Note NSS Plug (Note: Use p/n 70002542) 103E See Note NSS Spool, Shuttle (Note: Use p/n 70002542) 103F See Note NSS Plug (Note: Use p/n 70002542) 104 7004916 1 Rotating Kit Assembly (Sold as an Assembly Only) 105 70002534 1 Camplate 106 See Note NSS Gasket (Note: Use Item 140) 107 7004911 2 Race, Inner 108 7004914 2 Bearing, Needle 109 7004907 2 Race, Thrust 110 7004908 1 Bearing, Thrust 111 70002535 2 Cover, Trunnion 113 7020323 4 Bolt 116 7004906 1 Washer 118 See Note NSS Ring, Retaining (Note: Use Item 140) 119 See Note NSS Ring, Retaining (Note: Use Item 140) 120 See Note NSS Seal, Shaft (Note: Use Item 140) 122 70002536 2 Cover 124 70002537 1 Plate, Valve (Not Shown - Located Between Items 102 & 103) 125 See Note NSS O-Ring (Note: Use Item 140) 126 70002538 2 Rollpin 127 70002539 2 Washer 129 70002540 4 Screw, Pan Head 130 7004939 1 Housing, Control Piston 130A See Note NSS O-Ring (Note: Use Item 140) 131 70002541 1 Piston Control 131A See Note NSS O-Ring (Note: Use Item 140) 131B See Note NSS Ring, Slipper (Note: Use Item 140) 135 7004929 2 Pin, Connector 137 7004928 2 Plate, Connector 138 See Note NSS Ring, Retaining (Note: Use Item 140) 139 7004938 4 Bolt 140 7020347 1 Seal Kit - Complete (Includes items 103B, 103C, 106, 118, 119, 120, 125, 130A, 131A, 131B & 138)

REV
