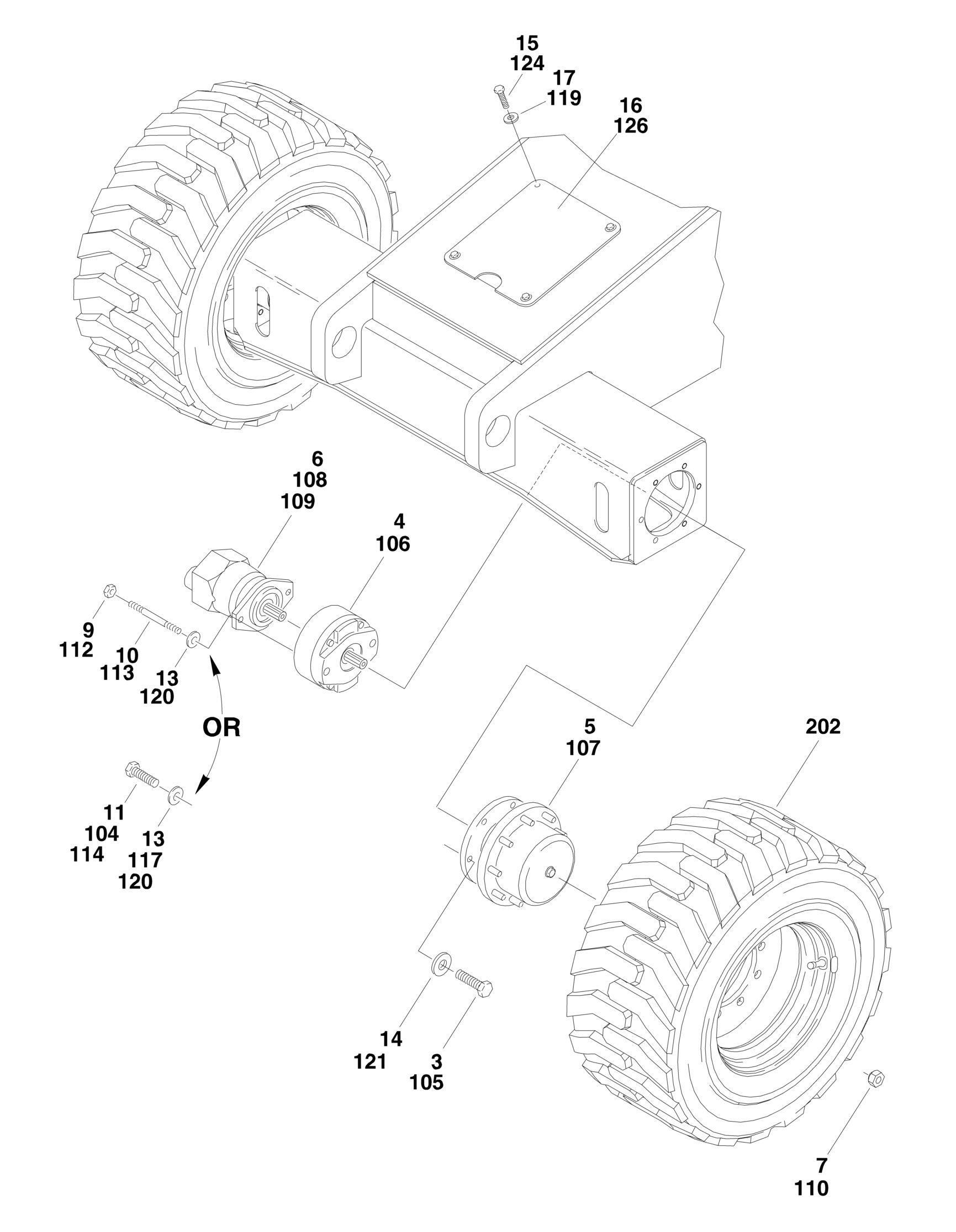

FIGURE 1-4. TIRE AND WHEEL DRIVE INSTALLATIONS

FIGURE 1-4. TIRE AND WHEEL DRIVE INSTALLATIONS

FIGURE 1-4. TIRE AND WHEEL DRIVE INSTALLATIONS

ITEM PART NUMBER QTY DESCRIPTION REV

Ref WHEEL DRIVE INSTALLATION (2WD) 0258020 Ref Wheel Drive Installation (2WD) (Prior to SN 0300056958) E 0270207 Ref Wheel Drive Installation (2WD) (SN 0300056958 through

0300065080)

B 1 0100011 AR Loctite #242 (Not Shown) 3 0682014 12 Bolt 5/8in-11NC x 1 3/4in 4 Ref Drive Brake Assembly (See DRIVE BRAKE ASSEMBLY for Breakdown) 4 0920112 2 Drive Brake Assembly (Prior to SN 0300056958) 4 0920117 2 Drive Brake Assembly (SN 0300056958 through 0300065080) 5 Ref Drive Hub Assembly Options: (Note: Do NOT Mix Hub Assemblies on Machine!) 5 2780224 2 Drive Hub Assembly (See DRIVE HUB ASSEMBLY for Breakdown) (Prior to SN 0300039594) 5 2780235 2 Drive Hub Assembly (See DRIVE HUB ASSEMBLY for Breakdown) (SN 0300039594 through 0300065080) 6 3160158 2 Drive Motor Assembly (See DRIVE MOTOR ASSEMBLY - REAR For Breakdown) 7 3300106 18 Lugnut 9 3311801 4 Nut 1/2in-13NC 10 4300120 4 Stud 11 0641836 4 Bolt 1/2in-13NC x 3in 13 4891800 4 Flatwasher 1/2in 14 4892000 12 Flatwasher 5/8in 15 0641606 4 Bolt 3/8in-16NC x 3/4in 16 4060970 1 Shield Only (SN 0300038566 through 0300065080) 17 4751600 4 Flatwasher 3/8in Ref WHEEL DRIVE INSTALLATION (4WD) 0258021 Ref Wheel Drive Installation (4WD) (Prior to SN 0300056958) F 0270208 Ref Wheel Drive Installation (4WD) (SN 0300056958 through

0300065080)

C 101 0100011 AR Loctite #242 (Not Shown) 104 0641810 4 Bolt 1/2in-13NC x 1 1/4in 105 0642014 24 Bolt 5/8in-11NC x 1 3/4in 106 Ref Drive Brake Assembly (Rear Only) (See DRIVE BRAKE ASSEMBLY for Breakdown) 106 0920112 2 Drive Brake Assembly (Rear Only) (Prior to SN 0300056958) 106 0920117 2 Drive Brake Assembly (Rear Only) (SN 0300056958 through

0300065080)

107 Ref Drive Hub Assembly Options: (Note: Do NOT Mix Hub Assemblies on Machine!) 107 2780224 NLA Drive Hub Assembly (Use p/n 2780235) (See DRIVE HUB ASSEMBLY for Breakdown) (Prior to SN 0300039594) 107 2780235 4 Drive Hub Assembly (See DRIVE HUB ASSEMBLY for Breakdown) (SN 0300039594 through 0300065080) 108 3160158 1 Drive Motor Assembly - Rear (See DRIVE MOTOR ASSEMBLY REAR For Breakdown) 109 3160227 NLA Drive Motor Assembly-Front (See DRIVE MOTOR ASSEMBLY FRONT For Breakdown) (Use p/n 1001096417) 110 3300106 36 Lugnut 112 3311801 4 Nut 1/2in-13NC 113 4300120 4 Stud 114 0641836 4 Bolt 1/2in-13NC x 3in

ITEM PART NUMBER QTY

DESCRIPTION

117 4711800 4 Flatwasher 1/2in Narrow 119 4751600 4 Flatwasher 3/8in 120 4891800 4 Flatwasher 1/2in 121 4892000 24 Flatwasher 5/8in 124 0641606 4 Bolt 3/8in-16NC x 3/4in 126 4060970 1 Shield Only (SN 0300038566 through 1001096417) 129 3960526 2 Gasket, Brake (Not Shown - Located Between Drive Motor and Hub on Front of Machine) Ref TIRE AND WHEEL INSTALLATIONS 0258030 Ref 12 x 16.5 Foam-Filled 0259643 Ref 12 x 21.5 Foam-Filled 0258031 Ref 33/1550 x 16.5 Foam-Filled 0259129 Ref 33/16LL x 16.1 Foam-Filled (Requires special

counterweighting)

0258009 2 12 x 16.5 Foam-Filled Right Side 0258010 2 12 x 16.5 Foam-Filled Left Side 0259638 2 12 x 21.5 Foam-Filled Right Side 0259636 2 12 x 21.5 Foam-Filled Left Side 0258011 2 33/1550 x 16.5 Foam-Filled Right Side 0258012 2 33/1550 x 16.5 Foam-Filled Left Side 0259128 4 33/16LL x 16.1 Foam-Filled (Requires special counterweighting) Ref Note: Assemblies may require ballast/foam filling to

manufacturer's specifications prior to installing on a machine. Refer to Operation and Safety or Service and Maintenance Manuals. Purchase individual tire and/or rim only if able to foam fill tire and wheel assembly, otherwise, purchase complete assembly,

202 Ref Tire, Replacement Options: 202 4520202 NLA Tire, Replacement 12 x 16.5 NHS (Use p/n 4520216) (Prior

to SN 0300043177)

202 4520216 1 Tire, Replacement 12 x 16.5 NHS (OTR Brand) (SN

0300043177 through 0300065080)

202 4520223 1 Tire, Replacement 12 x 21.5 NHS (OTR Brand) 202 4520203 1 Tire, Replacement 33/1550 x 16.5 NHS (Use p/n 4520217)

(Prior to SN 0300043177)

202 4520217 1 Tire, Replacement 33/1550 x 16.5 NHS (OTR Brand) (SN

0300043177 through 0300065080)

202 4520212 1 Tire, Replacement 33/16LL x 16.1

REV

A A A A

C C A A C C
