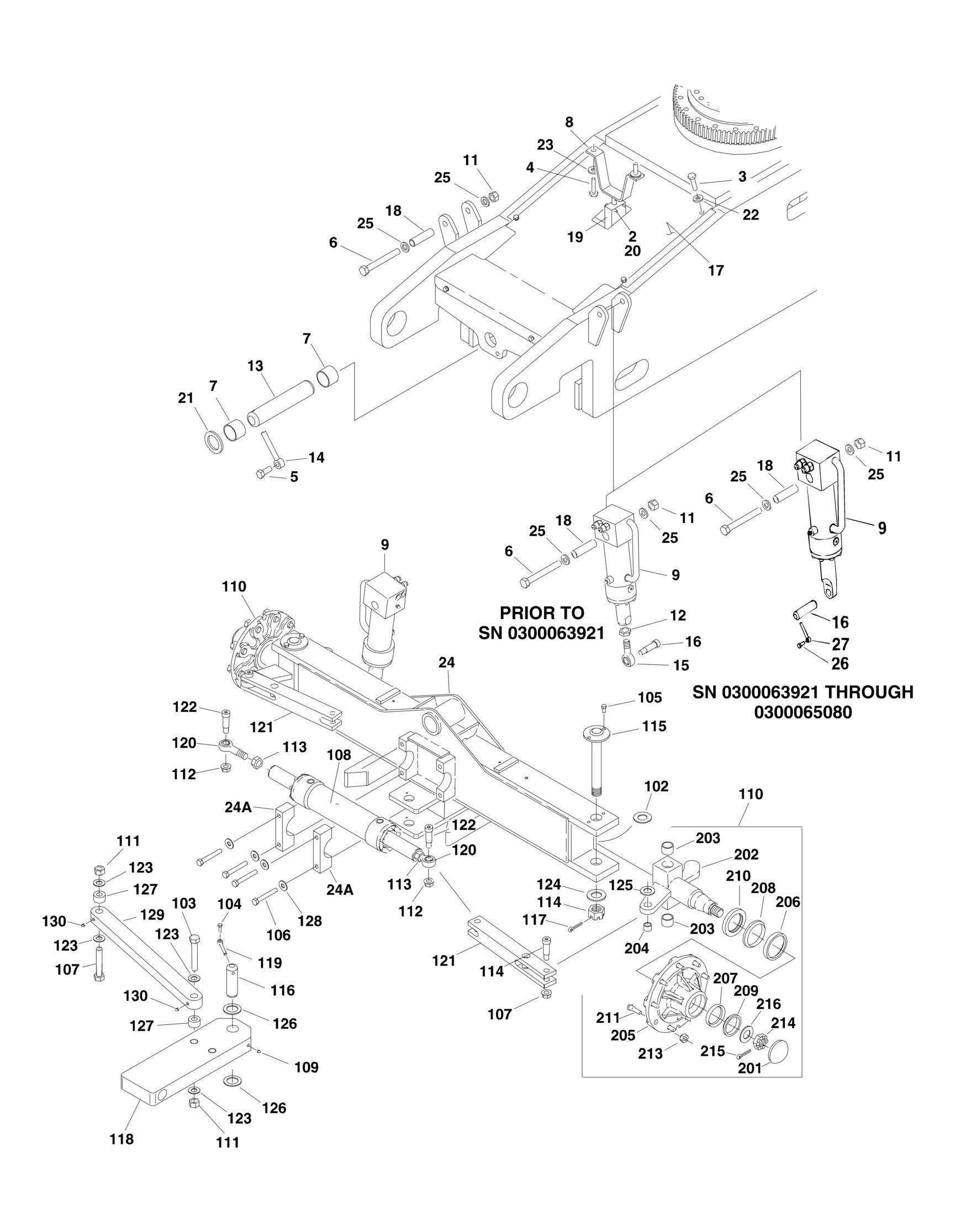

FIGURE 1-2. AXLE AND STEERING INSTALLATION - 2WD WITH TOW BAR (SN 0300049971 through 0300065080
ITEM PART NUMBER QTY
DESCRIPTION
0259967 Ref OSCILLATING AXLE INSTALLATION 1 0100011 AR Loctite #242 (Not Shown) 2 0641414 4 Bolt 1/4in-20NC x 1 3/4in 3 0641606 10 Bolt 3/8in-16NC x 3/4in 4 0641812 2 Bolt 1/2in-13NC x 1 1/2in 5 0642012 1 Bolt 5/8in-11NC x 1 1/2in 6 0682248 2 Bolt 3/4in-10NC x 6in 7 0961950 2 Bushing, Garmax 8 1100107 1 Cam, Lockout 9 Ref Lockout Cylinder Assembly Options (See CYLINDER SECTION for Breakdown): 9 1683575 2 Lockout Cylinder Assembly (Prior to SN 0300063921) 9 1684139 2 Lockout Cylinder Assembly (SN 0300063921 through
0300065080)
11 3272201 2 Nut 3/4in-10NC 12 3322201 2 Nut 3/4in-16NF 13 3422592 1 Pin, Axle Pivot 14 3841258 1 Keeper, Pin 15 3841367 2 Rod-End with Grease Fitting 15 7020180 1 Grease Fitting 16 Ref Hardware Options: 16 3900109 2 Screw, Shoulder (Prior to SN 0300063921) 16 3422936 2 Pin (SN 0300063921 through 0300065080) 17 4060951 1 Shield, Frame 18 4567462 2 Tube, Mounting 19 4640871 1 Lockout Valve Assembly 19 7012693 1 Seal Kit - 4640871 Valve 19 7002840 1 Tool, Pin Removal (Not Shown) 19 7002840 1 Anti-Rotation Pin Removal Tool 20 4711400 4 Flatwasher 1/4in Narrow 21 4740158 1 Thrustwasher 22 4751600 6 Flatwasher 3/8in 23 4751800 4 Flatwasher 1/2in 24 4846167 1 Axle Weldment 24A 0561300 2 Steer Cylinder Mounting Block Assembly 25 4892200 4 Flatwasher 3/4in 26 0641607 2 Bolt 3/8in-16NC x 7/8 (SN 0300063921 through 0300065080) 27 3841520 2 Keeper 3/8 (SN 0300063921 through 0300065080) 0259966 Ref STEERING INSTALLATION 101 0100011 AR Loctite #242 (Not Shown) 102 0440162 2 Thrustwasher 103 0630544 1 Bolt 1in-8NC x 6in 104 0641508 1 Bolt 5/16in-18NC x 1in 105 0641606 4 Bolt 3/8in-16NC x 3/4in 106 0681828 4 Bolt 1/2in-13NC x 3 1/2in 107 0682648 1 Bolt 1in-8NC x 6in 108 1683614 NLA Steer Cylinder Assembly (Use p/n 1684412) (Original Equipment) (See CYLINDER SECTION for Breakdown) 108 1684412 1 Steer Cylinder Assembly (Service Replacement) (See CYLINDER SECTION for Breakdown)
REV
C
B
ITEM PART NUMBER QTY DESCRIPTION
109 2160002 1 Fitting, STR Grease 110 2780230 2 Hub/Spindle Assembly (See 201 to 213 for Breakdown) 111 3272605 2 Locknut 1in-8NC 112 3312008 4 Nut 5/8in-11NC 113 3322201 4 Nut 3/4in-16NF 114 3323003 2 Nut 1 1/4in-12NF 115 3422692 2 Kingpin 116 3422848 1 Pin, Hitch 117 3450812 2 Pin, Cotter 1/4in x 3in 118 3571975 1 Plate, Tow Bar Pivot 119 3841143 1 Keeper 120 3841367 2 Rod-End with Grease Fitting 120 7020180 1 Grease Fitting 121 3841377 2 Tie-Rod 122 3900109 6 Screw, Shoulder 123 4712600 4 Flatwasher 1in 124 4713000 2 Flatwasher 1 1/4in 125 4740086 2 Washer, Thrust 126 4740155 2 Washer, Thrust 127 4740491 2 Washer, Thrust 128 4751800 4 Flatwasher 1/2in 129 4846162 1 Weldment, Link 130 2160001 2 Fitting, Grease 2780230 Ref HUB ASSEMBLY 201 7020033 2 Cap, Dust (1 per Assembly) 202 7020034 2 Spindle Assembly (1 per Assembly) 203 0961951 4 Bushing, Garmax (2 Per Assembly) 204 0962140 2 Bearing, Garmax (1 per Assembly) 205 7020035 2 Hub (1 per Assembly) (Includes 306 & 307) 206 7020036 2 Cup, Bearing - Inner(1 per Assembly) 207 7020038 2 Cup, Bearing - Outer (1 per Assembly) 208 7020037 2 Cone, Bearing - Inner (1 per Assembly) 209 7020039 2 Cone, Bearing - Outer (1 per Assembly) 210 7020040 2 Seal (1 Per Assembly) 211 7020041 18 Stud, Wheel (9 Per Assembly) 213 7020042 18 Lugnut (9 per Assembly) 214 7020054 2 Nut, Castle (1 per Assembly) 215 3450608 2 Pin, Cotter (1 Per Assembly) 216 7020055 2 Washer, Spindle (1 Per Assembly)
REV
A
