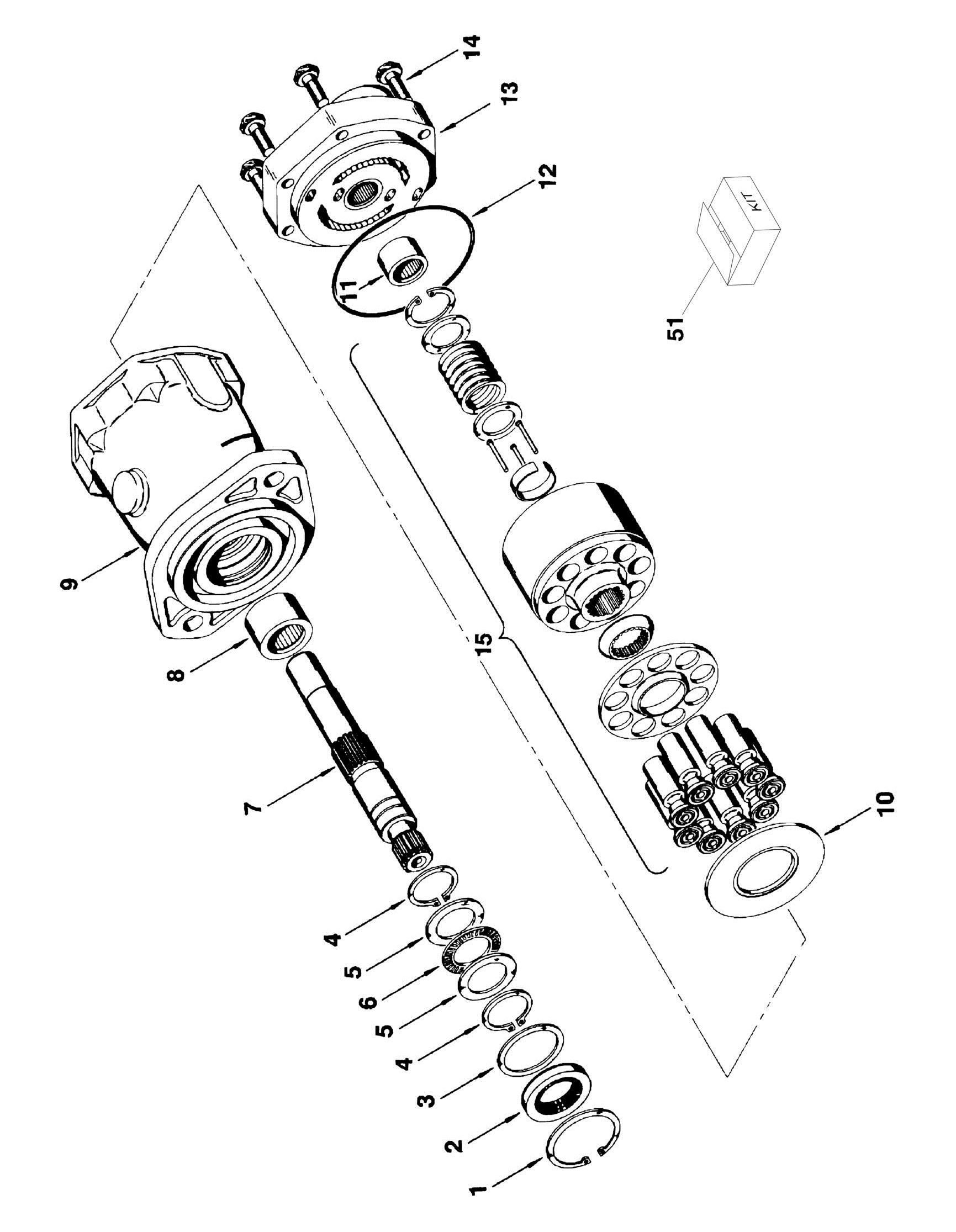

FIGURE 1-8. DRIVE MOTOR ASSEMBLY - REAR
FIGURE 1-8. DRIVE MOTOR ASSEMBLY - REAR
FIGURE 1-8. DRIVE MOTOR ASSEMBLY - REAR
ITEM PART NUMBER QTY
DESCRIPTION
3160158 Ref DRIVE MOTOR ASSEMBLY - REAR 1 See Note NSS Ring, Retaining (Note: Use Item 51) 2 See Note NSS Seal, Shaft (Note: Use Item 51) 3 7004906 1 Washer 4 See Note NSS Ring, Retaining (Note: Use Item 51) 5 7004907 2 Race, Thrust 6 7004908 1 Bearing, Thrust 7 7007874 1 Shaft, Splined 8 7004910 1 Bearing 9 7007875 1 Housing Assembly (Includes Item 8) 10 7007876 1 Insert, Camplate 11 7004917 1 Bearing 12 See Note NSS O-Ring (Note: Use Item 51) 13 7007878 1 Back Plate Assembly (Includes Item 11) 14 7007879 6 Bolt 15 7007880 1 Rotating Kit Assembly (Sold as an Assembly Only) 51 2900714 1 Seal Kit (Includes Items 1, 2, 4 & 12)
