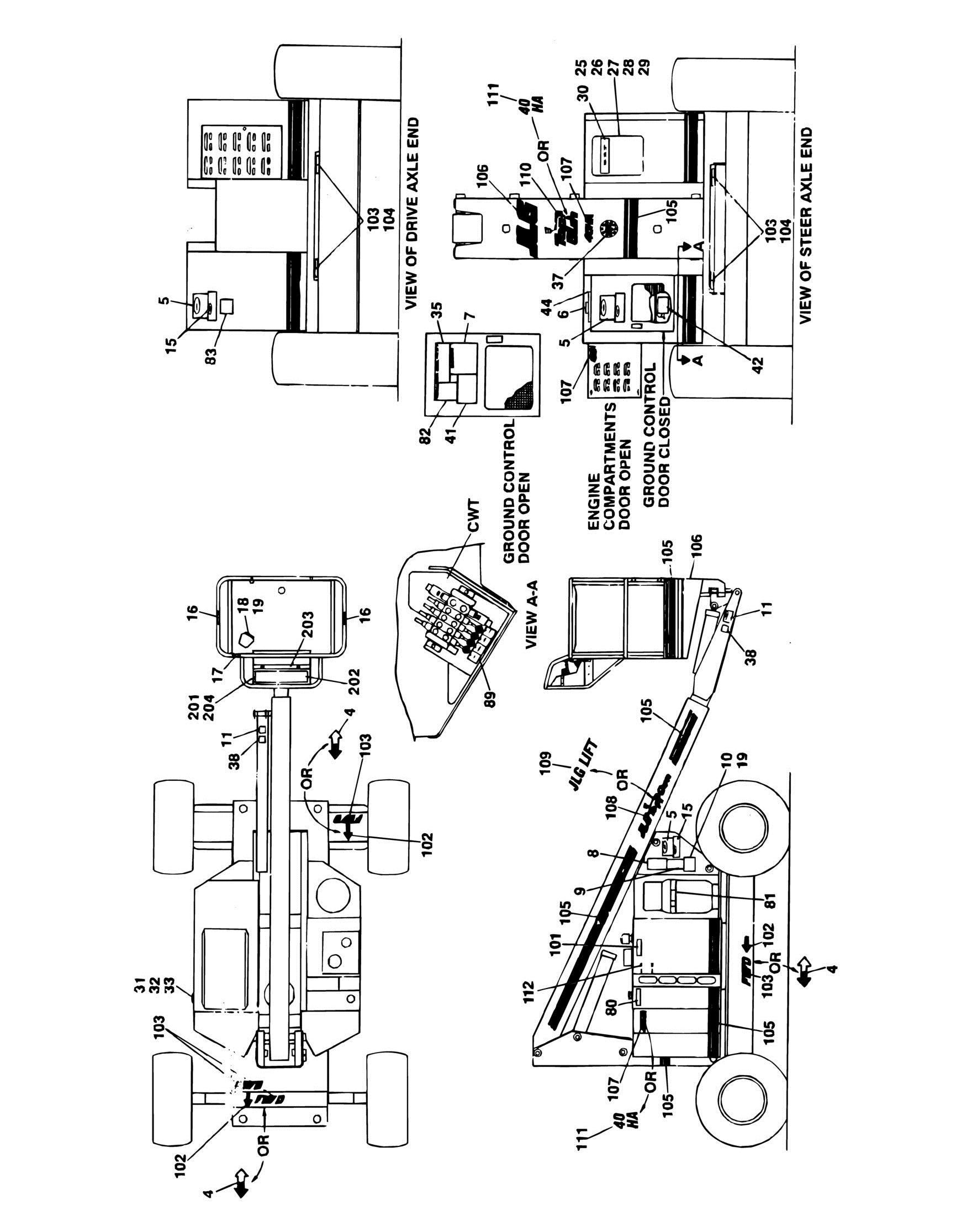

FIGURE 8-1. DECALS INSTALLATION

FIGURE 8-1. DECALS INSTALLATION

FIGURE 8-1. DECALS INSTALLATION

ITEM PART NUMBER QTY DESCRIPTION REV

Ref DECALS INSTALLATION (STANDARD PARTS) 1281358 Ref STANDARD BANG-BANG AND PROPORTIONAL CONTROLS S 1282027 Ref HYDRAULIC CONTROLS B 4 1701529 4 Decal - Arrow (February 1993 to Present) 5 Ref Decal - Crushing Options: 5 1700585 4 Decal - Crushing (Prior to May 1994) 5 1702277 4 Decal - Crushing (May 1994 to Present) 6 1700037 1 Decal - Ground Controls 7 Ref Decal - Important Options: 7 1700643 1 Decal - Important (Prior to May 1994) 7 1702299 1 Decal - Important (May 1994 to Present) 8 1700584 1 Decal - Patent 9 Ref Decal - Inspection Options: 9 1700593 1 Decal - Inspection (Prior to May 1994) 9 1702153 1 Decal - Inspection (May 1994 to Present) 10 Not Available 1 Nameplate - Serial Number 11 Ref Decal - Crushing Options: 11 1700640 3 Decal - Crushing (Prior to May 1994) 11 1702284 3 Decal - Crushing (May 1994 to Present) 15 Ref Decal - Electrocution Options: 15 1700580 4 Decal - Electrocution (Prior to May 1994) 15 1702292 4 Decal - Electrocution (May 1994 to Present) 16 1700476 2 Decal - No Hands (Prior to May 1994) 16 1702294 2 Decal - No Hands (May 1994 to Present) 17 Ref Decal - Attach Belt Options: 17 1700477 2 Decal - Attach Belt (Prior to May 1994) 17 1702276 2 Decal - Attach Belt (May 1994 to September 1995) 17 1702612 2 Decal - Attach Belt (September 1995 to SN 27520) 17 1704277 2 Decal - Attach Belt (SN 27521 to Present) 18 3251766 1 Nameplate - Footswitch (Prior to July 1992) 19 3820001 AR Rivet 25 0860520 1 Box, Manual Storage 26 4751400 6 Flatwasher 1/4in 27 3311405 5 Locknut 1/4in-20NC 28 1060279 1 Lanyard 29 0641408 1 Bolt 1/4in-20NC x 1in 30 1700157 1 Decal - Manual 31 0961127 1 Bushing, Snap 32 0100010 AR Adhesive 33 3251243 1 Nameplate - 120V 34 1700756 1 Decal - Add/Full 35 1700582 1 Decal - Ground Control Operation (Prior to May 1994) 35 1702293 1 Decal - Ground Control Operation (May 1994 to Present) 37 3251813 1 Nameplate - Made in U.S.A. 38 1701460 2 Decal - Caution (Prior to May 1994) 38 1702280 2 Decal - Caution (May 1994 to Present) 41 1702282 1 Decal - Warning (May 1994 to Present Only) 42 1702265 1 Decal - Important (May 1994 to Present Only) 43 Not Available 1 Decal - Bar Code (SN 27521 to Present) 44 1702688 1 Decal - Max Capacity (500 Lbs) (SN 27521 to Present)

ITEM PART NUMBER QTY

DESCRIPTION

Ref DECALS INSTALLATION (OPTIONAL PARTS) 80 Ref Decal - Fuel Options: 80 1700428 1 Diesel (Brown) 80 1702600 1 Diesel (Brown) (Latin American Spec) 80 1700196 1 Diesel (Black) 80 1700430 1 Gasoline (Brown) 80 1702722 1 Gasoline (Brown) (Latin American Spec) 80 1700194 1 Gasoline (Black) 81 Ref Decal - LP Gas Options: 81 1700429 1 LP Gas (Brown) 81 1700197 1 LP Gas (Black) 82 3251028 1 Decal - Dual Fuel (Prior to May 1994) 82 3252356 1 Decal - Dual Fuel (May 1994 to Present) 83 1700818 1 Decal - LP Gas Liquid Withdraw System 84 1700853 1 Decal - Ground Control Selection (Hydraulic Controls Only) Ref DECAL INSTALLATIONS (VARIABLE PARTS) Ref DECAL INSTALLATION - BROWN 0250026 Ref STANDARD BANG-BANG AND PROPORTIONAL

CONTROLS REV

11

0251034 Ref HYDRAULIC CONTROLS (PRIOR TO FEBRUARY 1992) 0253756 Ref HYDRAULIC CONTROLS (DECEMBER 1992 TO PRESENT) 5 Ref DECAL INSTALLATION - BLACK 0252821 Ref STANDARD BANG-BANG AND PROPORTIONAL

CONTROLS

8 0253757 Ref HYDRAULIC CONTROLS 5 101 Ref Decal - Hydraulic Fluid 101 1700419 1 Decal - Brown 101 1700195 1 Decal - Black 102 Ref Decal Options: (Prior to February 1993) 102 1700977 4 Decal - FWD (Brown) 102 1700978 4 Decal - Arrow (Brown) 102 1700053 4 Decal - FWD (Black) 102 1700058 4 Decal - Arrow (Black) 103 Ref Decal - Lift Here Options: 103 1700975 4 Decal - Brown (Prior to SN 27521) 103 1700232 4 Decal - Black (Prior to SN 27521) 103 1701500 4 Decal - Brown/Black (SN 27521 to Present) 104 Ref Decal - Tie Down Options: 104 1700976 4 Decal - Brown (Prior to SN 27521) 104 1700326 4 Decal - Black (Prior to SN 27521) 104 1702300 4 Decal - Brown/Black (SN 27521 to Present) 105 Ref Decal - Stripe Options: 105 1700431 48 ft/14.6m Decal - Brown (Prior to SN 27521) 105 1701703 48 ft/14.6m Decal - Brown (SN 27521 to Present) 105 1701334 48 ft/14.6m Decal - Black

106 Ref Decal - JLG 106 1700981 2 Decal - Brown 106 1701321 2 Decal - Black 107 Ref Decal - 40HA Options:

ITEM PART NUMBER QTY

DESCRIPTION

107 1701239 AR Decal - Brown (Qty 2 - Prior to February 1992/Qty 1 February 1992 to Present Located on Engine Door) 107 1701725 AR Decal - Black (Located on Engine Door Only) 108 Ref Decal - Top Gun (Prior to February 1992) 108 1700979 2 Decal - Brown 109 Ref Decal - JLG Lift Options: 109 1701441 2 Decal - Brown (February 1992 to Present) 109 1701550 2 Decal - Black 110 Ref Decal - Top Gun (Prior to February 1992) 110 1700980 1 Decal - Brown 111 Ref Decal - 40HA Options: 111 1701470 2 Decal - Brown (February 1992 to Present) 111 1701594 2 Decal - Black 112 Ref Decal - Full/Add Options: 112 1700756 1 Decal - Brown 112 Ref Decal - Black 112 1700755 1 Decal - Black (Prior to May 1994) 112 1701336 1 Decal - Black (May 1994 to Present) 2900763 1 Decal Kit - Brown 2910025 1 Decal Kit - Black (Includes Items 202 & 203) 0253639 Ref CAUTION/DANGER NAMEPLATE INSTALLATION (STANDARD

BANG-BANG AND PROPORTIONAL CONTROLS BUILT FEBRUARY 1993 TO PRESENT)

201 3536671 1 Plate, Mounting 202 3252144 1 Nameplate (February 1993 to May 1994) 202 3252369 1 Nameplate (May 1994 to Present) 203 1702289 1 Decal - Symbols 204 3820019 4 Rivet 2910025 1 Decal Kit (Includes Items 202 & 203)

REV

A
