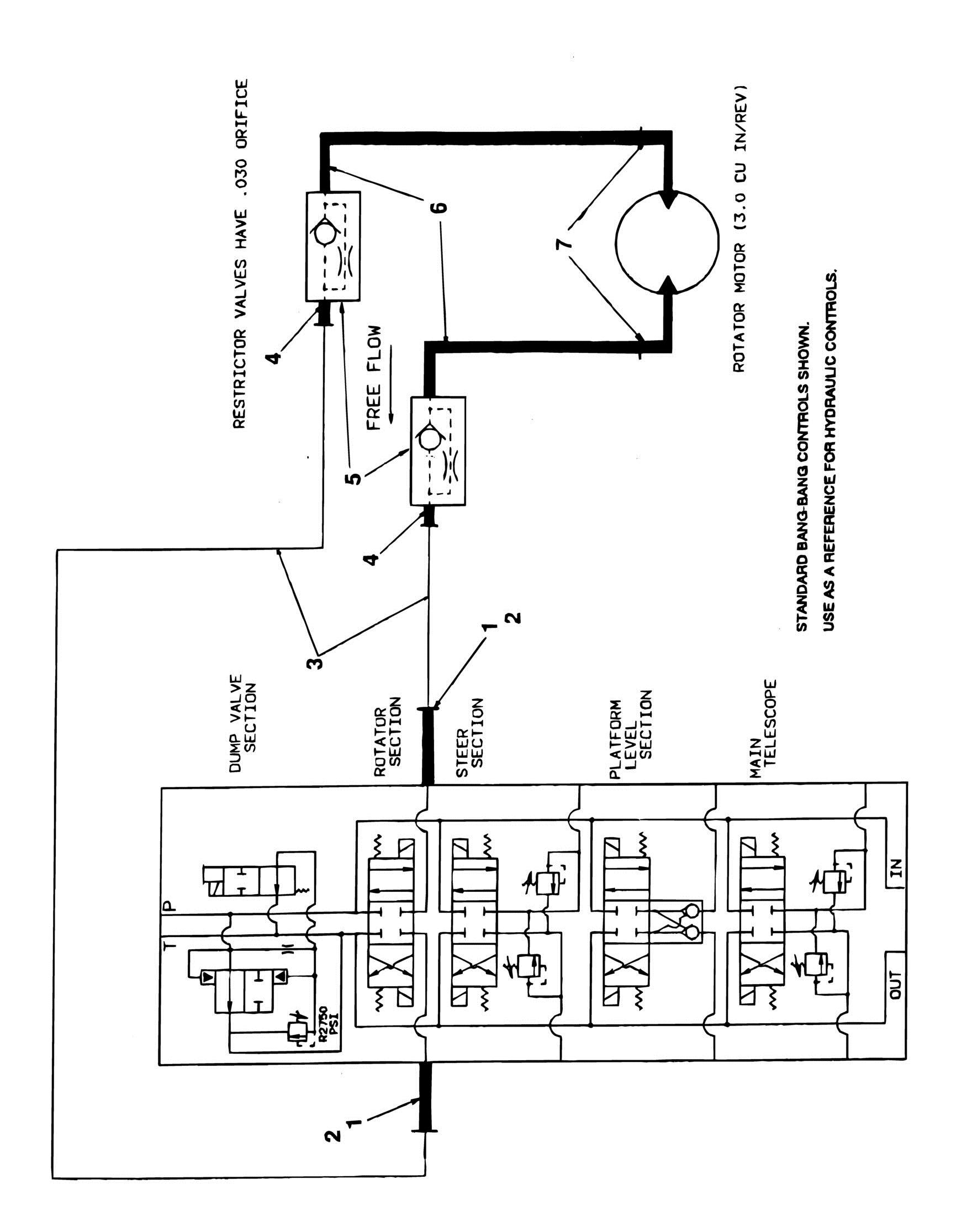

FIGURE 6-5. HYDRAULIC DIAGRAM - ROTATE

FIGURE 6-5. HYDRAULIC DIAGRAM - ROTATE

FIGURE 6-5. HYDRAULIC DIAGRAM - ROTATE

ITEM PART NUMBER QTY DESCRIPTION REV

Ref HYDRAULIC DIAGRAM - ROTATE 2791578 Ref STANDARD BANG-BANG AND PROPORTIONAL CONTROLS B 2791673 Ref HYDRAULIC CONTROLS A 1 Ref Fitting, Straight Options: 1 2220582 2 Standard - Fitting, Straight 1 2220468 2 Hydraulic Controls - Fitting, Straight 2 Ref Fitting, 90 Options: 2 2220654 2 Standard 2 Not Required 2 Hydraulic Controls 3 Ref Hose Options: 3 2751454 2 Standard 3 2751011 2 Hydraulic Controls 4 Ref Fitting, 90 Options: 4 2220416 2 Standard 4 2220466 2 Hydraulic Controls 5 Ref Valve, Restrictor Options: 5 4640383 2 Standard 5 4640778 2 Hydraulic Controls 6 Ref Fitting Options: 6 2220261 2 Standard - Fitting, Nipple 6 2220895 2 Hydraulic Controls - Fitting, Straight 7 Ref Fitting Options: 7 2220816 2 Standard 7 2220218 2 Hydraulic Controls
