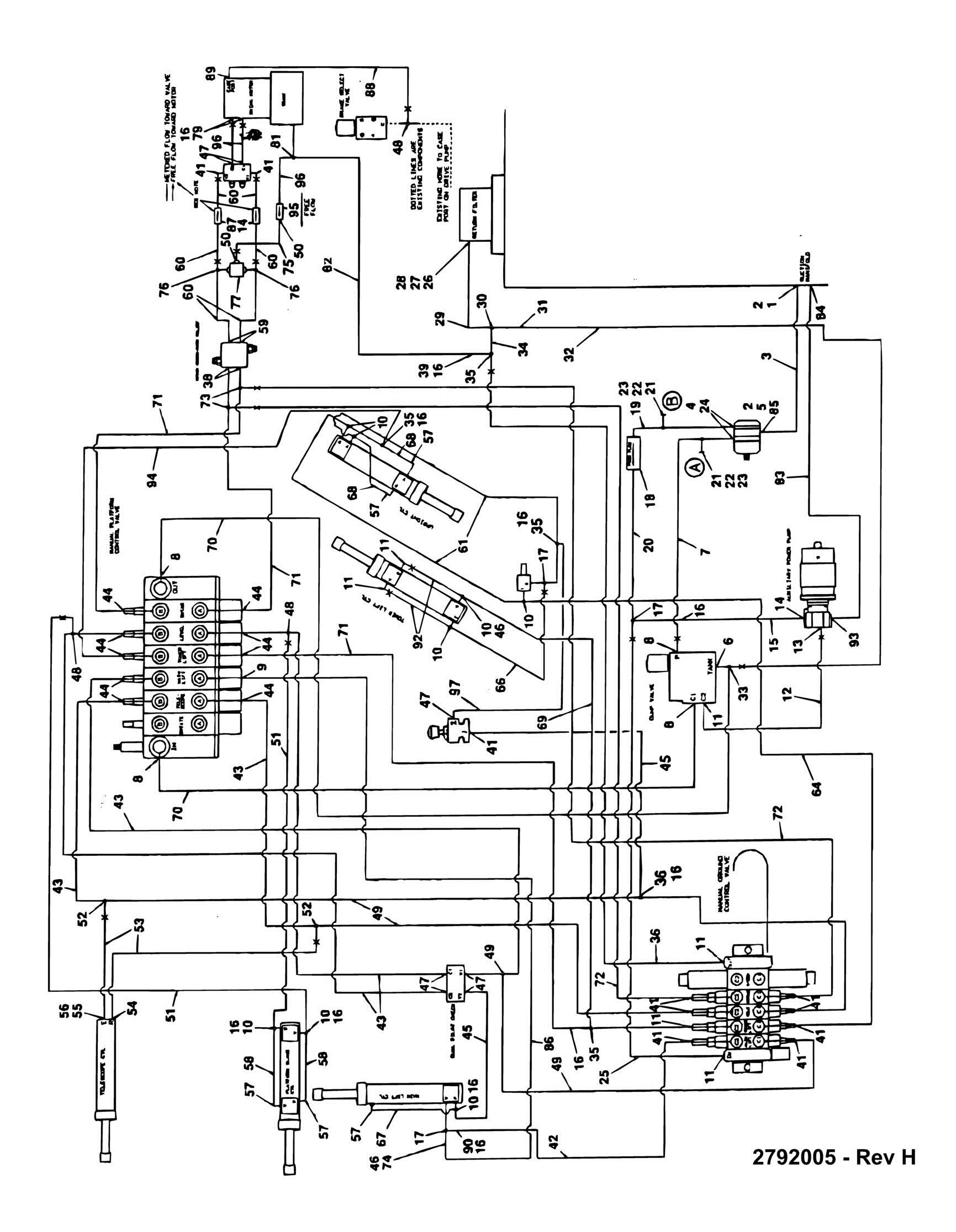

FIGURE 6-8. HYDRAULIC DIAGRAM - STANDARD (HYDRAULIC CONTROLS
ITEM PART NUMBER QTY DESCRIPTION REV
2792005 Ref HYDRAULIC DIAGRAM - STANDARD (HYDRAULIC CONTROLS) H 1 2210007 1 Fitting, Barbed 2 1320033 4 Clamp 3 2720335 54 in Hose 4 2220810 2 Fitting 5 2210028 1 Fitting, Nipple 6 2220596 1 Fitting, 90 7 2750928 1 Hose 8 2220373 4 Fitting 9 2220372 1 Fitting 10 2220899 8 Fitting, Tee 11 2220371 6 Fitting 12 2750913 1 Hose 13 2220603 1 Fitting 14 2220415 5 Fitting 15 2751397 1 Hose 16 2220609 12 Fitting, Reducer 17 2220606 3 Fitting 18 4640776 1 Valve, Check 19 2220651 1 Fitting 20 2220591 1 Fitting 21 2220820 2 Fitting, 90 22 2220428 2 Fitting, Quick Disconnect 23 2220429 2 Cap, Dust 24 2180491 2 Fitting, 90 25 2751102 1 Hose 26 2220329 1 Fitting, Reducer 27 2220550 1 Fitting, Reducer 28 2220451 1 Fitting 29 2220407 1 Fitting, 90 30 2220700 1 Fitting, Tee 31 2220622 1 Fitting, Reducer 32 2751467 1 Hose 33 2220385 1 Fitting, Tee 34 2220621 1 Fitting, Reducer 35 2220635 5 Fitting, Tee 36 2750909 1 Hose 38 2220250 2 Fitting, Reducer 39 2220909 1 Fitting 41 2220582 10 Fitting 42 2751418 1 Hose 43 2751030 5 Hose 44 2220468 9 Fitting 45 2751015 2 Hose 46 2220907 2 Fitting, Restrictor 47 2220472 6 Fitting, 90 48 2220605 4 Fitting, Tee 49 2751421 3 Hose 50 2220414 3 Fitting 51 2751432 2 Hose
ITEM PART NUMBER QTY
52 2220504 2 Fitting, Tee 53 2751435 2 Hose 54 2220416 1 Fitting, 90 55 2200064 1 Fitting, 90 56 2180651 1 Fitting, Modified 57 2220473 5 Fitting 58 2750918 2 Hose 59 2220417 2 Fitting 60 2750901 2 Hose 61 2751150 2 Hose 64 2750999 1 Hose 66 2750991 1 Hose 67 2750998 1 Hose 68 2751101 2 Hose 69 2751852 1 Hose 70 2751520 2 Hose 71 2751457 3 Hose 72 2751398 2 Hose 73 2220684 2 Fitting, Tee 74 2220507 1 Fitting 75 2751394 3 Hose 76 2220584 2 Fitting, Tee 77 4640013 1 Valve, Shuttle 78 2750902 2 Hose 79 2220497 2 Fitting 80 2751017 1 Hose 81 2220711 1 Fitting, Tee 82 2750891 1 Hose 83 2750773 1 Hose 84 2220346 1 Fitting 85 2220376 1 Fitting 86 2752159 1 Hose 87 4640817 2 Valve, Restrictor (.045) 88 2751391 1 Hose 89 2220466 1 Fitting 90 2220908 1 Fitting, Restrictor (.047) 91 4640818 1 Valve, Relief 92 2750921 2 Hose 93 2220671 1 Fitting 94 2751921 1 Hose 95 4640213 1 Valve, Restrictor (.015) 96 2751017 3 Hose 97 2751026 1 Hose 98 2750899 2 Hose 0100020 AR Sealant, Thread
