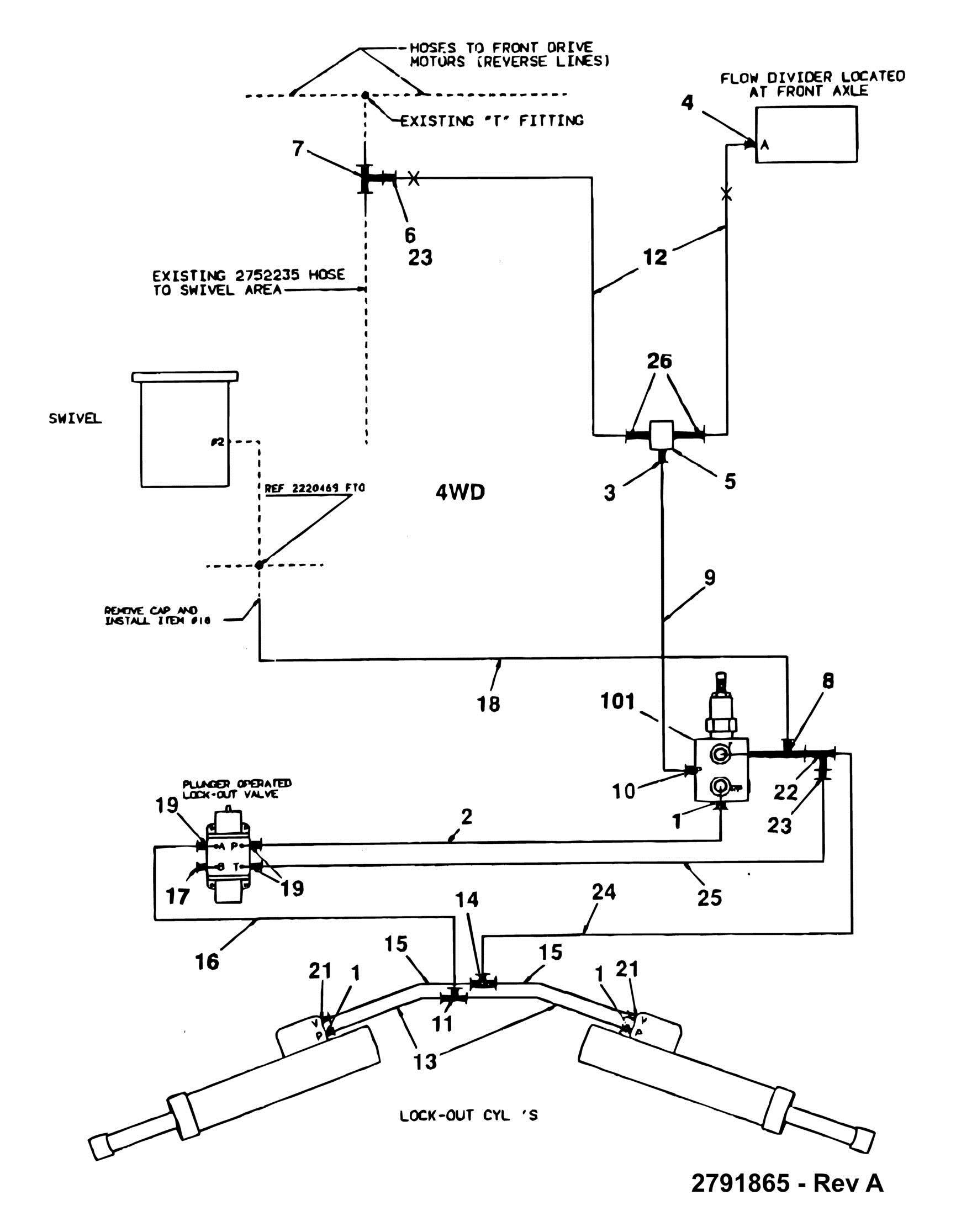

FIGURE 6-2. HYDRAULIC DIAGRAM - AXLE LOCKOUT (4WD
ITEM PART NUMBER QTY
DESCRIPTION
2791865 Ref HYDRAULIC DIAGRAM - AXLE LOCKOUT (4WD) 1 2220582 3 Fitting, Straight 2 2751397 1 Hose 3 2220414 1 Fitting, Straight 4 2220415 1 Fitting, Straight 5 4640013 1 Valve, Shuttle 6 2220621 1 Fitting, Reducer 7 2220700 1 Fitting, Tee 8 2220606 1 Fitting, Tee 9 2751015 1 Hose 10 2220472 1 Fitting, 90 11 2220504 1 Fitting, Tee 12 2751018 2 Hose 13 2752433 2 Hose 14 2220490 1 Fitting, Tee 15 2750910 2 Hose 16 2751013 1 Hose 17 2220235 1 Hose, Plug 18 2750779 1 Hose 19 2220466 3 Fitting, 90 21 2220371 2 Fitting, Straight 22 2220635 1 Fitting, Tee 23 2220609 2 Fitting, Reducer 24 2750786 1 Hose 25 2751020 1 Hose 26 2220416 2 Fitting, 90 0251599 Ref PRESSURE REDUCING VALVE INSTALLATION 101 4640689 1 Valve, Pressure Reducing 101 7010530 1 Cartridge 101 2900698 1 Seal Kit 101 7010531 1 Plug, Sense Check 101 3780149 1 O-Ring 101 4300087 2 Stud (Welded on Part) 101 4751400 2 Flatwasher 1/4in 101 4761400 2 Lockwasher 1/4in 101 3311401 2 Nut 1/4in-20NC
REV
A
