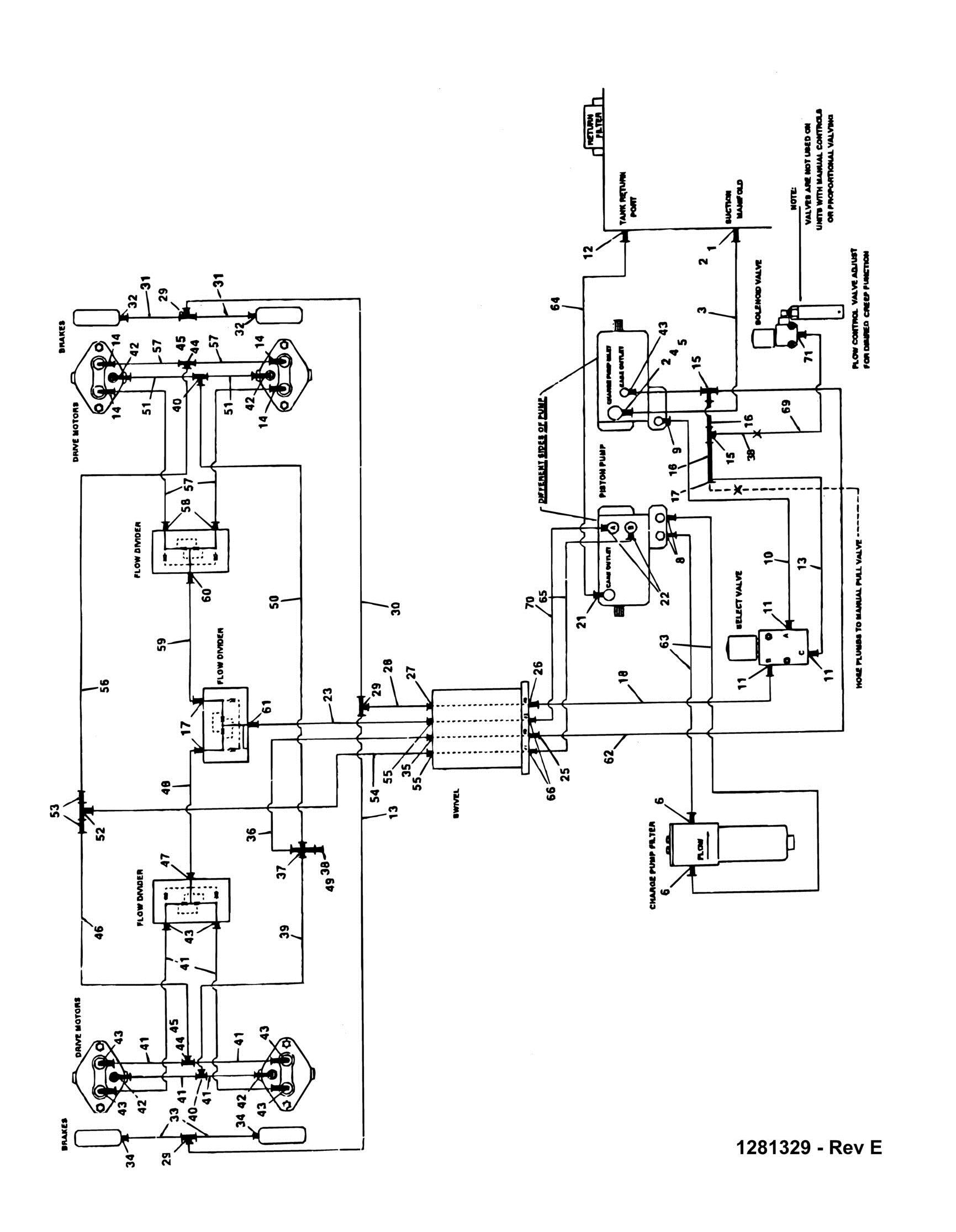

FIGURE 6-4. HYDRAULIC DIAGRAM - DRIVE (4WD

FIGURE 6-4. HYDRAULIC DIAGRAM - DRIVE (4WD)

FIGURE 6-4. HYDRAULIC DIAGRAM - DRIVE (4WD)

ITEM PART NUMBER QTY DESCRIPTION REV

2791632 Ref DEUTZ WITH STANDARD BANG-BANG CONTROLS

D 2791680 Ref DEUTZ WITH PROPORTIONAL AND HYDRAULIC CONTROLS A 2791617 Ref FORD WITH STANDARD BANG-BANG CONTROLS F 2791681 Ref FORD WITH PROPORTIONAL AND HYDRAULIC CONTROLS B 1 2210007 1 Fitting, Barbed 2 1320033 4 Clamp 3 Ref Hose Options: 3 2720335 53 in/1.35m Deutz Machines 3 2720281 64 in/1.63m Ford Machines 4 2220646 1 Fitting, 90 5 Ref Fitting Options: 5 2210014 1 Deutz Machines 5 2210003 1 Ford Machines 6 2220578 2 Fitting 8 2220408 2 Fitting, Straight 9 2220472 1 Fitting, 90 10 2750899 1 Hose 11 2220417 3 Fitting 12 2220494 1 Fitting, Tee 13 2751013 2 Hose 14 2220451 6 Fitting, Straight 15 2220385 2 Fitting, Tee 16 2220618 1 Fitting, Reducer 17 Ref Fitting Options: 17 2220605 1 Fitting, Tee (Standard Bang-Bang Controls) 17 Not Required 0 Fitting, (Proportional and Hydraulic Controls) 18 2751010 1 Hose 21 2220498 1 Fitting, 45 22 2220365 2 Fitting, 45 23 2752317 1 Hose 25 2220355 1 Fitting, 45 26 2220496 1 Fitting, 45 27 2220414 1 Fitting, Straight 28 2750902 1 Hose 29 2220504 3 Fitting, 3-Way 30 2751026 1 Hose 31 2751014 2 Hose 32 2220466 2 Fitting, 90 33 2751398 2 Hose 34 2220415 2 Fitting 35 2220345 1 Fitting, Straight 36 2750972 1 Hose 37 2220469 1 Fitting, 4-Way 38 2220619 2 Fitting, Reducer 39 2750774 1 Hose 40 2220362 2 Fitting, Tee 41 2750979 6 Hose 42 2220600 4 Fitting, Straight

ITEM PART NUMBER QTY DESCRIPTION

43 2220375 7 Fitting, Straight 44 2220481 2 Fitting, Tee 45 2220622 2 Fitting, Reducer 46 2752235 1 Hose 47 2220568 1 Fitting, 45 48 2752236 1 Hose 49 2220516 1 Fitting, Cap 50 2751483 1 Hose 51 2751517 2 Hose 52 2220363 1 Fitting, Tee 53 2220710 2 Fitting, Reducer 54 2752318 1 Hose 55 2220627 2 Fitting, 45 56 2752237 1 Hose 57 2752242 4 Hose 58 2220578 2 Fitting, 90 59 2752239 1 Hose 60 2220435 1 Fitting, Straight 61 2220377 1 Fitting, Straight 62 2750977 1 Hose 63 Ref Hose Options: 63 2751614 2 Deutz Machines 63 2751626 2 Ford Machines 64 2751635 1 Hose 65 2752319 1 Hose 66 2220348 2 Fitting, Straight 68 0100020 AR Sealant, Thread (Not Shown) 69 Ref Hose Options: 69 2752461 1 Standard Controls 69 Not Required 0 Proportional and Hydraulic Controls 71 2752319 1 Hose 72 Ref Fitting Options: 72 2220619 1 Standard Controls 72 Not Required 0 Proportional and Hydraulic Controls

REV
