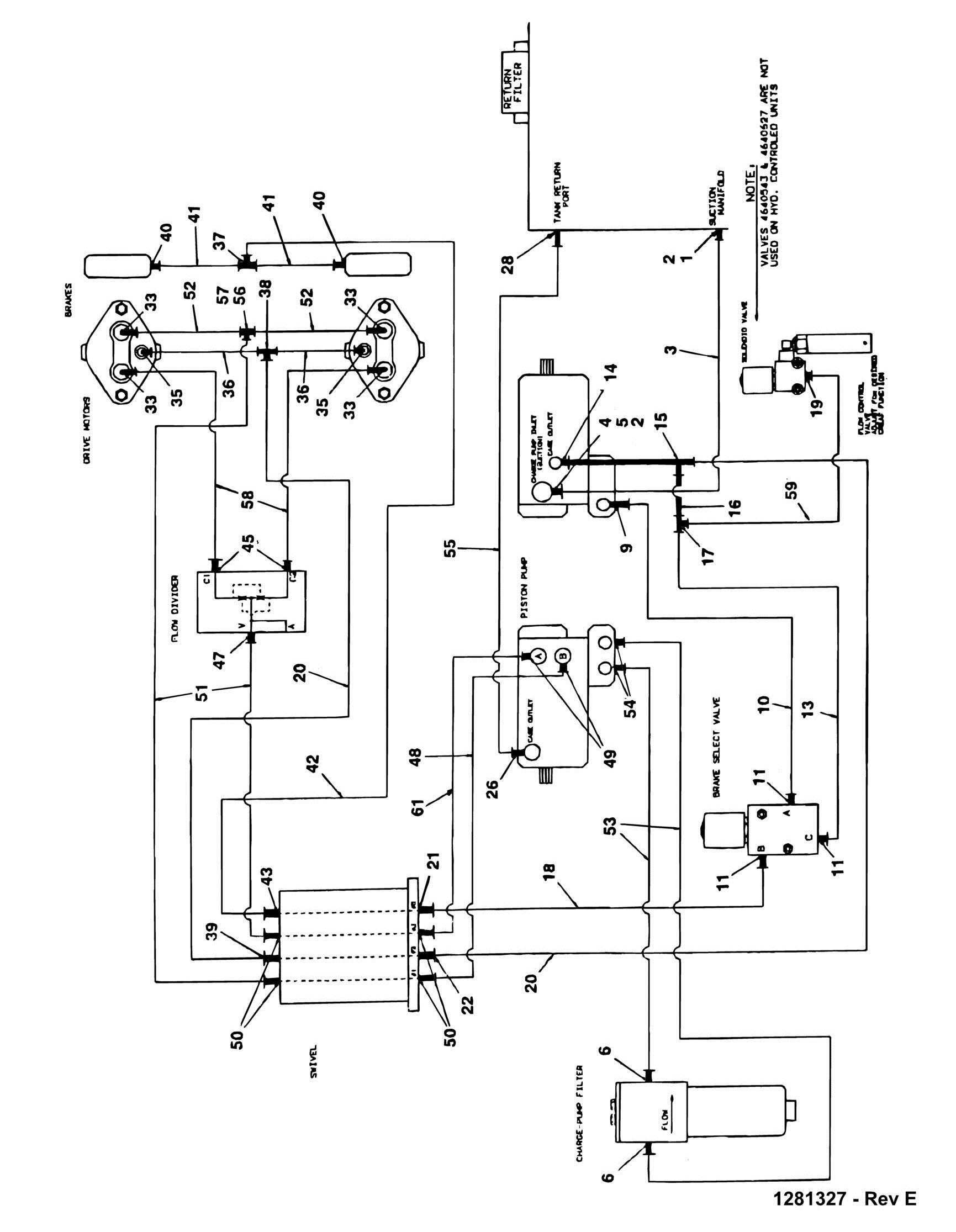

FIGURE 6-3. HYDRAULIC DIAGRAM - DRIVE (2WD
FIGURE 6-3. HYDRAULIC DIAGRAM - DRIVE (2WD)
FIGURE 6-3. HYDRAULIC DIAGRAM - DRIVE (2WD)
ITEM PART NUMBER QTY DESCRIPTION REV
2791627 Ref DEUTZ WITH STANDARD BANG-BANG CONTROLS
E 2791678 Ref DEUTZ WITH PROPORTIONAL AND HYDRAULIC CONTROLS B 2791577 Ref FORD WITH STANDARD BANG-BANG CONTROLS G 2791679 Ref FORD WITH PROPORTIONAL AND HYDRAULIC CONTROLS B 1 2210007 1 Fitting, Barbed 2 1320033 4 Clamp 3 Ref Hose Options: 3 2720335 53 in/1.35m Deutz Machines 3 2720281 64 in/1.63m Ford Machines 4 2220646 1 Fitting, 90 5 Ref Fitting Options: 5 2210014 1 Deutz Machines 5 2210003 1 Ford Machines 6 2220578 2 Fitting 9 2220472 1 Fitting, 90 10 2750899 1 Hose 11 2220417 3 Fitting 13 2751013 1 Hose 14 2220375 1 Fitting, Straight 15 2220385 1 Fitting, Tee 16 2220618 1 Fitting, Reducer 17 Ref Fitting Options: 17 2220605 1 Fitting, Tee (Standard Bang-Bang Controls) 17 Not Required 0 Fitting (Proportional and Hydraulic Controls) 18 2751010 1 Hose 19 Ref Fitting Options: 19 2220372 1 (Standard Bang-Bang Controls) 19 2220582 1 (Proportional and Hydraulic Controls) 20 2750977 2 Hose 21 2220496 1 Fitting, 45 22 2220355 1 Fitting, 45 26 2220498 1 Fitting, 45 28 2220494 1 Fitting, 90 33 2220451 4 Fitting, Straight 35 2220600 2 Fitting, Straight 36 2751517 2 Hose 37 2220504 1 Fitting, Tee 38 2220362 1 Fitting, Tee 39 2220345 1 Fitting, Straight 40 2220466 2 Fitting, 90 41 2751014 2 Hose 42 2751443 1 Hose 43 2220414 1 Fitting, Straight 44 0100020 AR Sealant, Thread (Not Shown) 45 2220465 2 Fitting, 90 47 2220377 1 Fitting, Straight 48 2752319 1 Hose 49 2220365 2 Fitting, 45
ITEM PART NUMBER QTY DESCRIPTION
50 2220348 4 Fitting, Straight 51 2752349 2 Hose 52 2752238 2 Hose 53 Ref Hose Options: 53 2751614 2 Deutz Machines 53 2751626 2 Ford Machines 54 2220408 2 Fitting, Straight 55 2751635 1 Hose 56 2220363 1 Fitting, Tee 57 2220710 2 Fitting, Reducer 58 2752242 2 Hose 59 Ref Hose Options: 59 2752461 1 Standard Controls 59 Not Required 0 Proportional and Hydraulic Controls 61 2752319 1 Hose 62 Ref Fitting Options: 62 2220619 1 Standard Controls 62 Not Required 0 Proportional and Hydraulic Controls
