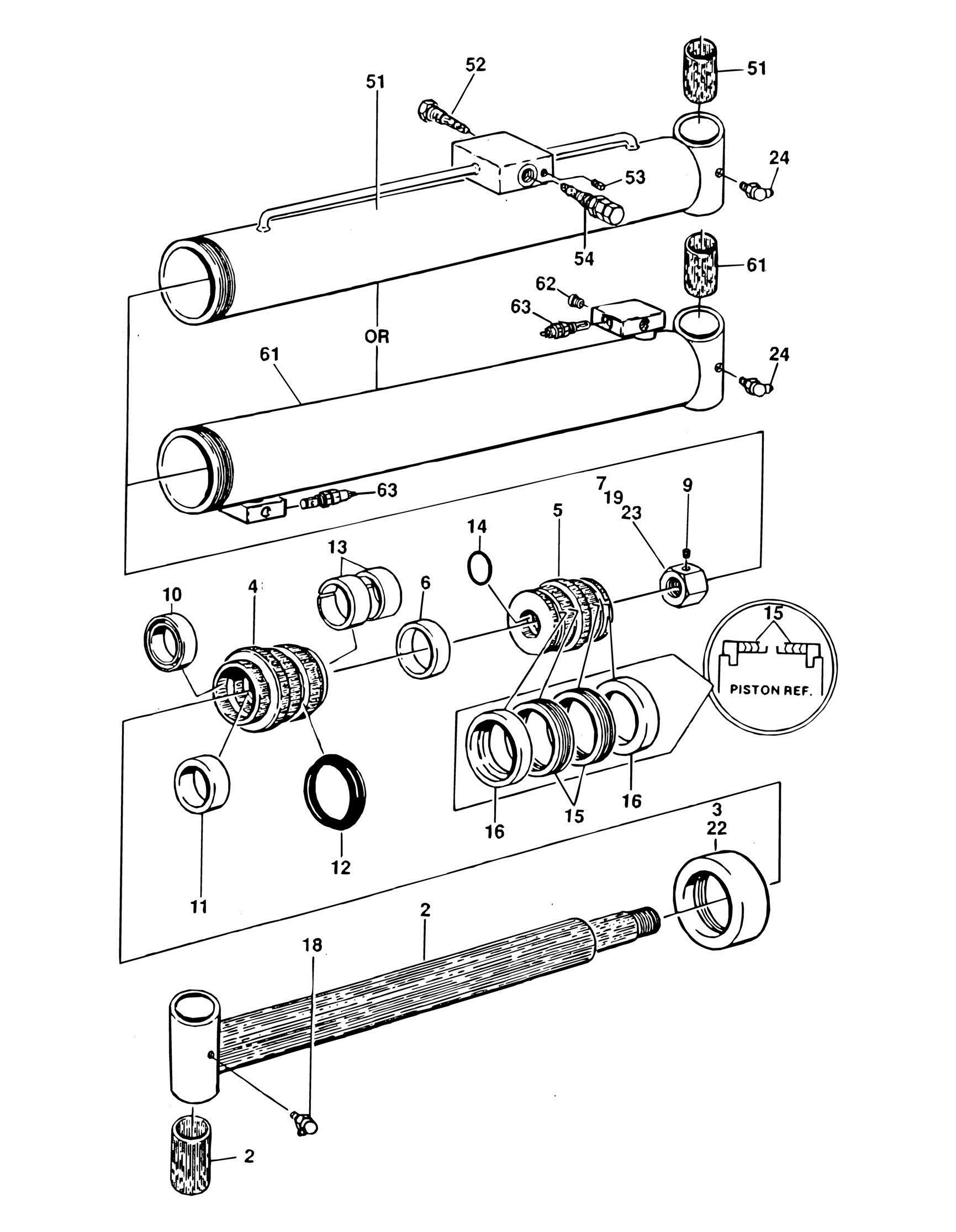

FIGURE 5-6. LIFT CYLINDER ASSEMBLY - TOWER BOOM (STANDARD PARTS
ITEM PART NUMBER QTY
DESCRIPTION
Ref LIFT CYLINDER ASSEMBLY - TOWER BOOM (STANDARD
PARTS)
2 1682086 1 Rod 2 0960946 2 Bushing, Bronze 3 1120427 1 Retainer 4 1681294 1 Head 5 3480102 1 Piston 6 4563930 1 Spacer 7 3300190 1 Nut (Prior to August 1991) 7 3300281 1 Nut, Hex (August 1991 to Present) 9 3951404 1 Setscrew 1/4in-20NC x 1/4in (Prior to August 1991) 9 3900170 1 Setscrew 3/8in-16NC x 3/8in (August 1991 to Present) 10 Kit 1 Wiper, Rod 11 Kit 1 Seal, Rod 12 Kit 1 O-Ring 13 Kit 2 Ring, Wear 14 Kit 1 O-Ring 15 Kit 2 Seal, Piston 16 Kit 2 Ring, Lock 18 2160001 1 Fitting, Grease - 90 19 0100011 AR Loctite #242 22 0100035 AR Loctite 23 0100038 AR Primer, Locking 24 2160003 1 Fitting, Grease - 45 2900340 1 Seal Kit (Includes Items 10-16) 1682085 Ref LIFT CYLINDER ASSEMBLY - TOWER BOOM USED PRIOR TO
OCTOBER 1992 (VARIABLE PARTS)
D
51 1682271 1 Barrel 51 0960946 2 Bushing, Bronze 52 4640509 1 Valve, Cartridge 52 2900792 1 Seal Kit - 4640509 Valve 53 2200201 2 Plug, Pipe 1/8in NPT 54 4640605 1 Valve, Cartridge 54 2900792 1 Seal Kit - 4640605 Valve 1682785 Ref LIFT CYLINDER ASSEMBLY - TOWER BOOM USED
OCTOBER 1992 TO PRESENT (VARIABLE PARTS)
1683528 Ref LIFT CYLINDER ASSEMBLY - TOWER BOOM USED SERVICE
REPLACEMENT ALTERNATIVE (VARIABLE PARTS)
61 1682786 1 Barrel (Original Equipment) 61 1683527 1 Barrel (Service Replacement Alternative) 61 0960946 2 Bushing, Bronze 62 2220885 1 Plug 63 4640634 1 Valve, Cartridge 63 2900770 1 Seal Kit - 4640634 Valve
