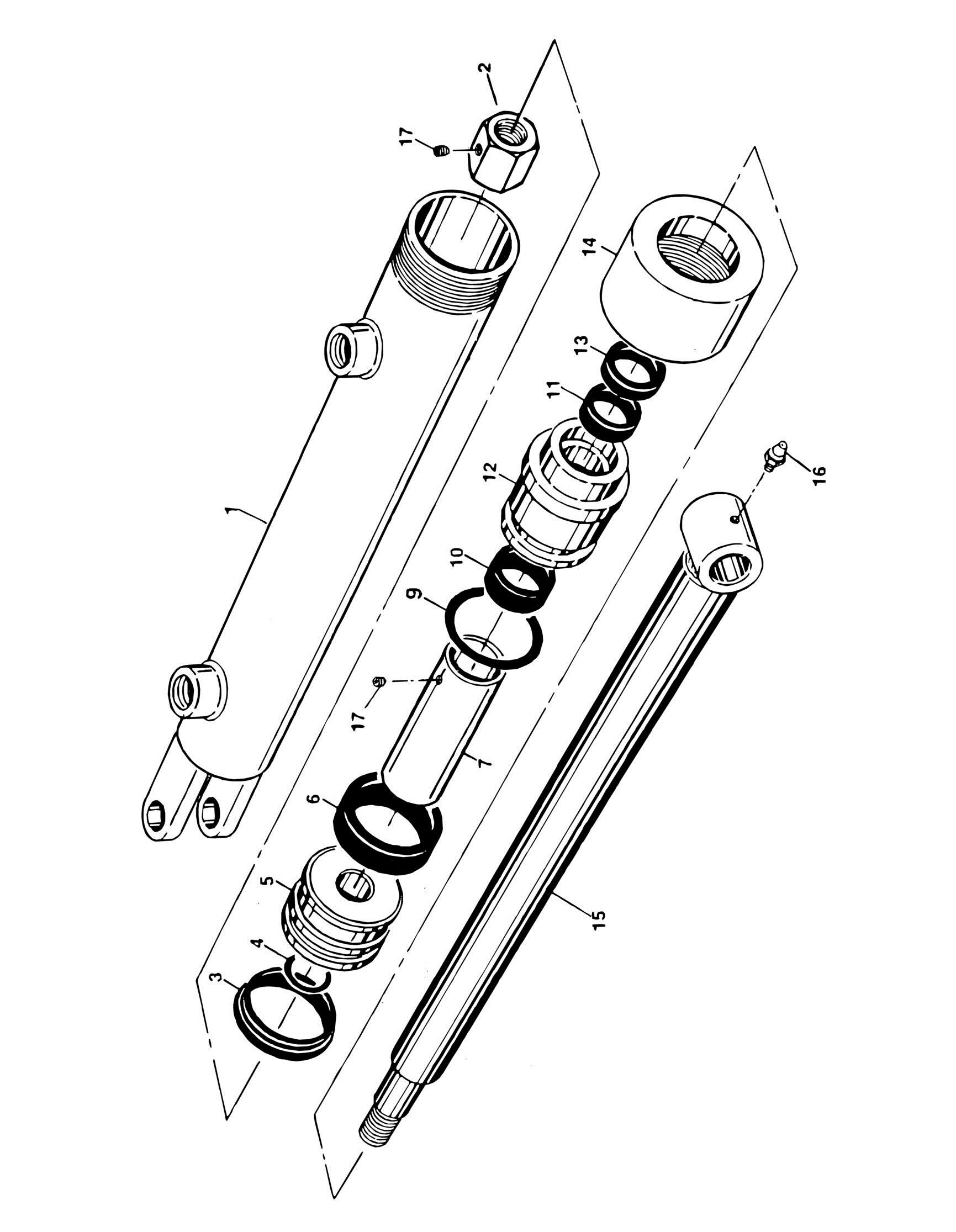

FIGURE 5-7. STEER CYLINDER ASSEMBLIES

FIGURE 5-7. STEER CYLINDER ASSEMBLIES

FIGURE 5-7. STEER CYLINDER ASSEMBLIES

ITEM PART NUMBER QTY

DESCRIPTION

1681562 Ref STEER CYLINDER ASSEMBLY (2WD FRONT AXLE) 1681555 Ref STEER CYLINDER ASSEMBLY (4WD FRONT AND ALL REAR

AXLES)

1 1681433 1 Barrel (1681562 Cylinder) 1 1681413 1 Barrel (1681555 Cylinder) 2 3300273 1 Nut, Hex (February 1991 to Present) 2 3300187 1 Nut, Special (Prior to February 1991) 2 0100011 AR Loctite #242 2 0100038 AR Primer, Locking 3 Kit 1 Seal 4 Kit 1 O-Ring 5 3480134 1 Piston 6 Kit 1 Ring, Wear 7 4562687 1 Spacer (1681562 Cylinder) 7 4562851 1 Spacer (1681555 Cylinder) 9 Kit 1 O-Ring 10 Kit 1 Ring, Wear 11 Kit 1 Seal, Rod 12 1681322 1 Head, Cylinder (1681562 Cylinder) 12 1681344 1 Head, Cylinder (1681555 Cylinder) 13 Kit 1 Wiper, Rod 14 1120108 1 Cap 15 1681435 1 Rod (1681562 Cylinder) 15 1681411 1 Rod (1681555 Cylinder) 16 2160002 1 Fitting, Grease - Straight 16 2160001 1 Fitting, Grease - 90 16 2160006 1 Fitting, Grease (4WD/4WS Only) 17 3900141 3 Setscrew 1/4in-20NC x 3/8in (Prior to February 1991) 17 3900170 1 Setscrew 3/8in-16NC x 3/8in (February 1991 to Present) 17 0100011 AR Loctite #242 2901148 1 Kit, Seal (Includes Items 3, 4, 6, 9, 10, 11 & 13) (1681562 Cylinder) 2901123 1 Kit, Seal (Includes Items 3, 4, 6, 9, 10, 11 & 13) (1681555 Cylinder)

REV

H D
