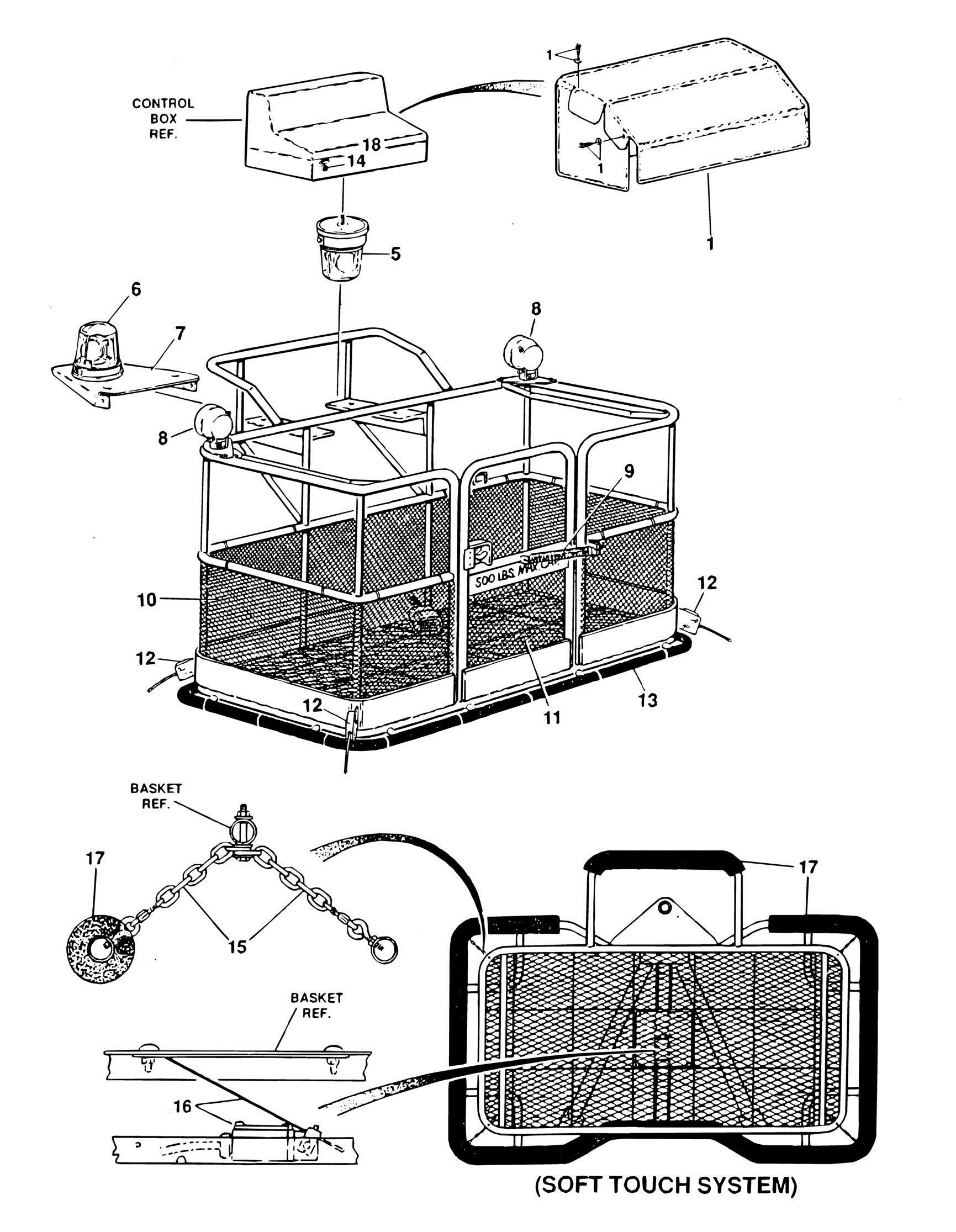

FIGURE 4-9. OPTIONAL COMMON PLATFORM MOUNTED COMPONENTS
ITEM PART NUMBER QTY DESCRIPTION REV
0252054 Ref CONSOLE BOX COVER INSTALLATION (BLACK)
2 0251203 Ref CONSOLE BOX COVER INSTALLATION (YELLOW) 2 0252848 Ref CONSOLE BOX COVER INSTALLATION (CLEAR PLEXI-GLASS) 1 1670607 1 Cover (Black) 1 1670526 1 Cover (Yellow) 1 1670641 1 Cover, Plexi-Glass (Not Shown) 1 3941406 4 Screw, Self-Tapping 1/4in-20NC 1 4751400 4 Flatwasher 1/4in 1 0901842 1 Bracket (Right Side) (Use with Plexi-Glass Cover Only) 1 0901843 1 Bracket (Left Side) (Use with Plexi-Glass Cover Only) Ref BEACON LIGHT OPTIONS 5 0252210 AR Beacon Mounted Under Console (September 1991 to Present) 3 5 0252211 1 Beacon Mounted Under Console (September 1991 to Present) 3 5 2920009 AR Beacon (Red) 5 2920018 AR Beacon (Amber) 6 0238864 AR Beacon Mounted in Front of Console (Prior to September 1991) 6 0238865 1 Beacon Mounted in Front of Console (Prior to September 1991) 6 2920009 AR Beacon (Red) 6 2920018 AR Beacon (Amber) 7 0901449 Bracket, Mounting Ref WORKLIGHT OPTIONS: 2900068 Ref WORKLIGHT (PRIOR TO NOVEMBER 1992) F
0253987 Ref WORKLIGHT (NOVEMBER 1992 TO PRESENT) C
8 2920013 2 Floodlight 8 2920111 2 Halogen Light (Uses PN 3536089 Mounting Plate) 0250143 Ref SELF-CLOSING GATE INSTALLATION A
9 4160028 1 Spring 9 0900232 1 Bracket (Door Mounted) 9 0901056 1 Bracket (Platform Mounted) 9 4220007 1 Stop, Door Ref MESH TO MIDRAIL INSTALLATIONS 0253846 Ref LOW MOUNT PLATFORM 0254130 Ref STANDARD PLATFORM 10 0480083 2 Mesh (Sides) (Low-Mount Platform) 10 0480086 2 Mesh (Sides) (Standard Platform) 11 0480084 1 Mesh (Door) Ref PLATFORM BUMPERS INSTALLATION 0251611 Ref 30IN x 48IN PLATFORM 0254178 Ref 30IN x 60IN FIXED PLATFORM 0251024 Ref 30IN x 60IN ROTATING PLATFORM 0251239 Ref 30IN x 96IN PLATFORM 12 4360305 4 Switch, Proximity - U/L Machines 12 4360215 4 Switch, Proximity - Standard Machines 12 4460521 4 Connector, Strain Relief 13 0940038 AR Padding, Bumper 14 4360274 1 Switch, Push Button (Override) 14 3251596 1 Nameplate - Override 14 3740049 1 Relay (Not Shown) Ref PLATFORM BUMPERS INSTALLATION - SOFT TOUCH
SYSTEM (CHAIN MOUNTED TYPE)
E A C B
ITEM PART NUMBER QTY
DESCRIPTION
0254728 Ref 30INx 96IN PLATFORM 0254948 Ref 30INx 72IN PLATFORM 15 0630440 8 Eyebolt 15 3010088 8 Link, Quick 15 1260136 AR Chain 16 4360057 1 Switch, Limit 16 0200048 1 Arm, Actuator 17 0940038 AR Padding (Bottom Rail) 17 1670663 1 Padding (Rail Behind Console Box) 17 1670733 1 Padding (LH Top Rail - 36in x 72in Platform) 17 1670699 1 Padding (LH Top Tail - 36in x 96in Platform) 17 1670665 4 Padding (Vertical Rails) 17 1670666 1 Padding (Gate) 17 1670734 1 Padding (RH Top Rail - 36in x 72in Platform) 17 1670700 1 Padding (RH Top Rail - 36in x 96in Platform) 17 1670735 1 Padding (LH Mid Rail - 36in x 72in Platform) 17 1670701 1 Padding (LH Mid Rail - 36in x 96in Platform) 17 1670736 1 Padding (RH Mid Rail - 36in x 72in Platform) 17 1670702 1 Padding (RH Mid Rail - 36in x 96in Platform) 17 1670737 1 Padding (Bumper Rail - 36in x 72in Platform) 17 1670703 1 Padding (Bumper Rail - 36in x 96in Platform) 18 4360274 1 Switch, Push Button 18 3252238 1 Decal - Soft Touch System
REV
B A
