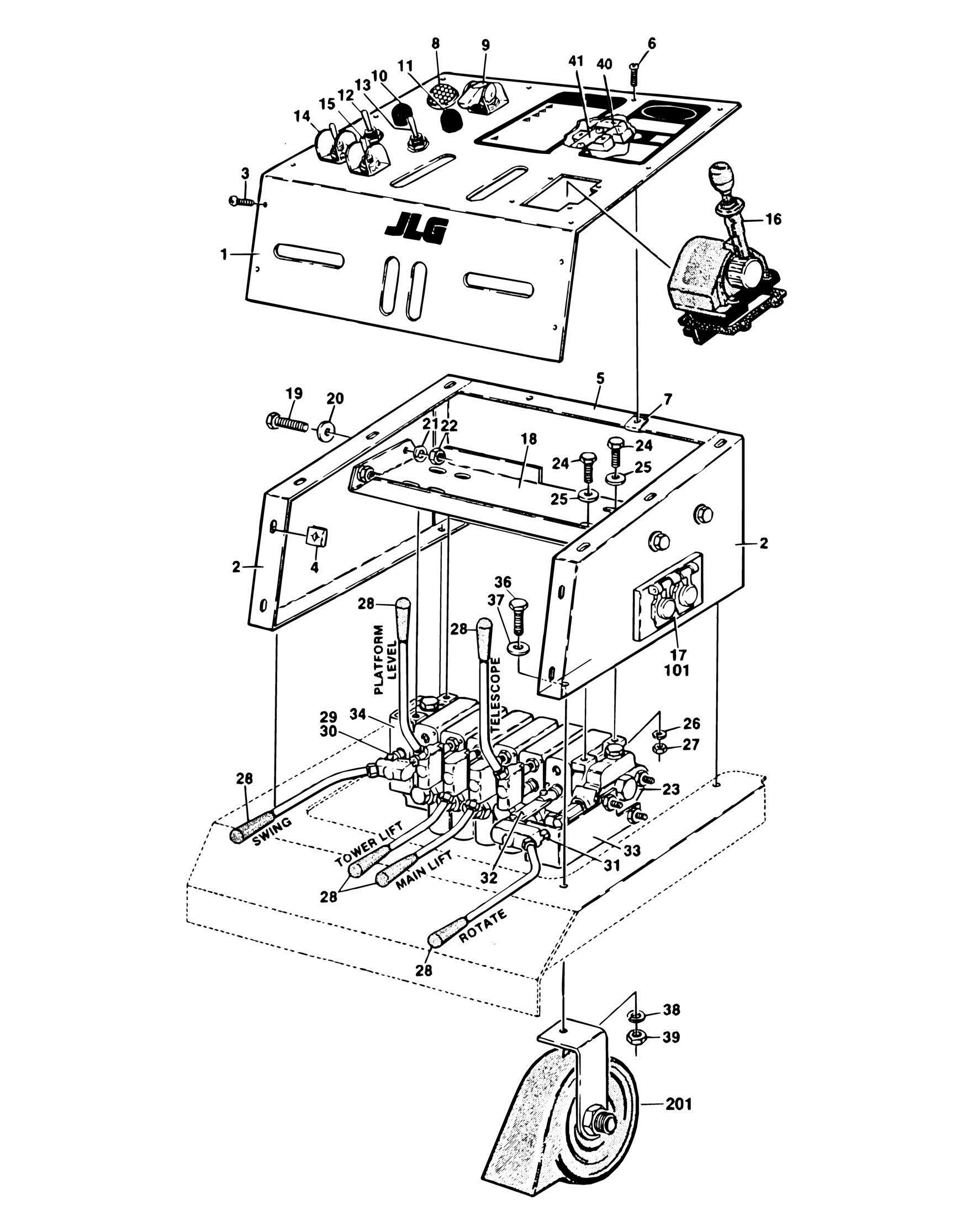

FIGURE 4-7. CONTROL BOX ASSEMBLY (HYDRAULIC CONTROLS
ITEM PART NUMBER QTY
DESCRIPTION
0250844 Ref CONTROL BOX ASSEMBLY 1 3251987 1 Lid, Control Box (Prior to May 1994) 1 3252390 1 Lid, Control Box (May 1994 to Present) 2 3534232 1 Plate, Side (LH) 2 3534233 1 Plate, Side (RH) 3 0751006 5 Screw, Machine #10-24NC x 3/4in 4 3300177 5 Nut, Tinnerman 4 4420008 AR Tape, Insulation 5 1670568 1 Plate, Back 6 0751006 4 Screw, Machine #10-24NC x 3/4in 7 3300177 4 Nut, Tinnerman 7 4420008 AR Tape, Insulation 8 2920015 1 Lamp (Out of Level) 9 4360199 1 Switch, Toggle (Emergency Stop) 9 4360141 1 Guard, Switch 9 3790012 1 O-Ring 10 4360274 1 Switch, Push Button (Horn) 10 3790015 1 O-Ring 11 4360274 1 Switch, Push Button (Start) 11 3790015 1 O-Ring 12 4360199 1 Switch, Toggle (Drive Speed) 12 3790012 1 O-Ring 13 4360199 1 Switch, Toggle (High Engine) 13 3790012 1 O-Ring 14 4360200 1 Switch, Toggle (Aux. Power) 14 4060229 1 Shield, Switch 14 3790012 1 O-Ring 15 4360198 1 Switch, Toggle (Steer) 15 4060229 1 Shield, Switch 15 3790012 1 O-Ring 16 1600116 1 Controller - PQ (Drive) 16 7003783 1 Electrical Assembly 16 2560041 1 Knob 17 4060092 1 Cover, Weather Proof 17 4460190 1 Receptacle 17 0860038 1 Box, Electrical 17 3910604 4 Screw, Machine #6-32NC x 1/2in 17 4760600 4 Lockwasher #6 17 4460071 1 Connector, Strain Relief 18 0901393 1 Bracket, Mounting - Valve 19 0641608 4 Bolt 3/8in-16NC x 1in 20 4751600 8 Flatwasher 3/8in 21 4761600 4 Lockwasher 3/8in 22 3311605 4 Locknut 3/8in-16NC 23 4640640 1 Valve Assembly (See CONTROL VALVE ASSEMBLY - GRESEN (6-STACK) (HYDRAULIC CONTROLS ONLY) for Breakdown) 24 0641612 3 Bolt 3/8in-16NC x 1 1/2in 25 4751600 3 Flatwasher 3/8in 26 4740341 3 Flatwasher, Special 27 3311605 3 Locknut 3/8in-16NC
REV
F
ITEM PART NUMBER QTY DESCRIPTION
28 2980091 6 Lever 29 3430507 1 Pin, Clevis 30 3450403 1 Pin, Cotter 1/8in x 3/4in 31 3531543 1 Plate, Link 32 3534256 1 Plate, Link 33 0901690 1 Bracket, Rotate 34 0901392 1 Bracket, Swing 36 0641608 1 Bolt 3/8in-16NC x 1in 37 4751600 1 Flatwasher 3/8in 38 4761600 1 Lockwasher 3/8in 39 3311605 1 Locknut 3/8in-16NC 40 3740049 1 Relay - SPDT 41 4360209 1 Breaker, Circuit - 20 Amp 41 3911012 2 Screw #10-24NC x 3/4in 41 4761000 2 Lockwasher #10 41 3311001 2 Nut #10-24NC Ref 110V POWER CORD INSTALLATIONS 0252405 Ref 110V POWER CORD INSTALLATIONS (PRIOR TO OCTOBER
1993)
0254438 Ref 110V POWER CORD INSTALLATIONS (OCTOBER 1993
PRESENT)
101 Ref Cable, Electrical - 12/3 Options: 101 1060300 32 ft/9.8m Cable, Electrical (Prior to October 1993) 101 1060514 70 ft/21.3m Cable, Electrical (October 1993 to Present) (was p/n 1060268)
101 4460205 1 Plug 0239762 Ref HORN INSTALLATION 201 0140001 1 Horn
REV
3
