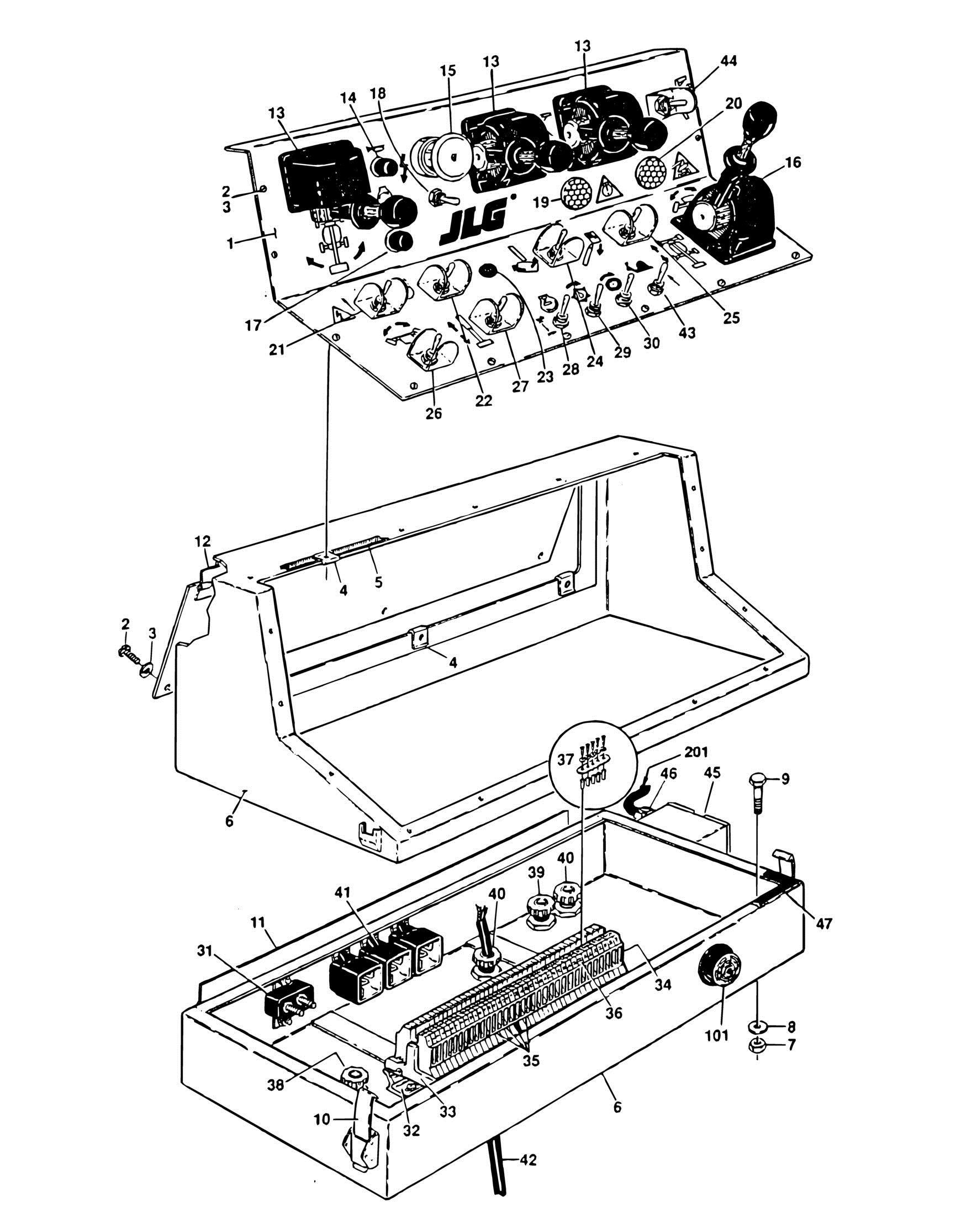

FIGURE 4-6. CONSOLE BOX ASSEMBLY (PROPORTIONAL CONTROLS - FEBRUARY 1993 TO PRESENT

FIGURE 4-6. CONSOLE BOX ASSEMBLY (PROPORTIONAL CONTROLS - FEBRUARY 1993 TO PRESENT)

FIGURE 4-6. CONSOLE BOX ASSEMBLY (PROPORTIONAL CONTROLS - FEBRUARY 1993 TO PRESENT)

ITEM PART NUMBER QTY

DESCRIPTION

Ref CONSOLE BOX ASSEMBLIES 0860839 Ref CONSOLE BOX ASSEMBLY - 2WS WITH CREEP 0860850 Ref CONSOLE BOX ASSEMBLY - 2WS WITH THUMB STEER AND

CREEP

0860840 Ref CONSOLE BOX ASSEMBLY - 4WS WITH CREEP 1 3252224 1 Lid (February 1993 to May 1994) 1 3252382 1 Lid (May 1994 to January 1995) 1 3538392 1 Plate, Lid (January 1995 to Present) 1 1702402 1 Decal (January 1995 to Present) 2 0751006 18 Screw, Pan Head #10-24NC x 3/4in 3 4740120 18 Washer, Nylon 4 3300177 18 Nut, Tinnerman 5 4420037 14 ft/2m Tape, Insulation 6 0860538 1 Box, Control (Includes Items 10,11 & 12) 7 3311505 4 Nut 5/16in-18NC 8 4751500 4 Flatwasher 5/16in 9 0641508 4 Bolt 5/16in-18NC x 1in 10 2940052 2 Latch 11 2600132 1 Hinge (Top to Bottom) 12 2600105 1 Hinge (Access Door) 13 1600126 3 Controller, PQ (Swing and Lift) (Machines Without Steer Switch in Drive Controller) 13 7003782 3 Electrical Assembly 13 1600141 3 Controller, PQ (Swing and Lift) (Machines With Steer Switch in Drive Controller) 13 7011907 1 Electrical Assembly 13 7003751 1 Potentiometer 13 2560112 AR Knob 14 4360274 1 Switch, Push Button (Horn) 14 3790015 1 O-Ring 15 4360289 1 Switch, Push-Pull (Emergency Stop) 15 7012611 1 Mushroom Head 15 7012612 1 Boot 15 4360282 1 Block, Contact - 2 P.N.C. 16 1600116 1 Controller, PQ (Drive) (2WS Without Steer Switch in Drive Controller) 16 7003783 1 Electrical Assembly 16 1600140 1 Controller, PQ (Drive) (2WS With Steer Switch in Drive Controller) 16 7011903 1 Electrical Assembly 16 7003789 2 Switch, Roller 16 1600135 1 Controller, PQ (Drive) (4WS Without Steer Switch in Drive Controller) 16 7003797 1 Electrical Assembly 16 7003789 2 Switch, Roller 16 2560112 1 Knob 17 4360274 1 Switch, Push Button (Start) 17 3790015 1 O-Ring 18 3520026 1 Plug, Hole (Standard) 18 4360199 1 Switch, Toggle (Glow Plug - Optional)

REV

5 6

6

ITEM PART NUMBER QTY

DESCRIPTION

18 3790012 1 O-Ring (Glow Plug - Option) 18 3251872 1 Nameplate (Glow Plug Option) 19 2920015 1 Lamp (Engine Distress) (Optional) 20 2920015 1 Lamp (Chassis Out of Level) 21 4360200 1 Switch, Toggle (Auxiliary Power) 21 3790012 1 O-Ring 21 4060229 1 Shield 22 4360199 1 Switch, Toggle (Lights) (Optional) 22 3790012 1 O-Ring 23 3520028 1 Plug, Hole 24 4360202 1 Switch, Toggle (Rotate) (Optional) 24 4060229 1 Shield 24 3790012 1 O-Ring 25 4360202 1 Switch, Toggle (Level) 25 4060229 1 Shield 25 3790012 1 O-Ring 26 4360202 1 Switch, Toggle (Steer) (Machines Without Steer Switch in Drive Controller Only) 26 4060229 1 Shield 26 3790012 1 O-Ring 27 4360202 1 Switch, Toggle (Main Tele) 27 4060229 1 Shield 27 3790012 1 O-Ring 28 4360199 1 Switch, Toggle (Engine Speed) 28 3790012 1 O-Ring 29 4360199 1 Switch, Toggle (Pump Volume) 29 3790012 1 O-Ring 30 4360199 1 Switch, Toggle (Wheel Speed) 30 3790012 1 O-Ring 31 4360209 1 Breaker, Circuit - 20 Amp 32 3640500 1 Rail, Mounting 32 3910608 2 Screw, Round Head #6-32NC x 1/2in 32 4750600 2 Flatwasher #6 32 4760600 2 Lockwasher #6 32 3310601 2 Nut #6-32NC 33 4460299 2 Stop, Terminal Strip 34 4460300 1 Barrier, Terminal End 35 4460298 AR Block, Terminal 36 4460301 1 Strip, Marking 37 4460311 1 Bar, Buss 37 4460305 3 Screw, Terminal Block 37 4460306 3 Washer, Terminal Block 37 4460307 3 Sleeve, Terminal Block 38 4460052 1 Connector 38 0960239 1 Bushing, Insulating 38 3300047 1 Nut, Conduit 39 4460244 1 Connector 39 0960238 1 Bushing, Insulating 39 3300048 1 Nut, Conduit 40 4460071 2 Connector 40 0960238 2 Bushing, Insulating 40 3300048 2 Nut, Conduit

REV

ITEM PART NUMBER QTY DESCRIPTION

41 3740049 AR Relay - SPDT 41 3311001 1 Nut #10-24NC 41 4761000 1 Lockwasher #10 42 1060309 2.4 m Cable, Control - 12/4 (To Footswitch) 43 4360199 1 Switch, Toggle (Creep) 43 4060229 1 Shield 43 3790012 1 O-Ring 44 4360202 1 Switch, Toggle (Tower Tele) 44 4060229 1 Shield 44 3790012 1 O-Ring 45 0860038 1 Box, Receptacle 45 4460190 1 Receptacle - 110VAC (Consult Factory for Optional Voltages) 45 4060092 1 Cover, Weatherproof - 100VAC (Consult Factory for Optional Voltages) 45 3900294 4 Screw Self Drilling #10-16NC x 1in 45 4751000 4 Flatwasher #10 45 4761000 4 Lockwasher #10 46 4460071 1 Connector, Strain Relief 47 4420008 6 ft/1.8m Tape, Insulation 0253077 Ref TILT ALARM INSTALLATION A

101 0140026 1 Alarm 102 1540002 1 Capacitor Ref 110V POWER CORD INSTALLATIONS 0252405 Ref 110V POWER CORD INSTALLATIONS (PRIOR TO OCTOBER

1993)

0254438 Ref 110V POWER CORD INSTALLATIONS (OCTOBER 1993

PRESENT)

201 Ref Cable, Electrical - 12/3 Options: 201 1060300 32 ft/9.8m Cable, Electrical (Prior to October 1993) 201 1060514 70 ft/21.3m Cable, Electrical (October 1993 to Present) (was p/n 1060268)

201 4460205 1 Plug

REV

3
