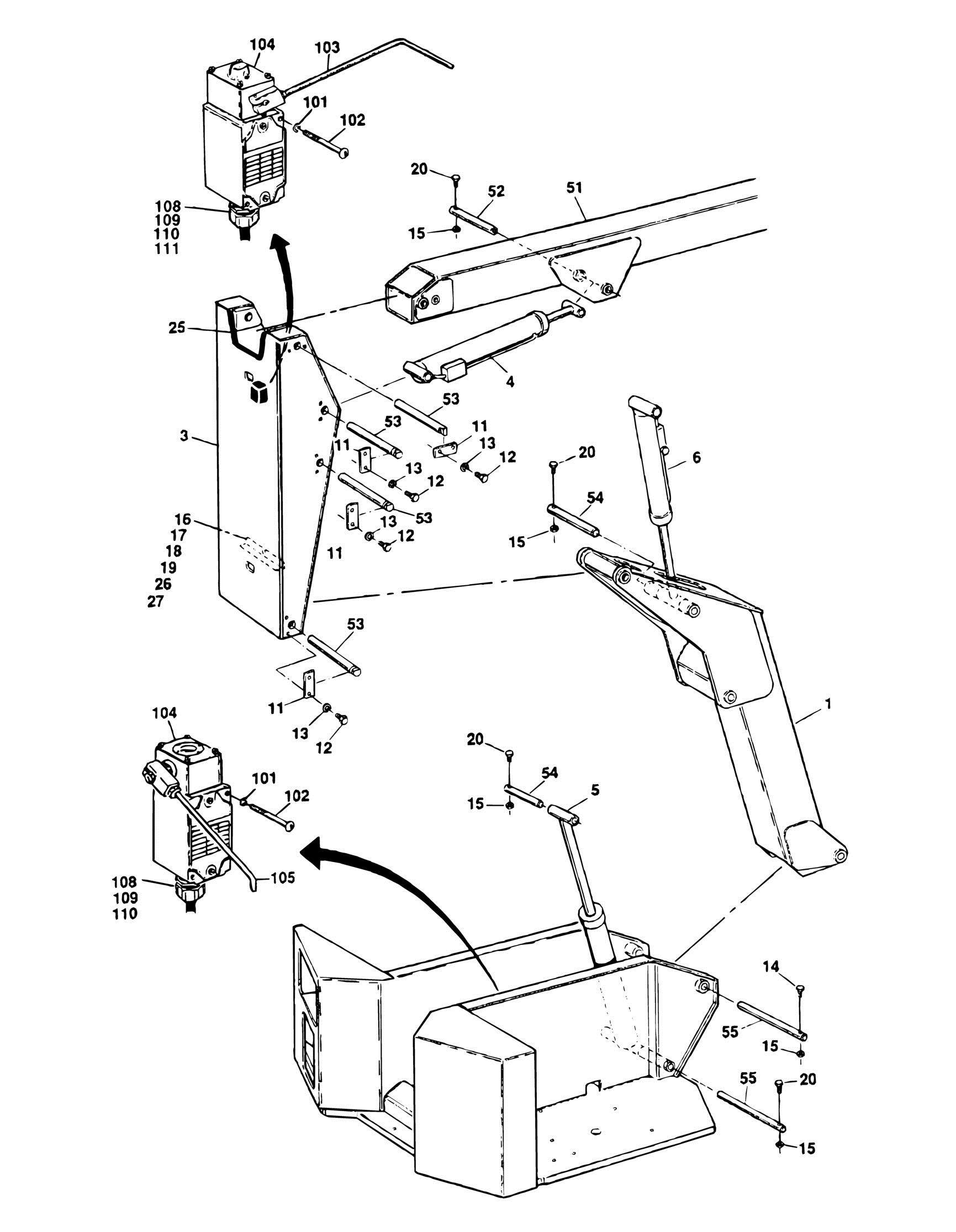

FIGURE 3-1. BOOMS AND LIMIT SWITCHES INSTALLATIONS
ITEM PART NUMBER QTY
DESCRIPTION
Ref BOOM INSTALLATION (STANDARD PARTS) 1 0800618 1 Boom, Tower 1 0960827 4 Bushing, Bronze 3 Ref Upright Weldment Options: 3 4843330 1 Upright (Prior to October 1992) 3 4844453 1 Upright (October 1992 to Present) 4 Ref Main Lift Cylinder Assembly Options (See CYLINDER SECTION for Breakdown): 4 1682124 1 Cylinder (Prior to October 1992) 4 1682799 1 Cylinder - 4 ft, 5 ft & 6 ft (1.2m, 1.5m, 1.8m) 4 Ref Wide Platform (October 1992 to Present) 4 9983275 1 Cylinder - 8 ft (2.4m) Wide Platform (Prior to October 1992) 4 9983596 1 Cylinder - 8 ft (2.4m) Wide Platform (October 1992 to Present) 5 Ref Tower Lift Cylinder Assembly Options (See CYLINDER SECTION for Breakdown): 5 1682085 1 Cylinder (Prior to October 1992) 5 1682785 1 Cylinder (October 1992 to Present) 5 1683528 1 Cylinder (Service Replacement Alternative) 6 Ref Upright Level Cylinder Assembly Options (See CYLINDER SECTION for Breakdown): 6 1682255 1 Cylinder (Prior to October 1992) 6 1683524 1 Cylinder (October 1992 to Present) (was p/n 1682796) 11 3532054 4 Plate, Retainer 12 0641508 8 Bolt 5/16in-18NC x 1in 13 4761500 8 Lockwasher 5/16in 14 0641528 1 Bolt 5/16in-18NC x 3 1/2in 15 3311505 5 Locknut 5/16in-19NC 16 0181565 1 Angle, Hose Retainer 17 4300033 2 Stud (Welded on Part) 18 3311501 2 Nut 5/16in-18NC 19 4761600 2 Lockwasher 3/8in 20 0641522 4 Bolt 5/16in-18NC x 2 3/4in 25 4060808 6 ft/1.8m Flex-Guard 26 2720058 6 in/15cm Hose 27 4420038 1 ft/30.5cm Rubber, Self-Stick Ref BOOM INSTALLATION (VARIABLE PARTS): 0239965 Ref DOMESTIC STANDARD BANG-BANG AND PROPORTIONAL
CONTROLS WITH 4 FT, 5 FT & 6 FT (1.2m, 1.5m & 1.8m) WIDE PLATFORMS REV
D
J
0254222 Ref DOMESTIC STANDARD BANG-BANG AND PROPORTIONAL
CONTROLS WITH 8 FT, (2.4m) WIDE PLATFORM
B
0252331 Ref CSA BANG-BANG AND PROPORTIONAL CONTROLS D 0257467 Ref STANDARD BANG-BANG AND PROPORTIONAL CONTROLS
WITH WIDE POWER TRACK
3 0250763 Ref DOMESTIC HYDRAULIC CONTROLS O 0252332 Ref CSA HYDRAULIC CONTROLS D 51 Ref Main Boom Assembly Options (See MAIN BOOM ASSEMBLY for Breakdown): 51 0800623 1 Domestic/CSA - Standard Bang-Bang 51 0800676 1 Domestic/CSA - Standard Bang-Bang W/Wide Power Track and Hydraulic Controls
ITEM PART NUMBER QTY
DESCRIPTION
51 0800676 1 Standard Bang-Bang W/Wide Power Track 52 Ref Pin Options: 52 3421780 1 Standard 52 3421994 1 CSA 53 Ref Pin Options: 53 3421686 4 Standard 53 3422007 4 CSA 54 Ref Pin Options: 54 3421687 2 Standard 54 3422008 2 CSA 55 Ref Pin Options: 55 3421688 2 Standard 55 3422009 2 CSA 0250154 Ref BOOM LIMIT SWITCHES INSTALLATION (ABOVE
HORIZONTAL)
101 4761000 4 Lockwasher #10 102 0721014 4 Screw, Machine #10-24NC x 1 3/4in 103 0200333 1 Arm 104 4360057 2 Switch, Limit 105 4360056 1 Lever 108 4460049 2 Connector, Strain Relief 109 3300047 2 Locknut, Conduit 110 0960239 2 Bushing 111 1060300 30 ft Cable, Electrical 16/3 (August 1995 to Present)
