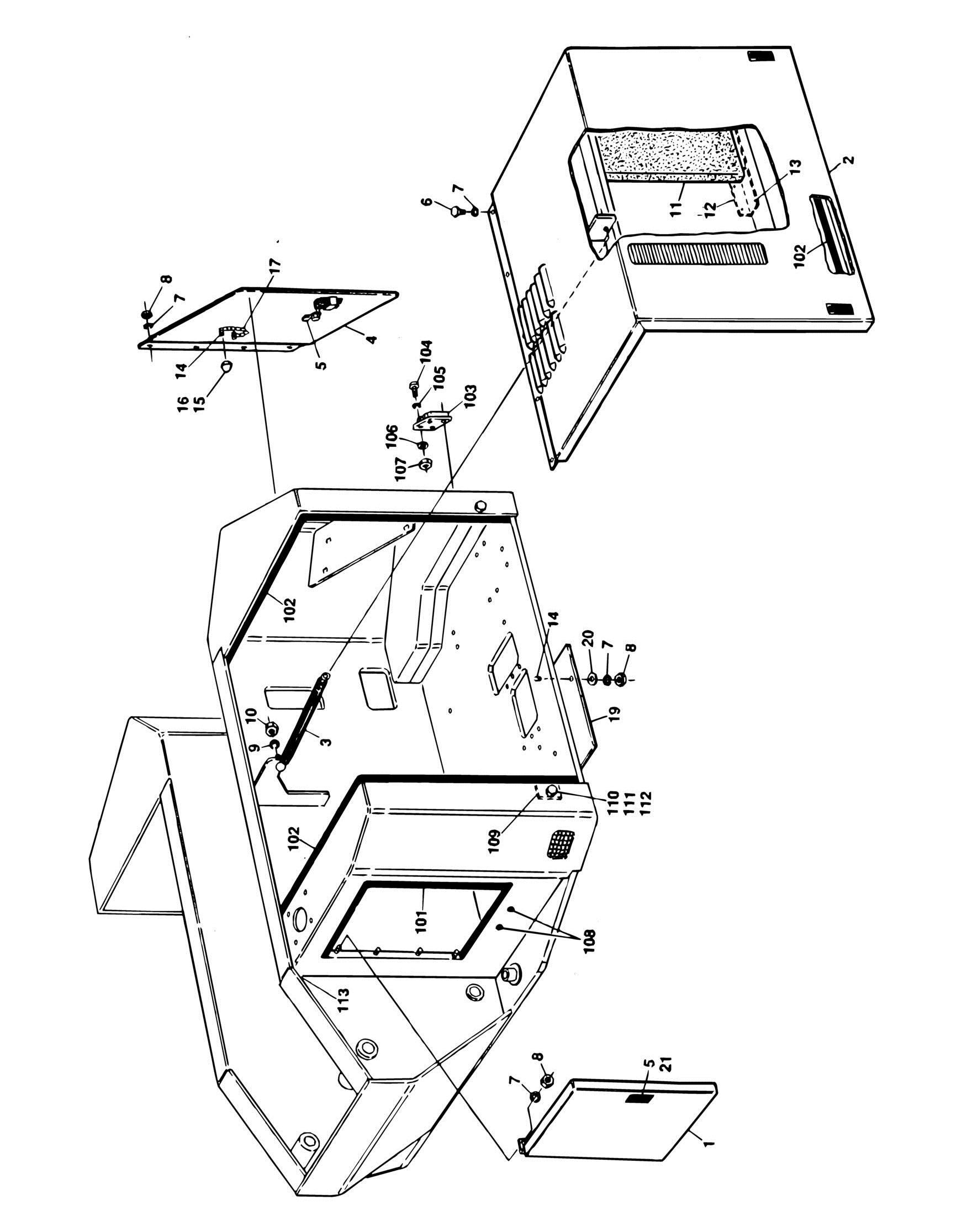

FIGURE 2-32. HOODS INSTALLATIONS (WITH NOISE REDUCTION OPTION

FIGURE 2-32. HOODS INSTALLATIONS (WITH NOISE REDUCTION OPTION)

FIGURE 2-32. HOODS INSTALLATIONS (WITH NOISE REDUCTION OPTION)

ITEM PART NUMBER QTY DESCRIPTION REV

0252223 Ref HOODS INSTALLATION - DEUTZ OCTOBER 1991 TO PRESENT 2 1 4843945 1 Door 2 4843944 1 Hood Ref Note: Replacement Decals Must be Ordered Separately - See

DECALS SECTION.

3 4160105 1 Spring, Gas 4 4843948 1 Door, Ground Control 5 Ref Latch Options: 5 2940042 4 Latch (Prior to SN 33711) 5 2940113 4 Latch (SN 33711 to Present) 6 3941406 5 Screw, Self-Tapping 1/4in x 3/4in 7 4761400 17 Lockwasher 1/4in 8 3311401 12 Nut 1/4in-20NC 9 4761500 2 Lockwasher 5/16in 10 3311501 2 Nut 5/16in-18NC 11 2820043 1 Foam, Acoustical 12 3535519 1 Plate, Cover 13 2820012 8 Rivet 14 4300031 6 Stud (Welded on Part) 15 0100011 AR Loctite #242 (Not Shown) 16 3300151 2 Nut, Acorn 1/4in-20NC 17 1260017 6 in/21cm Chain 19 1670609 1 Cover 20 4751400 4 Flatwasher 1/4in 21 2940070 1 Pawl, Latch (Prior to SN 33711) 0252231 Ref HARDWARE INSTALLATION C 101 3960417 10 ft/3m Seal, Door 102 3960418 14 ft/4.3m Seal 103 1670612 1 Cover, Access 104 0721008 4 Screw, Machine #10-24NC x 1in 105 4761000 4 Lockwasher #10 106 4751000 4 Flatwasher #10 107 3311001 4 Nut #10-24NC 108 3520030 2 Plug, Hole 109 4060832 2 Shield, Seal 110 0641404 2 Bolt 1/4in-20NC x 1/2in 111 4751400 2 Flatwasher 1/4in 112 3311405 2 Locknut 1/4in-20NC 113 0100040 AR Sealant
