APRIL 1993 TO PRESENT AND FORD POWER BUILT FEBRUARY 1993 TO PRESENT

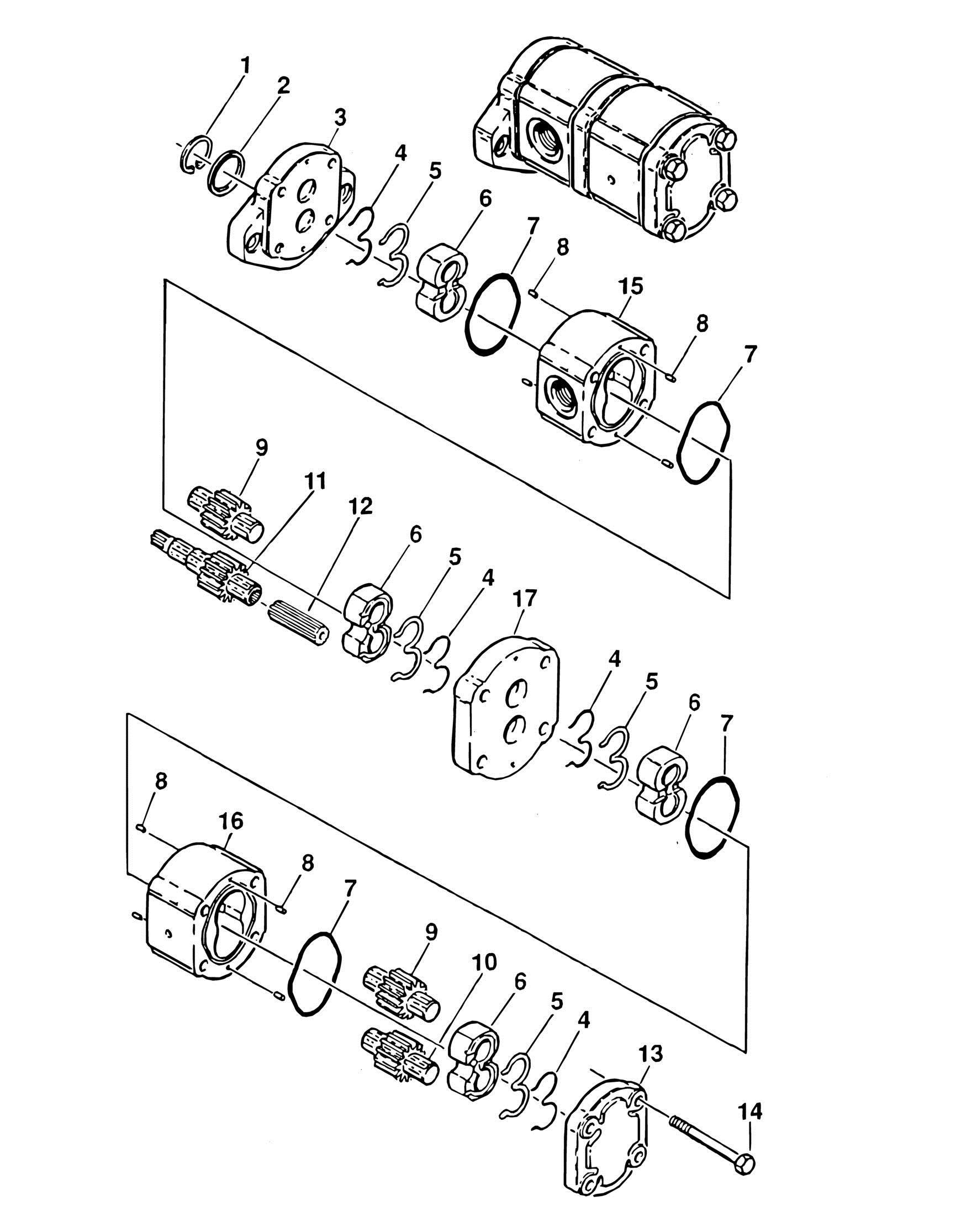

FIGURE 2-25. PUMP ASSEMBLY - BARNES (USED ON HYDRAULIC CONTROLS MACHINES WITH DEUTZ POWER BUILT APRIL 1993 TO PRESENT AND FORD POWER BUILT FEBRUARY 1993 TO PRESENT

FIGURE 2-25. PUMP ASSEMBLY - BARNES (USED ON HYDRAULIC CONTROLS MACHINES WITH DEUTZ POWER BUILT APRIL 1993 TO PRESENT AND FORD POWER BUILT FEBRUARY 1993 TO PRESENT

ITEM PART NUMBER QTY

DESCRIPTION

3600202 Ref PUMP ASSEMBLY - BARNES 1 7010955 1 Ring, Retaining 2 Kit 1 Seal, Shaft 3 7010956 1 Flange, Mounting 4 Kit 4 Ring, Backup 5 Kit 4 E-Seal 6 7010957 4 Bearing 7 Kit 4 O-Ring 8 7010959 8 Pin, Dowel 9 7010983 2 Gear, Idler (Section 1) 10 7010984 1 Gear, Idler (Section 2) 11 7010985 1 Gear, Drive 12 7010965 1 Coupling 13 7010960 1 Cover, End 14 7010986 4 Bolt 15 7010987 1 Housing (Section 1) 16 7010988 1 Housing (Section 2) 17 7010970 1 Plate, Distance (Section 2) 7010962 1 Seal Kit (Includes Items 2, 4, 5 & 7)

REV
