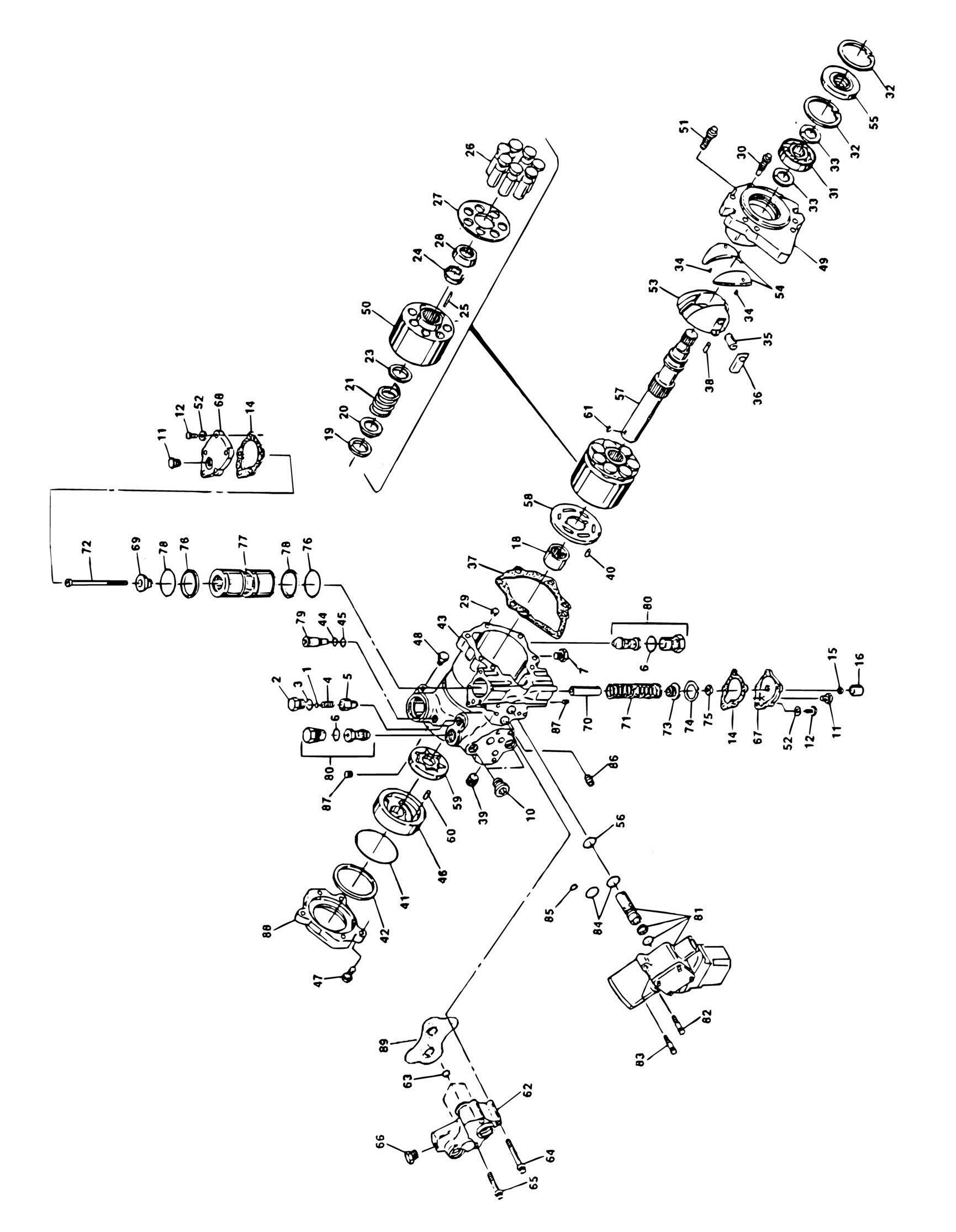

FIGURE 2-21. PUMP ASSEMBLY - SUNSTRAND
FIGURE 2-21. PUMP ASSEMBLY - SUNSTRAND
FIGURE 2-21. PUMP ASSEMBLY - SUNSTRAND
ITEM PART NUMBER QTY
DESCRIPTION
Ref PISTON PUMP ASSEMBLIES 3600164 Ref 13 Tooth Pump Spline (Prior to SN 29318) 3600260 Ref 15 Tooth Pump Spline (SN 29318 through 69000) 1 7007413 1 Shim Kit 2 7007414 1 Plug 3 Kit 1 O-Ring 4 7007416 1 Spring, Relief Valve 5 7007417 1 Valve, Relief 6 Kit 2 O-Ring 7 7007419 2 Plug 10 7007420 2 Plug 11 7007208 2 Plug 12 7007421 10 Screw 14 Kit 2 Gasket, Servo Cover 15 7007423 1 Nut, Special 16 7007424 1 Cover, Adjustment 18 7007425 1 Bearing, Needle 19 Kit 1 Ring, Retaining 20 Kit 1 Washer 21 Kit 1 Spring 23 Kit 1 Washer 24 Kit 1 Retainer 25 Kit 3 Pin, Slipper Holddown 26 Kit 7 Piston Assembly 27 Kit 1 Retainer, Slipper 28 Kit 1 Guide, Retainer 29 7007435 1 Pin, Spring 30 7007436 1 Screw, 12 Point Head 31 7007437 1 Bearing, Ball 32 7007438 2 Ring, Retainer 33 7007439 2 Ring 34 7007440 2 Pin, Spring 35 7007441 1 Handle, Pin 36 7007442 1 Sleeve, Bearing 37 Kit 1 Gasket, Front Cover 38 7007444 1 Pin 39 7007445 1 Plug, Expansion 40 Kit 1 Pin 41 Kit 1 O-Ring 42 Kit 1 Ring, Load Temper 43 7007449 1 Housing, Pump 44 Kit 1 Ring, Back-up 45 Kit 1 O-Ring 46 Kit 1 Cover, Gerotor 47 7007453 3 Bolt, Hex 48 7007208 1 Plug 49 7007454 1 Cover, Front 50 Kit 1 Block, Cylinder 51 7007456 6 Screw 52 7001438 10 Washer
REV
A
ITEM PART NUMBER QTY DESCRIPTION
53 Kit 1 Swashplate 54 7007458 1 Journal, Bearing 55 Kit 1 Seal, Lip 56 Kit 1 O-Ring 57 Ref Shaft, Main Pump Options: 57 7007461 1 13 Tooth Spline (Prior to SN 29318) 57 7010121 1 15 Tooth Spline (SN 29318 through 69000) 58 7021214 1 Plate, Valve 59 7007463 1 Gerotor Assembly 60 Kit 1 Pin 61 Kit 1 Key, Woodruff 62 7007466 1 Adaptor, Remote Filtration (Without By-Pass) 63 Kit 3 O-Ring 64 7007468 2 Screw 65 7007469 2 Screw 66 7007470 1 Plug 67 7007471 1 Cover, Servo (With Adjuster) 67 7007490 2 Stop, Servo (Not Shown) 67 7007491 2 Nut, Special (Not Shown) 67 7007492 2 Ring, External (Not Shown) 68 7007482 1 Cover, Servo (Without Adjuster) 69 7007483 1 Guide, Spring 70 7007484 1 Stop, Servo 71 7007485 1 Spring 72 7007486 1 Screw 73 7007487 1 Guide, Spring 74 7007488 1 Ring, Retaining 75 7007499 1 Locknut 76 Kit 2 Ring, Piston 77 7007494 1 Piston, Servo 78 Kit 2 O-Ring 79 7007472 1 Valve, Bypass 80 7010122 2 Valve, Pressure Relief (Includes Item 6) (was p/n 7007473) 81 7007474 1 Control, Dual Oil-Filled 81 7007496 1 Coil Assembly (Pilot) 81 7007497 1 Plug (Pump) 81 7007498 1 Plug (Valve Harness) 82 7007478 2 Screw 83 7001498 2 Screw 84 Kit 2 O-Ring 85 Kit 1 O-Ring 86 7007475 1 Plug, Orifice/Screen (.156) 87 7007477 2 Plug, Orifice (.37) 88 7007476 1 Adapter, Auxiliary Pump 89 7010120 1 Spacer/Gasket 2900752 1 Seal Kit - Complete (Includes Items 3, 6, 14, 37, 41, 42, 44, 45, 55, 56, 63, 76, 78, 84 & 85) 7007412 1 Seal Kit - Servo Piston (Includes Items 76 & 78) 2900826 1 Charge Pump Kit (Includes Items 41, 42, 46, 59, 60 & 61) 2900827 1 Cylinder Block Kit (Includes Items 19-28, 40-50, 53, 55 & 58)
