PRIOR TO OCTOBER 1991 FIGURE 2-25. PUMP ASSEMBLY - BARNES (USED ON HYDRAULIC CONTROLS MACHINES WITH DEUTZ POWER BUILT

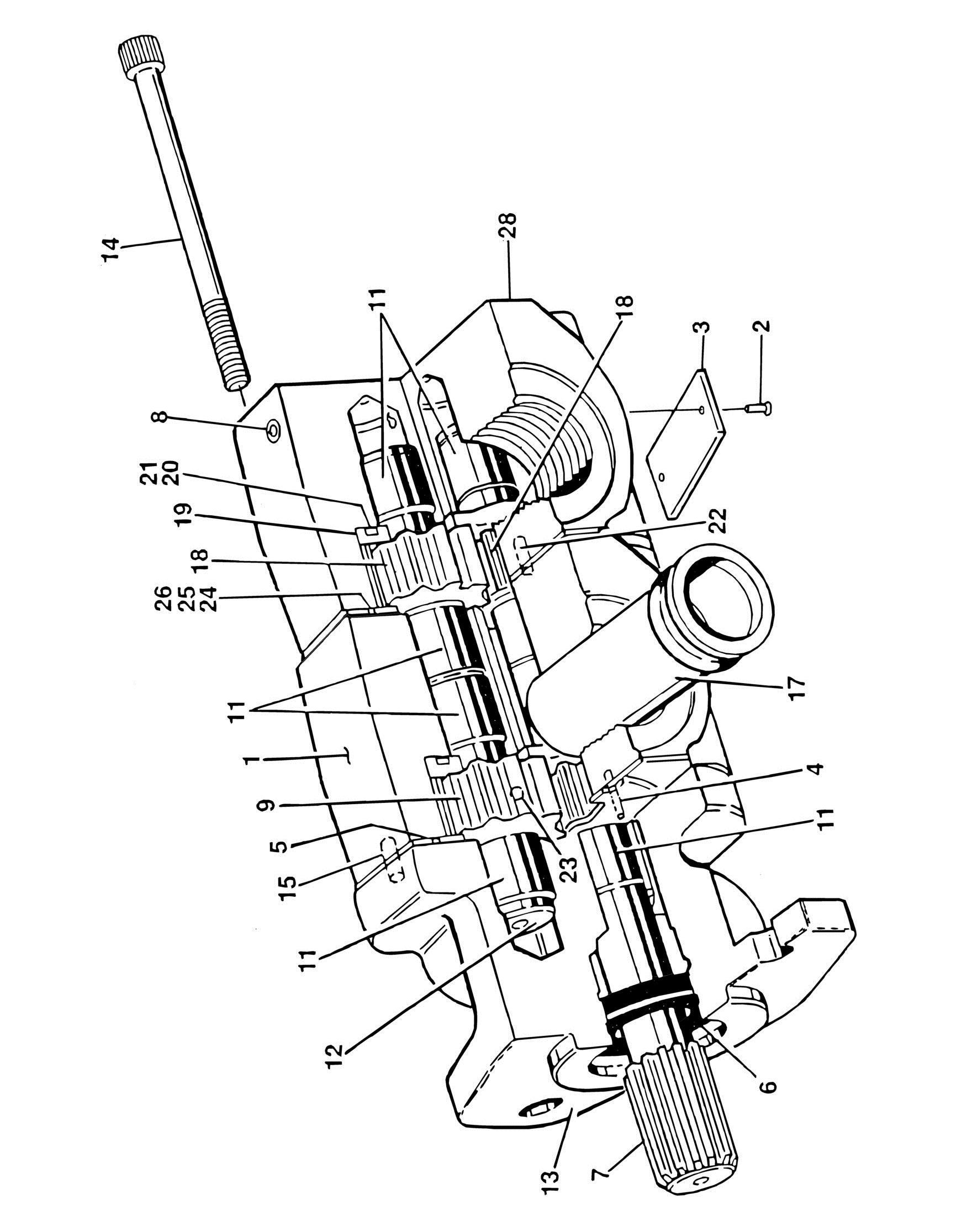

FIGURE 2-24. PUMP ASSEMBLY - BARNES (USED ON HYDRAULIC CONTROL MACHINES WITH DEUTZ POWER BUILT PRIOR TO OCTOBER 1991)

FIGURE 2-24. PUMP ASSEMBLY - BARNES (USED ON HYDRAULIC CONTROL MACHINES WITH DEUTZ POWER BUILT PRIOR TO OCTOBER 1991)

ITEM PART NUMBER QTY

DESCRIPTION

3600176 Ref PUMP ASSEMBLY - BARNES 1 Not Serviced 1 Housing, Gear - Center 2 7004435 2 Rivet, Tag 3 Not Serviced 1 Nameplate 4 7010901 1 Pin, Shear (1in Length) 5 7010902 4 Ring, Crescent 6 Kit 1 Seal, Oil 7 Not Serviced 1 Shaft, Drive 8 7010905 1 Plug, Lee 9 7010906 1 Gear Set 11 7010907 8 Bearing 12 Not Serviced 1 Shaft, Idler 13 7010909 1 Stator 14 7010910 8 Bolt, Socket Head 15 7010911 4 Pin, Shear (1/2in Length) 17 7010912 1 Tube 18 7010913 2 Gear (Not a Set) 19 7010938 2 Plate, Pressure 20 Kit 2 Seal, Back-up (Pressure Plate) 21 Kit 2 Seal 22 7010917 1 Pin, Shear (5/8in Length) 23 7010918 1 Ball 24 7010937 2 Plate, Wear 25 Kit 2 Seal, Wear Plate 26 Kit 2 Seal, Wear Plate 27 7010922 1 Shaft, Idler 28 Not Serviced 1 Housing, Gear - End 2900740 1 Seal Kit (Includes Items 6, 20, 21, 25 & 26)

REV
