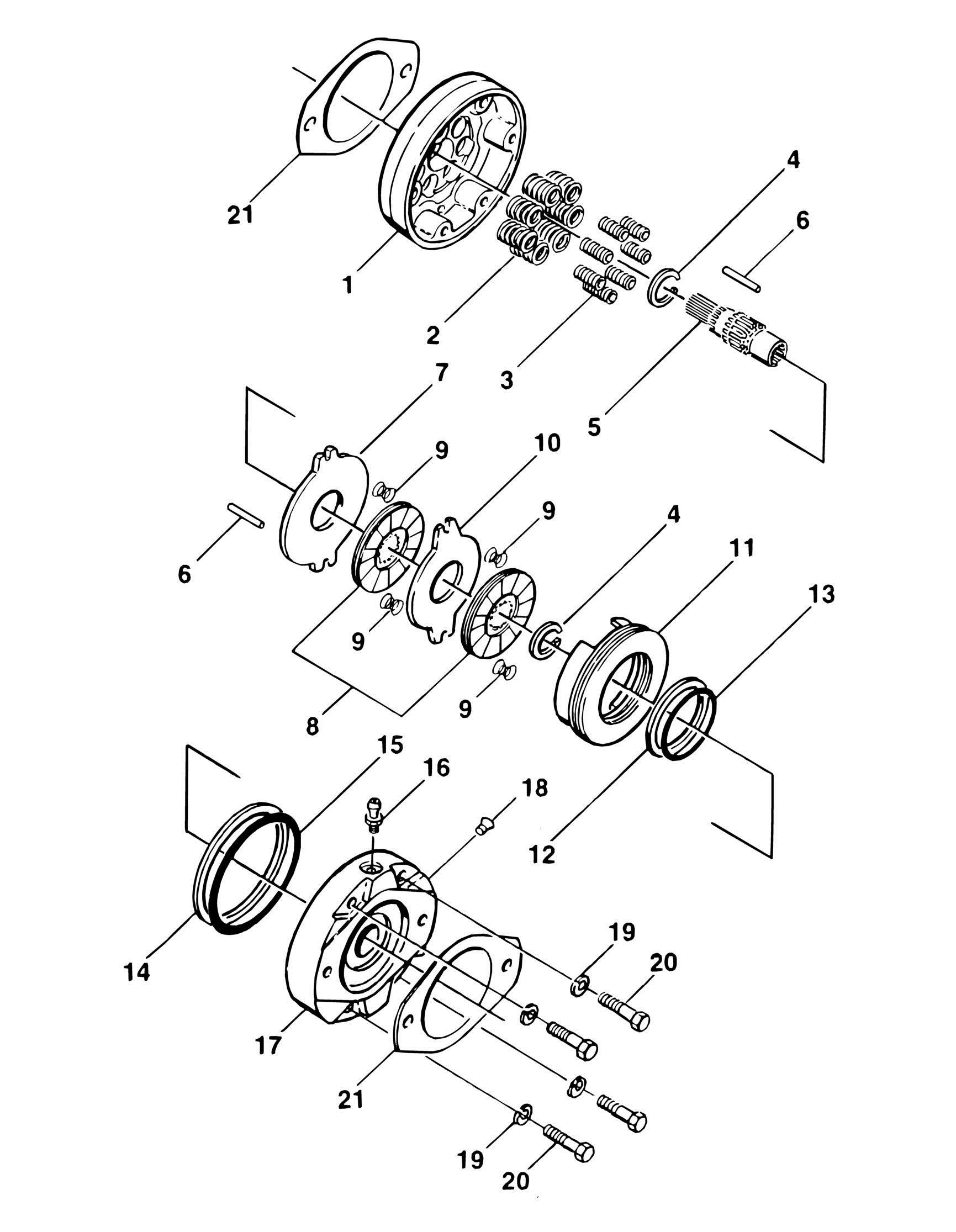

FIGURE 2-12. SWING BRAKE ASSEMBLY (PRIOR TO AUGUST 1991

FIGURE 2-12. SWING BRAKE ASSEMBLY (PRIOR TO AUGUST 1991)

FIGURE 2-12. SWING BRAKE ASSEMBLY (PRIOR TO AUGUST 1991)

ITEM PART NUMBER QTY DESCRIPTION REV

0920068 Ref SWING BRAKE ASSEMBLY (PRIOR TO AUGUST 1991) 1 7003067 1 Housing 2 7000782 7 Spring, Compression 3 7000798 7 Spring, Compression 4 Kit 2 Ring, Retaining 5 7003061 1 Shaft, Splined 6 7003062 2 Pin, Torque 7 7000718 1 Disc, Primary 8 7000732 2 Disc, Rotating 9 7003006 4 Spring, Compression 10 7003063 1 Disc, Stationary 11 7003064 1 Piston 12 Kit 1 Ring, Back-up 13 Kit 1 O-Ring 14 Kit 1 Ring, Back-up 15 Kit 1 O-Ring 16 7000796 1 Bleeder 17 7003065 1 Plate, Power 18 7000728 1 Plug 19 7000729 4 Lockwasher 20 7003066 4 Bolt 21 Kit 2 Gasket 2900649 1 Seal Kit (Includes Items 4, 12, 13, 14, 15 & 21)
