FIGURE 2-11. SWING MOTOR ASSEMBLY (1993 TO PRESENT

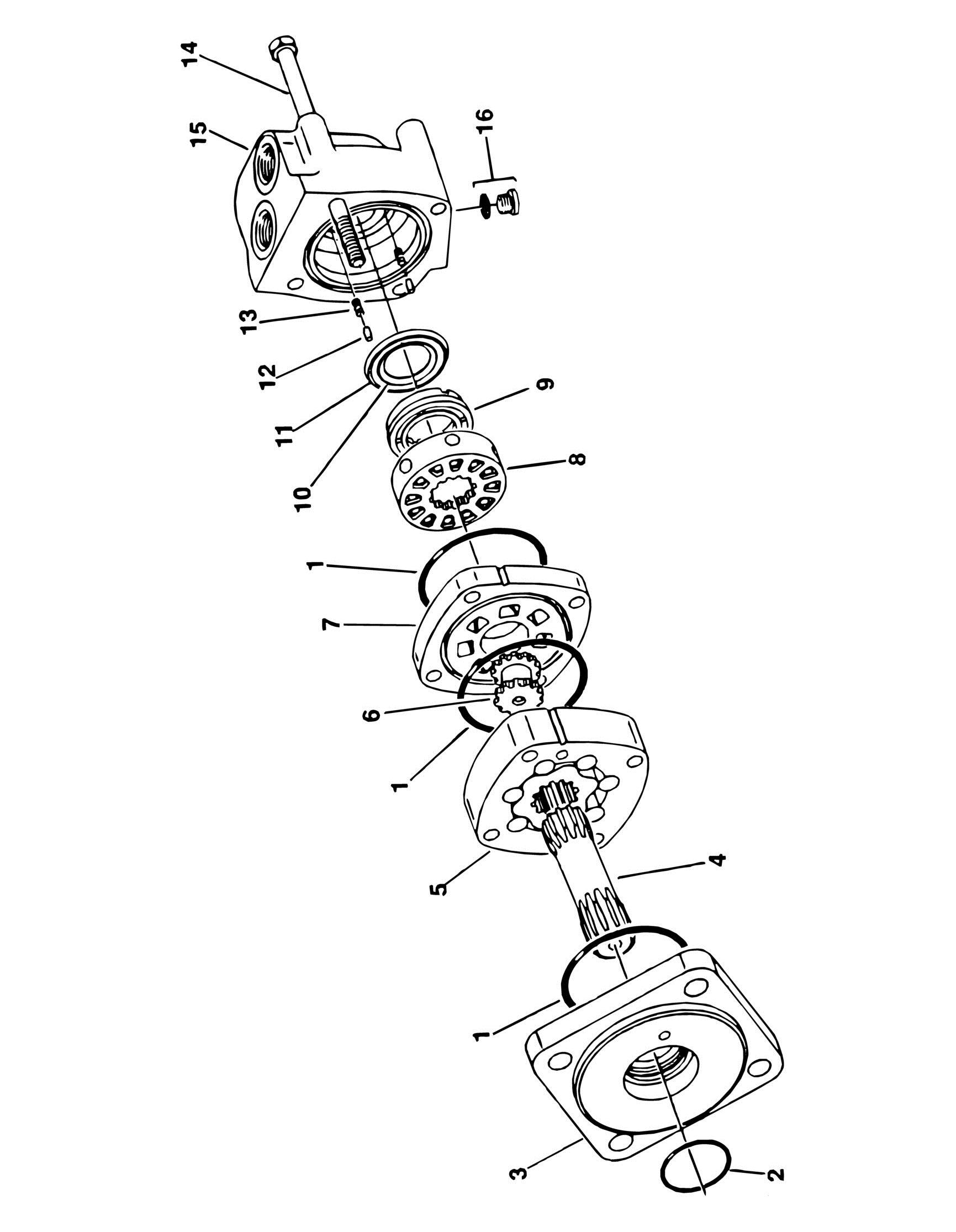

FIGURE 2-11. SWING MOTOR ASSEMBLY (1993 TO PRESENT)

FIGURE 2-11. SWING MOTOR ASSEMBLY (1993 TO PRESENT)

ITEM PART NUMBER QTY DESCRIPTION

1

3160183 Ref SWING MOTOR ASSEMBLY (1993 TO PRESENT) Kit 3 Seal 2 Kit 1 O-Ring 3 7009984 1 Flange, Mounting 4 7009988 1 Drive 5 7009989 1 Geroler 6 7009905 1 Drive, Valve 7 7009983 1 Plate, Valve 8 7009927 1 Valve 9 7009909 1 Ring, Balance 10 Kit 1 Seal, Face - Inner 11 Kit 1 Seal, Face - Outer 12 7009912 2 Pin 13 7009913 2 Spring 14 7009990 4 Bolt 15 7009930 1 Housing, Valve 16 7002157 1 Plug Assembly 16 Kit 1 O-Ring 7009987 1 Seal Kit (Includes Items 1, 2, 10, 11 & 19 O-Ring)

REV
