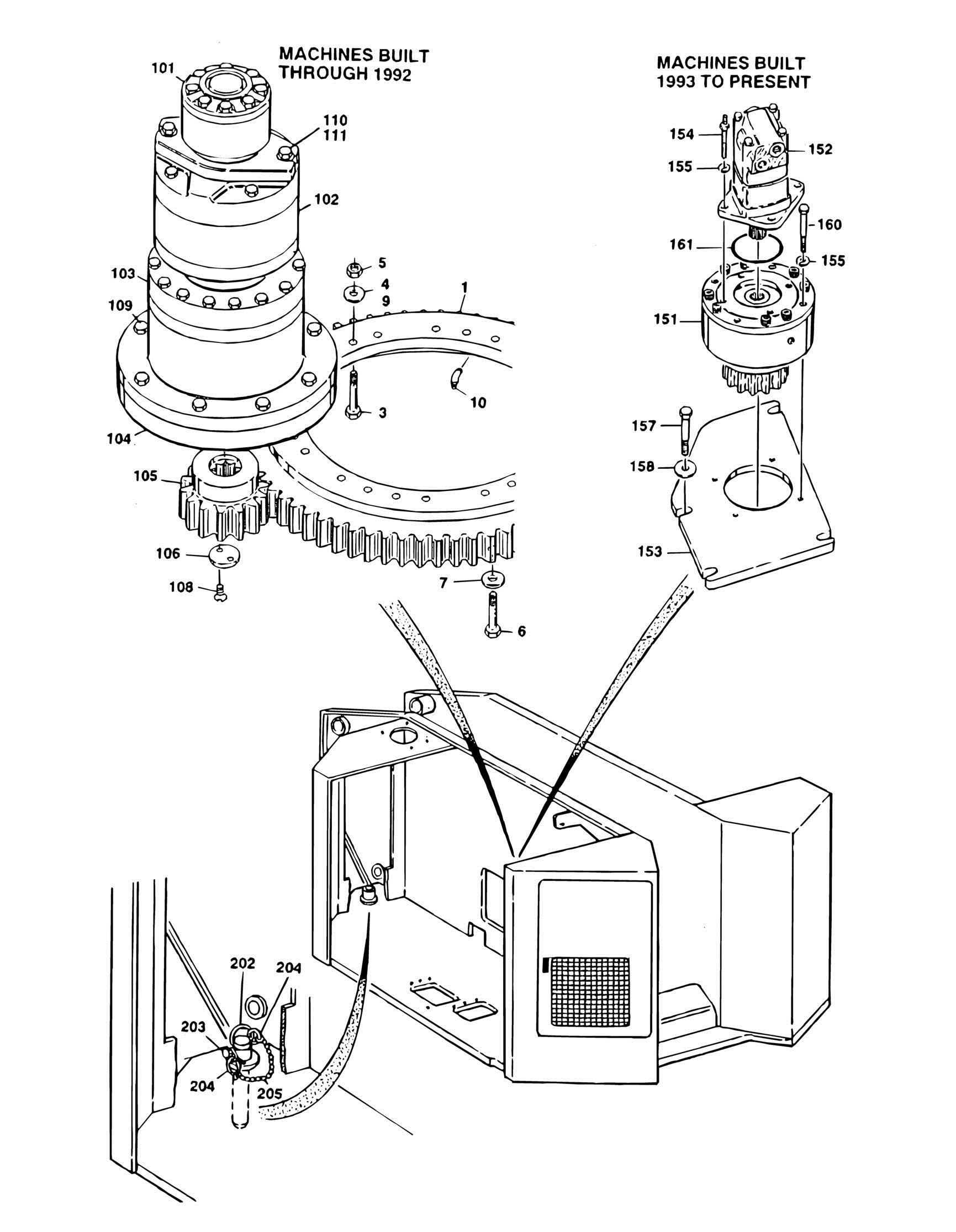

FIGURE 2-8. TURNTABLE, BEARING AND SWING DRIVE INSTALLATION
ITEM PART NUMBER QTY
DESCRIPTION
Ref TURNTABLE OPTIONS (DEUTZ POWERED MACHINES) 4620073 1 Turntable - Domestic Machines Built Prior to May 1993 4620094 1 Turntable - Domestic Machines Built May 1993 to Present 4620074 1 Turntable - CSA Machines Built Prior to May 1993 4620095 1 Turntable - CSA Machines Built May 1993 to Present Ref TURNTABLE OPTIONS (FORD AND KOBUTA POWERED
MACHINES)
4620059 1 Turntable - Domestic Standard Bang-Bang or Proportional Machines Built Prior to May 1993 4920092 1 Turntable - Domestic Standard Bang-Bang or Proportional Machines Built May 1993 to Present 4620060 1 Turntable - Domestic Hydraulic Controls and All CSA Built Prior to May 1993 4620093 1 Turntable - Domestic Hydraulic Controls and All CSA Built May 1993 to Present 0250136 Ref TURNTABLE BEARING INSTALLATION 1 2915080 1 Bearing Kit (was p/n 0440067) (Kit Includes Bearing and Mounting Hardware) 3 0682020 15 Bolt 5/8in-11NC x 2 1/2in (Grade 8) 4 4740004 9 Washer, Hardened 5 3300183 15 Nut 5/8in-11NC (Grade 8) 6 0681818 12 Bolt 1/2in-13NC x 2 1/4in (Grade 8) 7 4740003 12 Washer, Hardened 9 4740048 3 Washer, Special 10 2160001 3 Fitting, Grease - 90 0100019 AR Loctite #271 0100004 AR Devcon (Not Required on Machines with Milled Frame and Turntable) 0250139 Ref SWING DRIVE INSTALLATION - MACHINES BUILT THROUGH
1992
101 Ref Swing Motor Options: 101 3160156 1 Motor - (Prior to August 1991) (See SWING MOTOR ASSEMBLY for Breakdown) 101 3160181 1 Motor - (August 1991 Through 1992) (See SWING MOTOR ASSEMBLY for Breakdown) 102 Ref Swing Brake Options: 102 0920068 1 Brake - (Prior to August 1991) (See SWING BRAKE ASSEMBLY for Breakdown) 102 0920086 1 Brake - (August 1991 Through 1992) (See BRAKE ASSEMBLY - AUSCO 37845 for Breakdown) 103 2780055 1 Swing Hub Assembly (See SWING HUB ASSEMBLY for Breakdown) 104 3200249 1 Plate, Swing Drive Mounting 105 2440059 1 Gear, Pinion 106 4740367 1 Washer, Special 107 0100019 AR Loctite #271 (Not Shown) 108 0741606 2 Screw, Countersunk 3/8in-16NC x 3/4in 109 0641912 9 Bolt 9/16in-12NC x 1 1/2in 110 0681836 2 Bolt 1/2in-13NC x 4 1/2in (Grade 8) 111 4740171 2 Washer, Hardened 112 0100009 AR Sealant - RTV #738 (Not Shown) Ref SWING DRIVE INSTALLATIONS:
REV
F
C
ITEM PART NUMBER QTY
DESCRIPTION
0252578 Ref MACHINES BUILT 1993 TO MAY 1994 0255010 Ref MACHINES BUILT MAY 1994 TO PRESENT 151 Ref Swing Brake Assembly Options: 151 0920089 1 Machines Built 1993 to May 1994 151 7012570 1 Seal Kit - 0920089 Brake (Includes Seals, O-Rings, 1 Backup Rings and Retaining Ring) 151 7012571 1 Rebuild Kit - 0920089 Brake (Includes 7012570 Seal Kit, Inner and Outer Discs and Pressure Plate) 151 0920095 1 Machines Built May 1994 to Present 151 7012651 1 Seal Kit - 0920095 Brake (Includes Seals, O-Rings, Back-up Rings and Retaining Ring) 151 7012650 1 Rebuild Kit - 0920095 Brake (Includes 7012651Seal Kit, Inner and Outer Discs and Pressure Plate) 152 3160183 1 Swing Motor Assembly (See SWING MOTOR ASSEMBLY for Breakdown) 153 3535607 1 Plate, Mounting 154 4300107 4 Stud 1/2in-13NC x 2in 154 3311801 4 Nut 1/2in-13NC 155 Ref Hardware Options: 155 4761800 8 Lockwasher 1/2in (Machines Built 1993 to May 1994) 155 4740252 8 Washer, Hardened (Machines Built May 1994 to Present) 157 0642014 4 Bolt 5/8in-11NC x 1 3/4in 158 4740004 4 Washer, Hardened 160 Ref Bolt Options: 160 0641830 4 Bolt 1/2in-13NC x 3 3/4in (Machines Built 1993 to May 1994) 160 0641834 4 Bolt 1/2in-13NC x 4 1/4in (Machines Built May 1994 to Present) 161 3790155 1 O-Ring 0100019 AR Loctite #271 0100021 AR Primer 0239585 Ref TURNTABLE LOCK INSTALLATION 202 3421627 1 Pin, Lock 203 3421565 1 Snap - Pin 204 3760170 2 Ring, Quick Release 205 1260017 9 in/23cm Chain
REV
D
B
