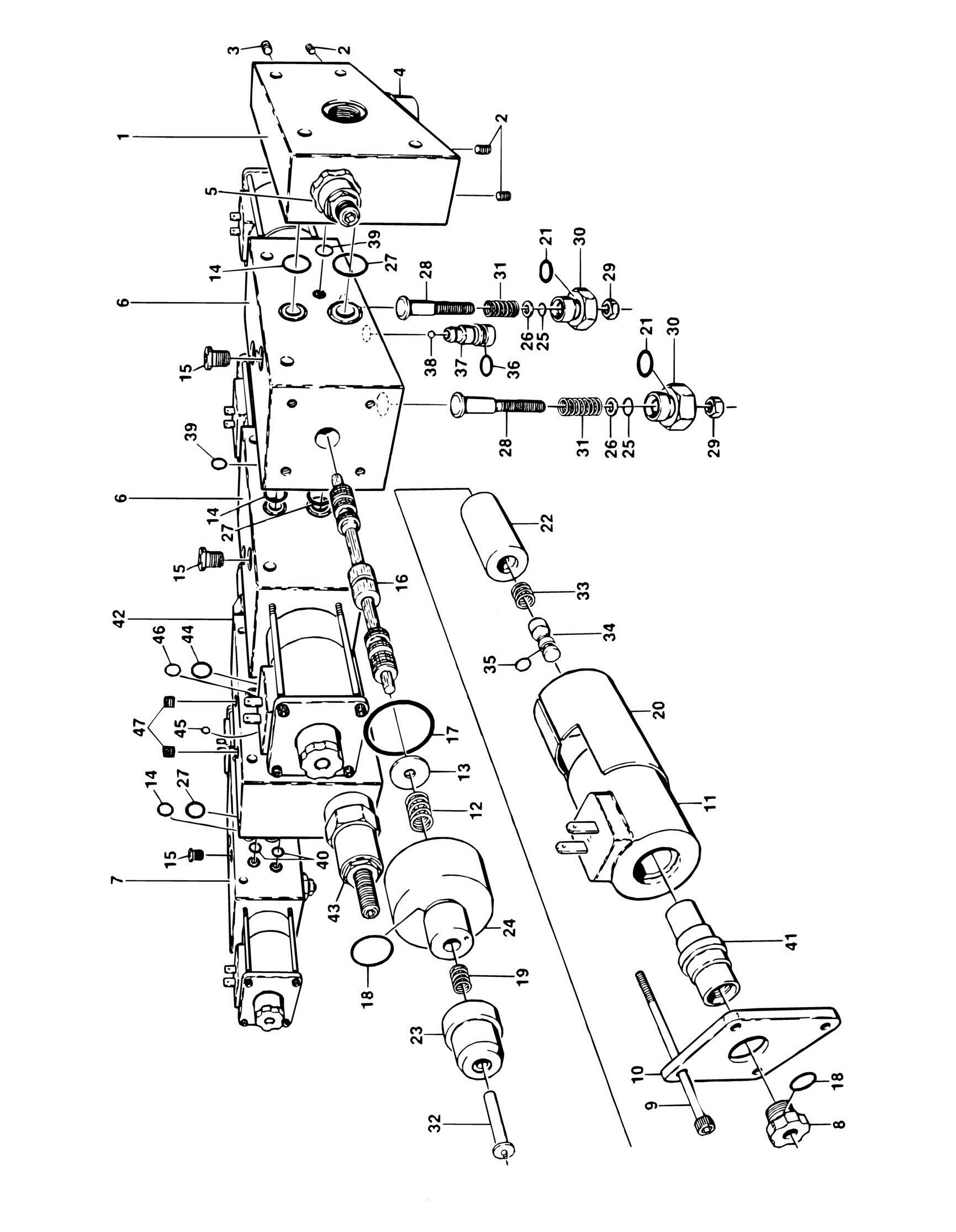

FIGURE 2-5. CONTROL VALVE ASSEMBLY - PROPORTIONAL
FIGURE 2-5. CONTROL VALVE ASSEMBLY - PROPORTIONAL
FIGURE 2-5. CONTROL VALVE ASSEMBLY - PROPORTIONAL
ITEM PART NUMBER QTY
DESCRIPTION
4640643 Ref CONTROL VALVE ASSEMBLY - PROPORTIONAL 1 7010701 1 Inlet Section Assembly 2 7010703 3 Plug 3 7010704 1 Plug 4 7010705 1 Cartridge, Unloader Spool 5 7010706 1 Cartridge, System Relief 6 7010707 1 Working Section Assembly (Tower Lift) 6 7010785 1 Working Section Assembly (Main Lift) 7 7010743 1 Working Section Assembly (Swing) 8 7010708 2 Plug 9 7010709 8 Bolt, Socket Head 10 7010710 2 Plate, End 11 7010711 2 Coil 12 7010712 2 Spring 13 7010713 2 Washer 14 Kit 2 O-Ring 15 7010716 1 Plug 16 7010717 1 Spool (Swing and Tower Lift) 16 7010784 1 Spool (Main Lift) 17 Kit 2 O-Ring 18 Kit 4 O-Ring 19 7010720 2 Spring (Main Lift and Tower Lift) 19 7010745 2 Spring (Swing) 20 7010721 2 Case, Solenoid 21 Kit 2 O-Ring 22 7010723 2 Armature 23 7010724 2 Tube, Flux 24 7010725 2 Armature 25 Kit 2 O-Ring 26 7010727 2 Washer 27 Kit 1 O-Ring 28 7010729 2 Needle 29 7010730 2 Nut 30 7010731 2 Body, Cartridge 31 7010732 2 Spring 32 7010733 2 Pin, Push 33 7010734 2 Spring 34 7010735 2 Pin, Push 35 Kit 2 Ring, Quad 36 Kit 1 O-Ring 37 7010738 1 Body, Shuttle Cartridge 38 7010739 1 Ball 39 Kit 2 O-Ring 40 Kit 4 O-Ring (Swing Only) 41 7010724 2 Guide 42 7010741 1 Crossover Relief Section Assembly 43 7010742 2 Cartridge, System Relief 44 Kit 2 O-Ring 45 Kit 2 O-Ring 46 Kit 2 O-Ring
REV
B
ITEM PART NUMBER QTY DESCRIPTION
47 7010704 2 Plug 2900761 1 Seal Kit - Inlet Section 2900759 3 Seal Kit - Working Section 2900760 1 Seal Kit - Crossover Relief Section
