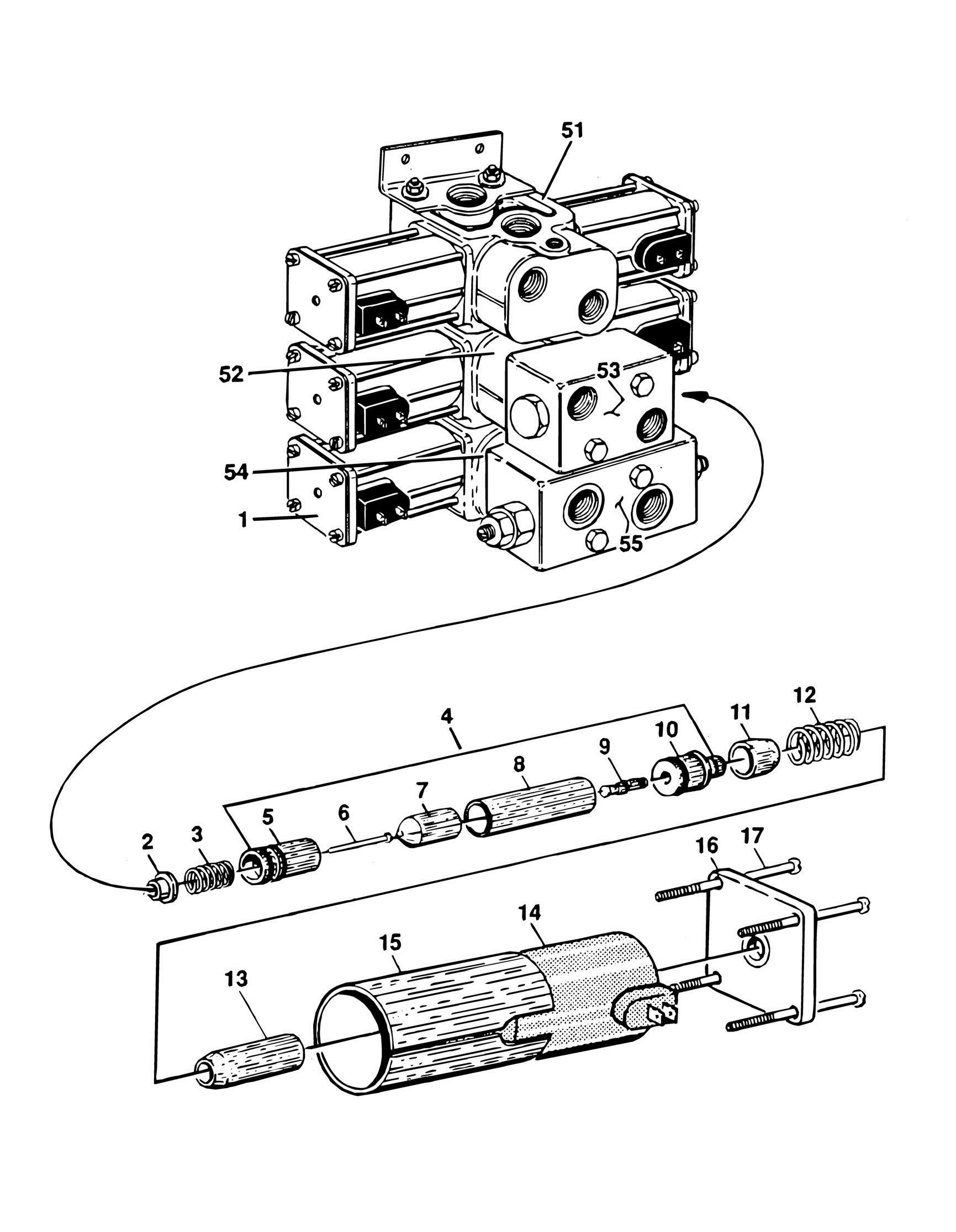

FIGURE 2-4. CONTROL VALVE ASSEMBLY - BANG-BANG (STANDARD CONTROLS
ITEM PART NUMBER QTY DESCRIPTION
Ref USAGE CHART: 4640601 Ref 3 Stack (Prior to October 1993) 4640850 Ref 3 Stack (October 1993 to Present) Ref WORKING SECTIONS (STANDARD PARTS) 1 7004859 2 Solenoid Assembly 2 7003825 1 Washer 3 7002348 1 Spring 4 7002305 1 Guide Tube Assembly 5 7002345 1 Cone, Female 5 Kit 1 O-Ring 5 Kit 1 O-Ring 6 7002346 1 Pin, Push 7 7002344 1 Plunger 8 7000470 1 Tube, Guide 9 7002341 1 Pin, Actuator 9 Kit 1 Ring, Quad 10 7002340 1 Guide, External Push PIn 10 Kit 1 O-Ring 11 7002333 1 Sleeve, Inner Flux 12 7002334 1 Spring 13 7002336 1 Sleeve, Outer Flux 14 7000418 1 Coil 15 7002335 1 Case, Solenoid 16 7002338 1 Plate, End 17 7002339 4 Screw 7000414 3 Seal Kit - Working Section Ref WORKING SECTIONS - COMPLETE (INCLUDES ITEMS 1-17) 51 7002317 1 Main Lift Section 52 7003841 1 Tower Lift Section (4640601) 52 7003855 1 Tower Lift Section (4640850) 53 7011183 1 Dual Pilot Check Valve (Due to various suppliers, internal components are longer field serviceable) (4640601) (was p/n 7002262) 53 7000468 1 Crossover Relief Valve Assembly (Due to various suppliers, internal components are longer field serviceable) (4640850) 54 7003855 1 Swing Section 55 7000468 1 Crossover Relief Valve Assembly (Due to various suppliers, internal components are longer field serviceable)
