PROPORTIONAL VALVES
ITEM PART NUMBER QTY
DESCRIPTION

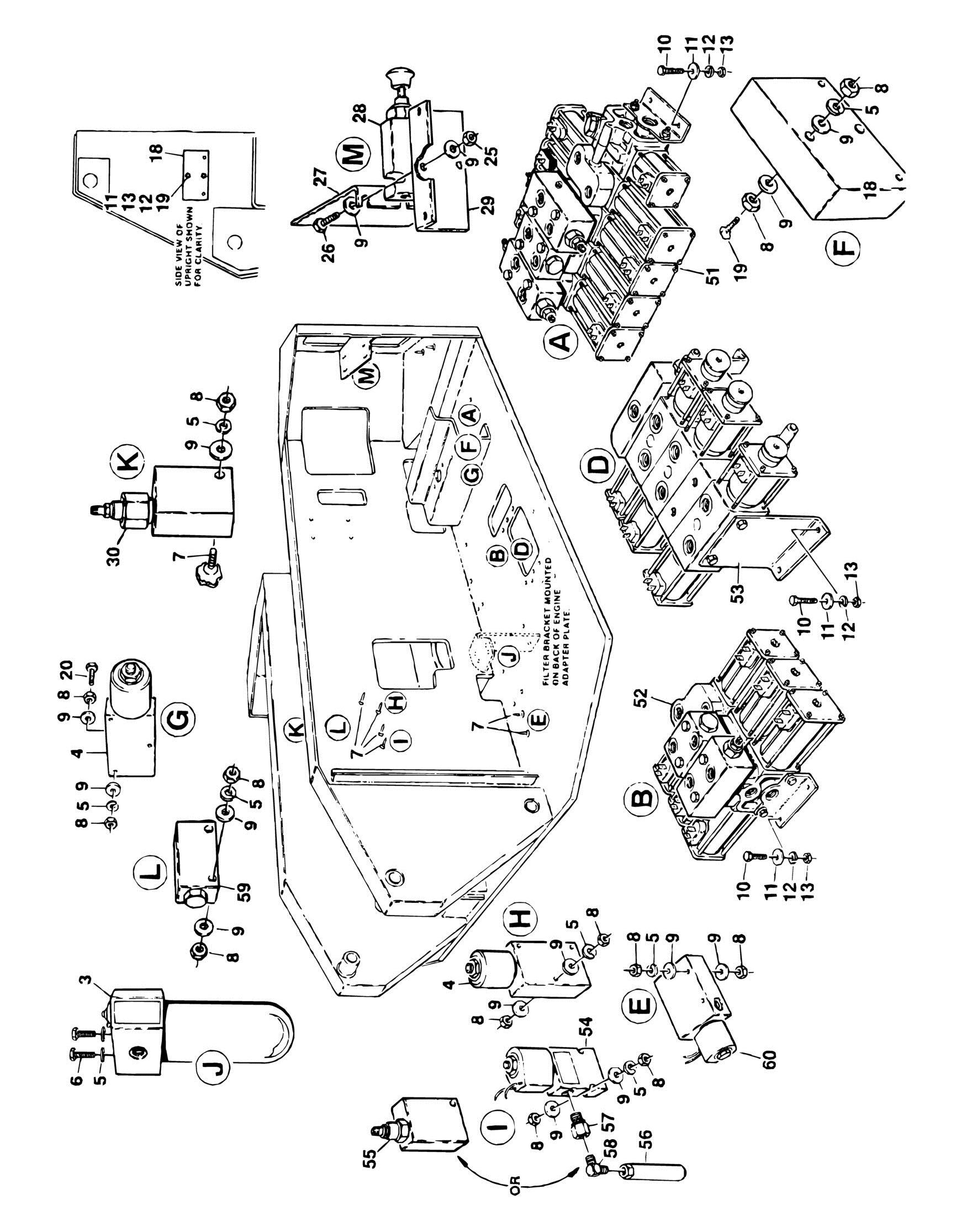

1281168 Ref CONTROL VALVES INSTALLATION - STANDARD BANG-BANG
(STANDARD PARTS)
1281345 Ref CONTROL VALVES INSTALLATION - PROPORTIONAL
(STANDARD PARTS)
3 2120122 1 Filter, Pressure 3 2120125 1 Element 4 4640123 2 Solenoid Valve Assembly 4 7004368 2 Coil (Hydraforce Version) 4 7000558 2 Coil (FPS Version) 4 7012518 2 Seal Kit (Hydraforce Version) 4 7006075 2 Seal Kit (FPS Version) 5 4761400 AR Lockwasher 1/4in 6 0641406 2 Bolt 1/4in-20NC x 3/4in 7 4300042 8 Stud (Welded on Part) 8 3311401 AR Nut 1/4in-20NC 9 4751400 AR Flatwasher 1/4in 10 0641514 8 Bolt 5/16in-18NC x 1 3/4in 11 4751500 AR Flatwasher 5/16in 12 4761500 AR Lockwasher 5/16in 13 3311501 AR Nut 5/16in-18NC 18 4640150 AR Valve, Check (Standard Bang-Bang Qty 1/Proportional Qty 2) 19 4300033 2 Stud (Welded on Part) 20 0641420 2 Bolt 1/4in-20NC x 2 1/2in 25 3311405 2 Locknut 1/4in-20NC 26 0641416 2 Bolt 1/4in-20NC x 2 1/4in 27 0902051 1 Bracket - Decal (November 1994 to Present Only) 28 4640866 1 Valve, Manual Descent (November 1994 to Present Only) 28 2900708 1 Seal Kit 28 7012959 1 Knob 29 0902090 1 Bracket - Valve (November 1994 to Present Only) 30 4640818 1 Valve (November 1994 to Present Only) 30 7011321 1 Cartridge 30 7024574 1 Seal Kit – 7011321 Cartridge Ref CONTROL VALVES INSTALLATION - STANDARD BANG-
BANG (2WS) (PRIOR TO MAY 1993) (VARIABLE PARTS)
0250121 Ref CONTROL VALVES - NON-ROTATE 0250131 Ref CONTROL VALVES - WITH ROTATE 51 Ref Control Valve Assembly Options (See CONTROL VALVE ASSEMBLY - BANG-BANG WITH DUMP SECTION for Breakdown): 51 4640246 1 3 Stack (Non-Rotate) (Prior to August 1992) 51 4640646 1 3 Stack (Non-Rotate) (August 1992 to Present) 51 4640247 1 4 Stack (With Rotate) (Prior to August 1992) 51 4640645 1 4 Stack (With Rotate) (August 1992 to Present) 52 4640601 1 Control Valve Assembly (See CONTROL VALVE ASSEMBLY BANG-BANG (STANDARD CONTROLS) for Breakdown) 53 Not Required 0 Not Required 54 4640543 1 Valve, Dump 54 7004368 1 Coil (Hydraforce Version) 54 7009745 1 Coil (Vickers/Modular Controls Versions)
REV
H
D
D D
ITEM PART NUMBER QTY DESCRIPTION
55 Not Required 0 Not Required 56 4640627 1 Valve, Flow Control 56 7001508 1 Seal Kit 57 2180029 1 Fitting 58 2220820 1 Fitting, 90 59 Not Required 0 Not Required 60 Not Required 0 Not Required Ref CONTROL VALVES INSTALLATION - STANDARD BANG-
BANG (2WS) (MAY 1993 TO PRESENT) (VARIABLE PARTS)
0253768 Ref CONTROL VALVES - NON-ROTATE 0253767 Ref CONTROL VALVES - WITH ROTATE 51 Ref Control Valve Assembly Options (See CONTROL VALVE ASSEMBLY - BANG-BANG WITH DUMP SECTION for Breakdown): 51 4640646 1 3 Stack (Non-Rotate) 51 4640645 1 4 Stack (With Rotate) (Prior to January 1995) 51 4640909 1 4 Stack (With Rotate) (January 1995 to Present) 52 Ref Control Valve Assembly (See CONTROL VALVE ASSEMBLY BANG-BANG (STANDARD CONTROLS) for Breakdown) 52 4640601 1 Control Valve Assembly (Prior to October 1993) 52 4640850 1 Control Valve Assembly (October 1993 to Present) 53 Not Required 0 Not Required 54 4640543 1 Valve, Dump 54 7004368 1 Coil (Hydraforce Version) 54 7009745 1 Coil (Vickers/Modular Controls Version) 55 4640623 1 Valve, Flow Control 56 Not Required 0 Not Required 57 2220651 1 Fitting 58 2220373 1 Fitting 59 4640673 1 Valve, Check 59 7011325 1 Cartridge 60 Not Required 0 Not Required Ref CONTROL VALVES INSTALLATION - STANDARD BANG-
BANG (4WS) (PRIOR TO MAY 1993) (VARIABLE PARTS)
0251710 Ref CONTROL VALVES - NON-ROTATE 0251709 Ref CONTROL VALVES - WITH ROTATE 51 Ref Control Valve Assembly Options (See CONTROL VALVE ASSEMBLY - BANG-BANG WITH DUMP SECTION for Breakdown): 51 4640462 1 2 Stack (Non-Rotate) (Prior to August 1992) 51 4640710 1 2 Stack (Non-Rotate) (August 1992 to Present) 51 4640692 1 3 Stack (With Rotate) (Prior to August 1992) 51 4640720 1 3 Stack (With Rotate) (August 1992 to Present) 52 4640601 1 Control Valve Assembly (See CONTROL VALVE ASSEMBLY BANG-BANG (STANDARD CONTROLS) for Breakdown) 53 Not Required 0 Not Required 54 4640543 1 Valve, Dump 54 7004368 1 Coil (Hydraforce Version) 54 7009745 1 Coil (Vickers/Modular Controls Version) 55 Not Required 0 Not Required 56 4640627 1 Valve, Flow Control 56 7001508 1 Seal Kit 57 2180029 1 Fitting
REV
D E
B B
ITEM PART NUMBER QTY DESCRIPTION
58 2220820 1 Fitting, 90 59 Not Required 0 Not Required 60 Not Required 0 Not Required Ref CONTROL VALVES INSTALLATION - STANDARD BANG-
BANG (4WS) (MAY 1993 TO PRESENT) (VARIABLE PARTS)
0253769 Ref CONTROL VALVES - NON-ROTATE 0253770 Ref CONTROL VALVES - WITH ROTATE 51 Ref Control Valve Assembly Options (See CONTROL VALVE ASSEMBLY - BANG-BANG WITH DUMP SECTION for Breakdown): 51 4640710 1 2 Stack (Non-Rotate) 51 4640720 1 3 Stack (With Rotate) (Prior to August 1995) 51 4640950 1 3 Stack (With Rotate) (August 1995 to Present) 52 Ref Control Valve Assembly (See CONTROL VALVE ASSEMBLY BANG-BANG (STANDARD CONTROLS) for Breakdown)
52 4640601
Control Valve Assembly (Prior to October 1993) 52 4640850 Control Valve Assembly (October 1993 to Present) 53 Not Required 0 Not Required 54 4640543 1 Valve, Dump 54 7004368 1 Coil (Hydraforce Version) 54 7009745 1 Coil (Vickers/Modular Controls Version) 55 4640623 1 Valve, Flow Control 56 Not Required 0 Not Required 57 2220651 1 Fitting 58 2220373 1 Fitting 59 4640673 1 Valve, Check 59 7011325 1 Cartridge 60 Not Required 0 Not Required Ref CONTROL VALVES INSTALLATION - PROPORTIONAL (2WS)
(VARIABLE PARTS)
0250980 Ref CONTROL VALVES - NON-ROTATE 0250979 Ref CONTROL VALVES - WITH ROTATE 51 Ref Control Valve Assembly Options (See CONTROL VALVE ASSEMBLY - BANG-BANG WITH DUMP SECTION for breakdown) 51 4640246 1 3 Stack (Non-Rotate) (Prior to June 1991) 51 4640646 1 3 Stack (Non-Rotate) (June 1991 to Present) 51 4640247 1 4 Stack (With Rotate) (Prior to June 1991) 51 4640645 1 4 Stack (With Rotate) (June 1991 to January 1995) 51 4640909 1 4 Stack (With Rotate) (January 1995 to Present) 52 Not Required 0 Not Required 53 4640643 1 Control Valve Assembly (See CONTROL VALVE ASSEMBLY BANG-BANG WITH DUMP SECTION for Breakdown) 54 to 59 Not Required 0 Not Required 60 4640360 1 Dump Valve Assembly 60 7009745 1 Coil (Vickers/Modular Controls Version) 60 7004368 1 Coil (Hydraforce Version) 60 7004289 1 Cartridge Without Coil (Vickers/Modular Controls Version) 60 Not Available Seal Kit - 7004289 Cartridge (Vickers Modular Controls Version) 60 7012910 1 Cartridge Without Coil (Hydraforce Version) 60 2900708 1 Seal Kit - 7012910 Cartridge (Hydraforce Version) 60 7003635 1 Cartridge, Check (Vickers/Modular Controls Version)
REV
D E
E F
ITEM PART NUMBER QTY
DESCRIPTION
60 7012930 1 Cartridge, Check (Hydraforce Version) Ref CONTROL VALVES INSTALLATION - PROPORTIONAL (4WS)
(VARIABLE PARTS)
0252723 Ref CONTROL VALVES - NON-ROTATE 0252722 Ref CONTROL VALVES - WITH ROTATE 51 Ref Control Valve Assembly Options (See CONTROL VALVE ASSEMBLY - BANG-BANG WITH DUMP SECTION for breakdown) 51 4640710 1 3 Stack (Non-Rotate) 51 4640720 1 3 Stack (With Rotate) (Prior to August 1995) 51 4640950 1 3 Stack (With Rotate) (August 1995 to Present) 52 Not Required 0 Not Required 53 4640643 1 Control Valve Assembly (See CONTROL VALVE ASSEMBLY PROPORTIONAL for Breakdown) 54 to 59 Not Required 0 Not Required 60 4640360 1 Dump Valve Assembly 60 7009745 1 Coil (Vickers/Modular Controls Version) 60 7004368 1 Coil (Hydraforce Version) 60 7004289 1 Cartridge Without Coil (Vickers/Modular Controls Version) 60 Not Available Seal Kit - 7004289 Cartridge (Vickers/Modular Controls Version) 60 7012910 1 Cartridge Without Coil (Hydraforce Version) 60 2900708 1 Seal Kit - 7012910 Cartridge (Hydraforce Version) 60 7003635 1 Cartridge, Check (Vickers/Modular Controls Version) 60 7012930 1 Cartridge, Check (Hydraforce Version)
REV
C D
