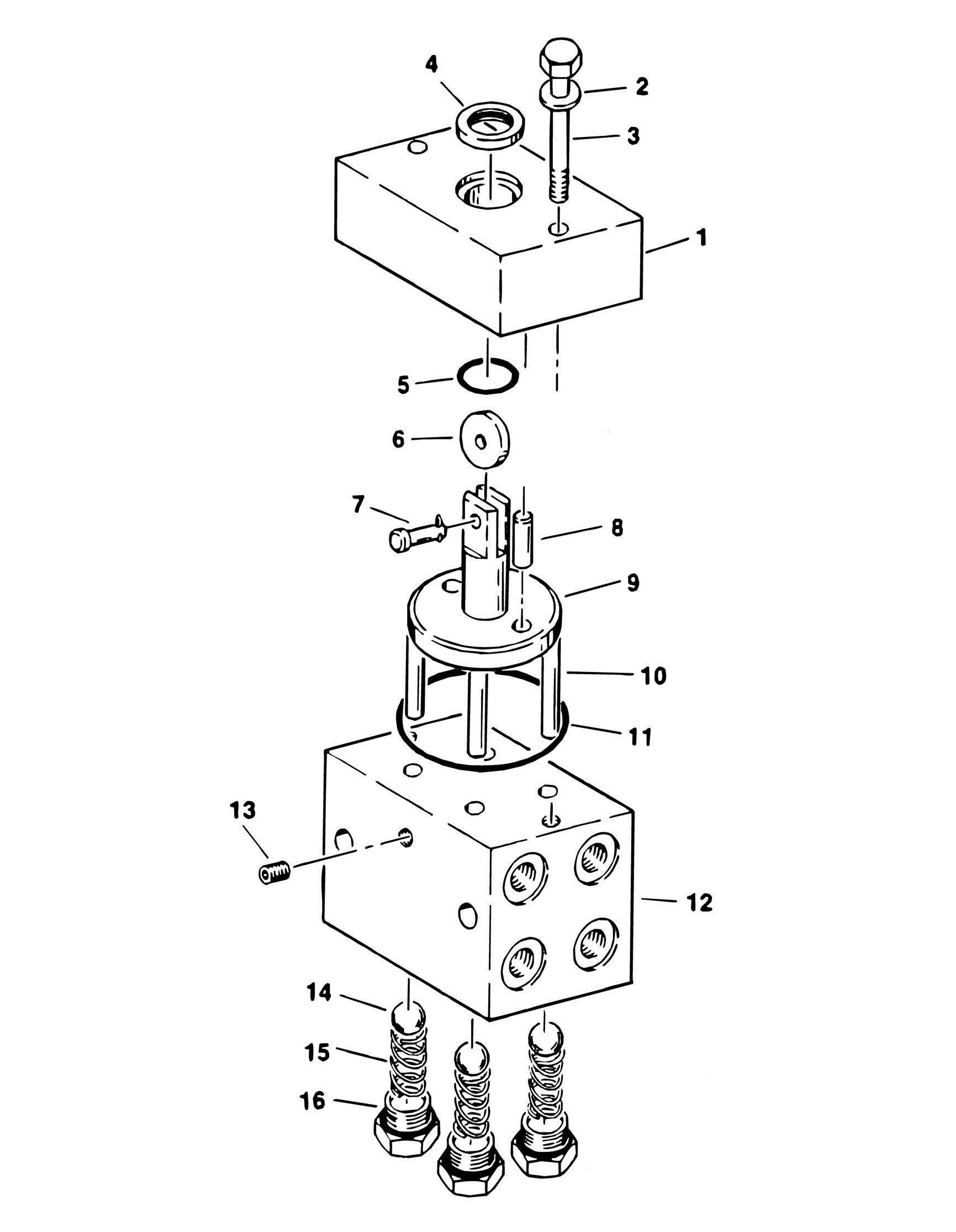

FIGURE 1-12. LOCKOUT VALVE ASSEMBLY
FIGURE 1-12. LOCKOUT VALVE ASSEMBLY
FIGURE 1-12. LOCKOUT VALVE ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
4640485 Ref LOCKOUT VALVE ASSEMBLY (PRIOR TO JUNE 1992 ONLY) 1 0560679 1 Block, Top Valve 2 0641518 2 Bolt 5/16in-18NC x 2 1/4in 3 4761500 2 Lockwasher 5/16in 4 3960047 1 Seal, Rod 5 3790116 1 O-Ring 6 3860037 1 Roller, Cam 7 3430407 1 Clevis Pin with Cotter Pin 8 3421284 2 Pin 9 3840833 1 Plunger, Rod 10 3840854 4 Rod 11 3790231 1 O-Ring 12 0560467 1 Block, Bottom Valve 13 2200202 1 Plug 13 0100011 AR Loctite 14 0320008 4 Ball 15 4160078 4 Spring 16 2180658 4 Plug
