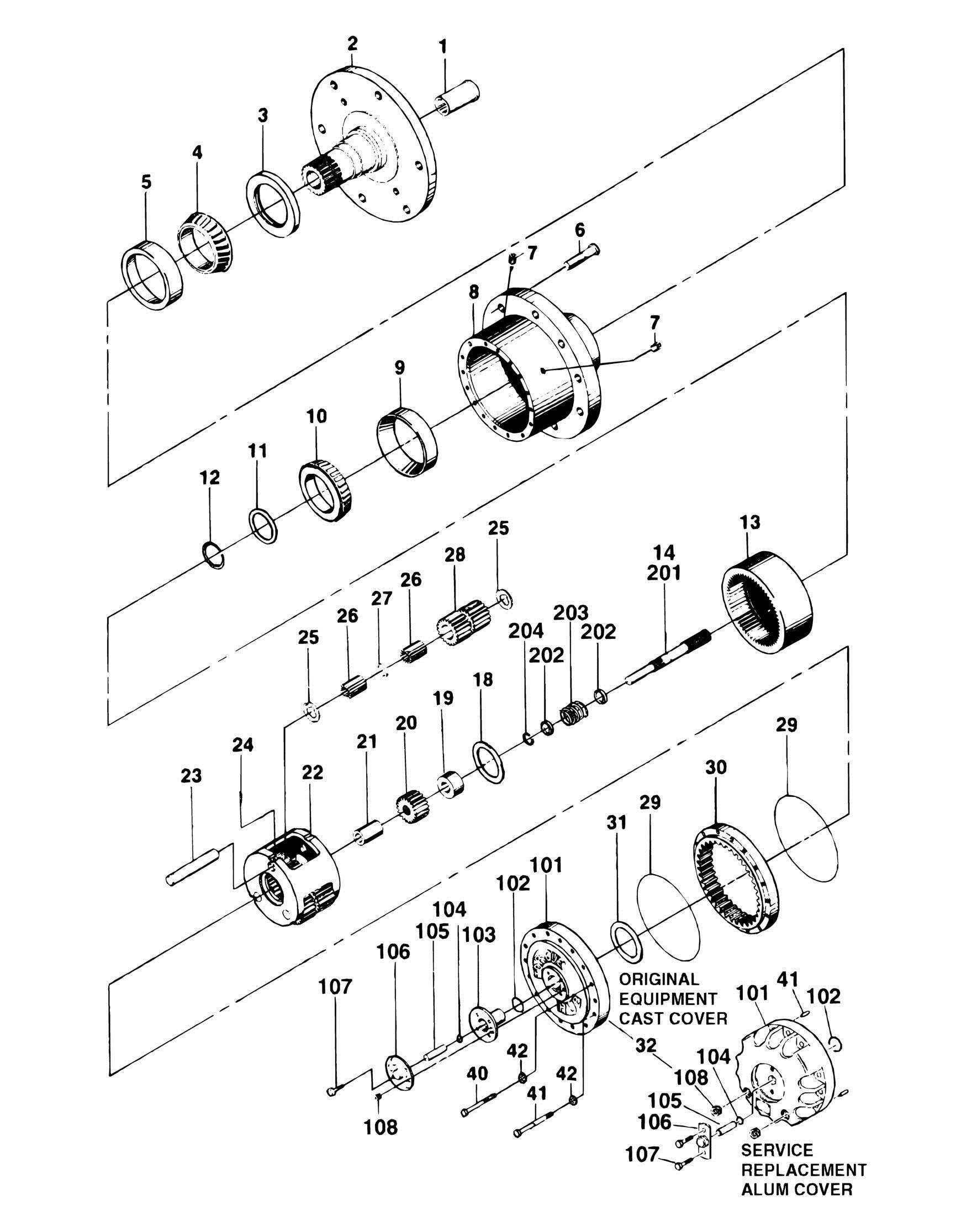

FIGURE 1-7. DRIVE HUB ASSEMBLY
FIGURE 1-7. DRIVE HUB ASSEMBLY
FIGURE 1-7. DRIVE HUB ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
2780169 Ref DRIVE HUB ASSEMBLY (2WD/2WS) 2780167 Ref DRIVE HUB ASSEMBLY (4WD/2WS REAR) 1 7000206 1 Coupling Ref Hub-Spindle Sub-Assembly 2 7001997 1 Spindle 3 7001998 1 Seal 4 Kit 1 Cone, Bearing 5 Kit 1 Cup, Bearing 6 7007697 9 Bolt, Wheel 7 7000242 2 Plug, Pipe 8 7007601 1 Hub 9 7000257 1 Cup, Bearing 10 7000258 1 Cone, Bearing 11 7000232 1 Spacer 12 7000229 1 Ring, Retaining 13 7000246 1 Gear, Internal 14 Ref Input Shaft Assembly Options: (See Items 201-204 for Breakdown) 18 7000253 1 Washer, Thrust 19 7000252 1 Spacer (2780169) 19 7007653 1 Spacer 20 7000251 1 Gear, Input (2780169) 20 7007652 1 Gear, Input (2780167) 21 7007654 1 Spacer (1780167 Only) 21 7000247 1 Carrier Assembly 22 7001931 1 Carrier 23 7001911 3 Shaft 24 7001913 3 Pin, Roll 25 7001985 6 Washer, Thrust 26 7001909 96 Roller, Needle 27 7000263 3 Spacer 28 7001912 3 Gear, Cluster 29 7000230 2 O-Ring 30 7000248 1 Gear, Ring 31 7000253 1 Washer, Thrust 32 Ref Cover Assembly (Includes Items 101-108) 40 Ref Bolt Options: 40 7000217 12 Original Equipment Cast Cover 40 7017067 12 Service Replacement Aluminum Cover 41 Ref Hardware Options: 41 7000214 4 Bolt, Shoulder (Original Equipment Cast Cover) 41 7017080 4 Dowel Pin (Service Replacement Aluminum Cover) 42 7007603 16 Flatwasher 7010429 1 Bearing Kit (Includes Items 4 & 5) Ref COVER ASSEMBLY 70001111 1 Original Equipment Cast Cover 70001349 1 Service Replacement Aluminum Cover 101 Ref Cover Options: 101 70001111 1 Original Equipment Cast Cover (was p/n 7000226) 101 70001349 1 Service Replacement Aluminum Cover (was p/n 7017091) 102 Ref O-Ring Options:
REV
ITEM PART NUMBER QTY
DESCRIPTION
102 Kit 1 Original Equipment Cast Cover 102 7017070 1 Service Replacement Aluminum Cover 103 Ref Cap, Cover 103 70001111 1 Original Equipment Cast Cover 103 Not Required 0 Service Replacement Aluminum Cover 104 Ref O-Ring Options: 104 Kit 1 Original Equipment Cast Cover 104 7017095 1 Service Replacement Aluminum Cover 105 Ref Rod, Disconnect Options: 105 70001111 1 Original Equipment Cast Cover 105 70001349 1 Service Replacement Aluminum Cover (was p/n 7017092) 106 Ref Cap, Disconnect 106 70001111 1 Original Equipment Cast Cover 106 70001349 1 Service Replacement Aluminum Cover (was p/n 7017093) 107 Ref Bolt Options: 107 7000216 1 Original Equipment Cast Cover 107 7000216 2 Service Replacement Aluminum Cover 108 Ref Plug, Pipe Options: 108 7000243 1 Original Equipment Cast Cover 108 7017094 2 Service Replacement Aluminum Cover Ref INPUT SHAFT ASSEMBLY 7000250 Ref 2WD 7007650 Ref 4WD 201 Ref Shaft Options: 201 7000260 1 2WD 201 7007651 1 4WD 202 7000263 2 Spacer 203 7000262 1 Spring 204 7000261 1 Ring, Retaining Ref Kit Options: 7010429 1 Bearing Kit (Includes Items 4 & 5) 2900034 1 Seal Kit (Includes Items 3, 11, 12 & 29) Ref Cover Kit Options: 70001111 1 Original Equipment Cast Cover (was p/n 7001989) 70001111 1 Aluminum Replacement for Original Equipment Cast Cover (Includes 29, 31 (Spacer), 40, 41 (Dowel Pins), 101, 102 & 104-108) (was p/n 7017099) 70001349 1 Service Replacement Aluminum Cover (Includes 29, 101 & 104-107) (was p/n 7017090)
