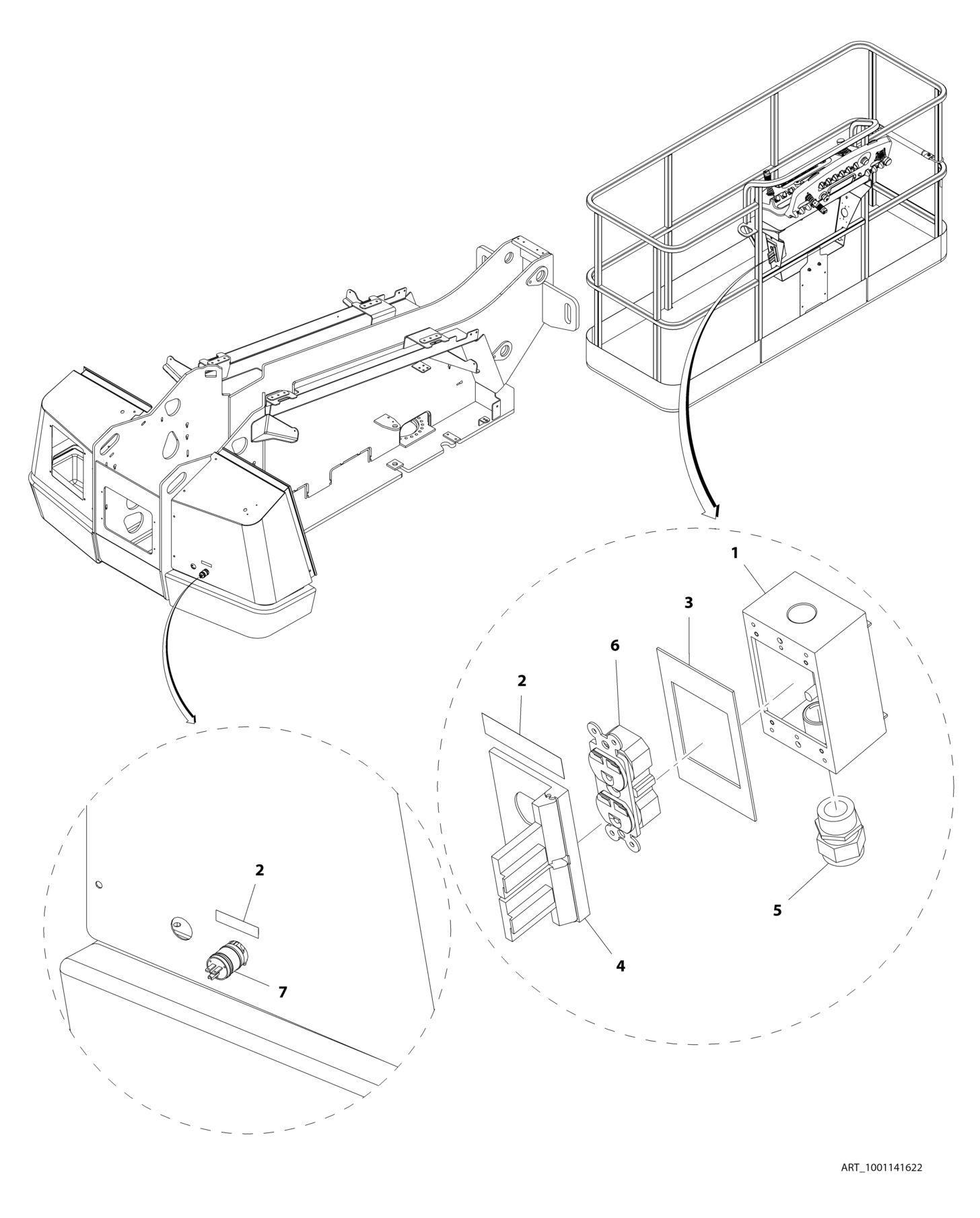

FIGURE 8-3. AC AT PLATFORM RECEPTACLE COMPONENTS - 220V (ANSI EXPORT SPECS)

ITEM PART NUMBER QTY

DESCRIPTION

1001141622 Ref AC AT PLATFORM RECEPTACLE COMPONENTS - 220V (ANSI EXPORT SPECS) 1 0860038 1 Box, Switch 2 3252507 2 Decal - Voltage 3 3960422 1 Gasket 4 4060092 1 Shield, Cover 5 4460071 1 Connector, Strain Relief 6 4460125 1 Receptacle 7 4460233 1 Plug, Male
