FIGURE 7 9. HYDRAULIC FLUSHING LOOP INSTALLATION 18RS

from JLG 18RS 18RSJ Parts Manual (3121285)-PDF Download En

by www.heydownloads.com

FIGURE 6 9. STEER CYLINDER ASSEMBLY

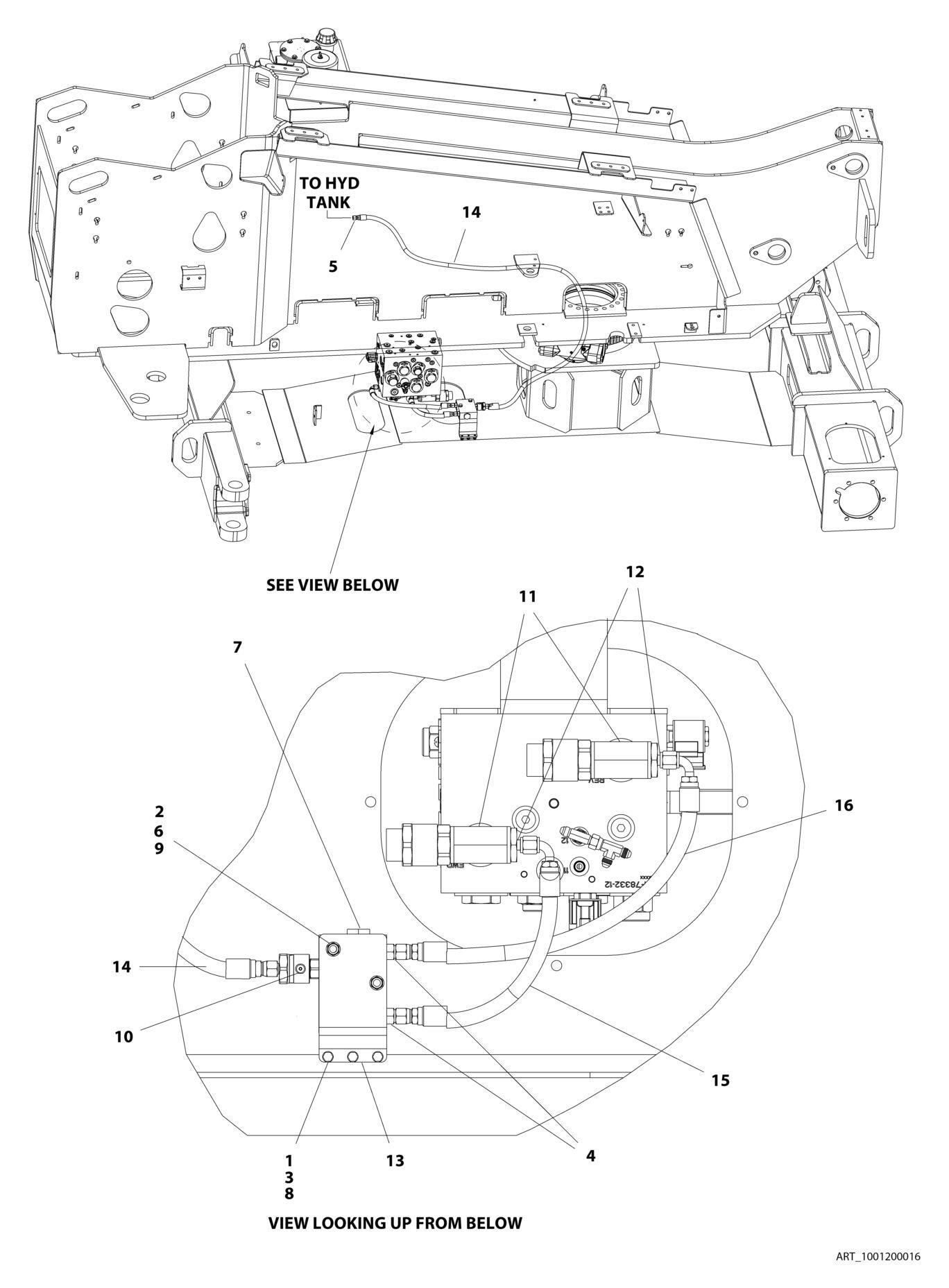

FIGURE 7-9. HYDRAULIC FLUSHING LOOP INSTALLATION - 18RS

ITEM PART NUMBER QTY

DESCRIPTION

1001200016 Ref HYDRAULIC FLUSHING LOOP INSTALLATION - 18RS 1 0100011 AR Compound, Locking 2 0700819 2 Bolt M8 X 55 3 0760608 3 Bolt M6 X 16 4 2220371 2 Fitting, Straight JIC/ORB 5 2220372 1 Fitting, Straight JIC/ORB 6 3290805 2 Nut M8 7 4641329 1 Valve, Flushing Loop 7 7021639 2 Cartridge, Valve 7 7017496 2 Seal Kit - 7021639 Cartridge 8 4811700 3 Washer M6 9 4811900 4 Washer M8 10 1001152155 1 Fitting, Straight JIC/ORB 11 1001199923 2 Fitting, Tee FORB/FORB/ORB 12 1001199929 2 Fitting, Straight JIC/ORB 13 1001200018 1 Bracket 14 1001146312 1 Hose 15 1001200020 1 Hose 16 1001200021 1 Hose

FIGURE 7 9. HYDRAULIC FLUSHING LOOP INSTALLATION 18RS

Next Article

FIGURE 6 9. STEER CYLINDER ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

REV
