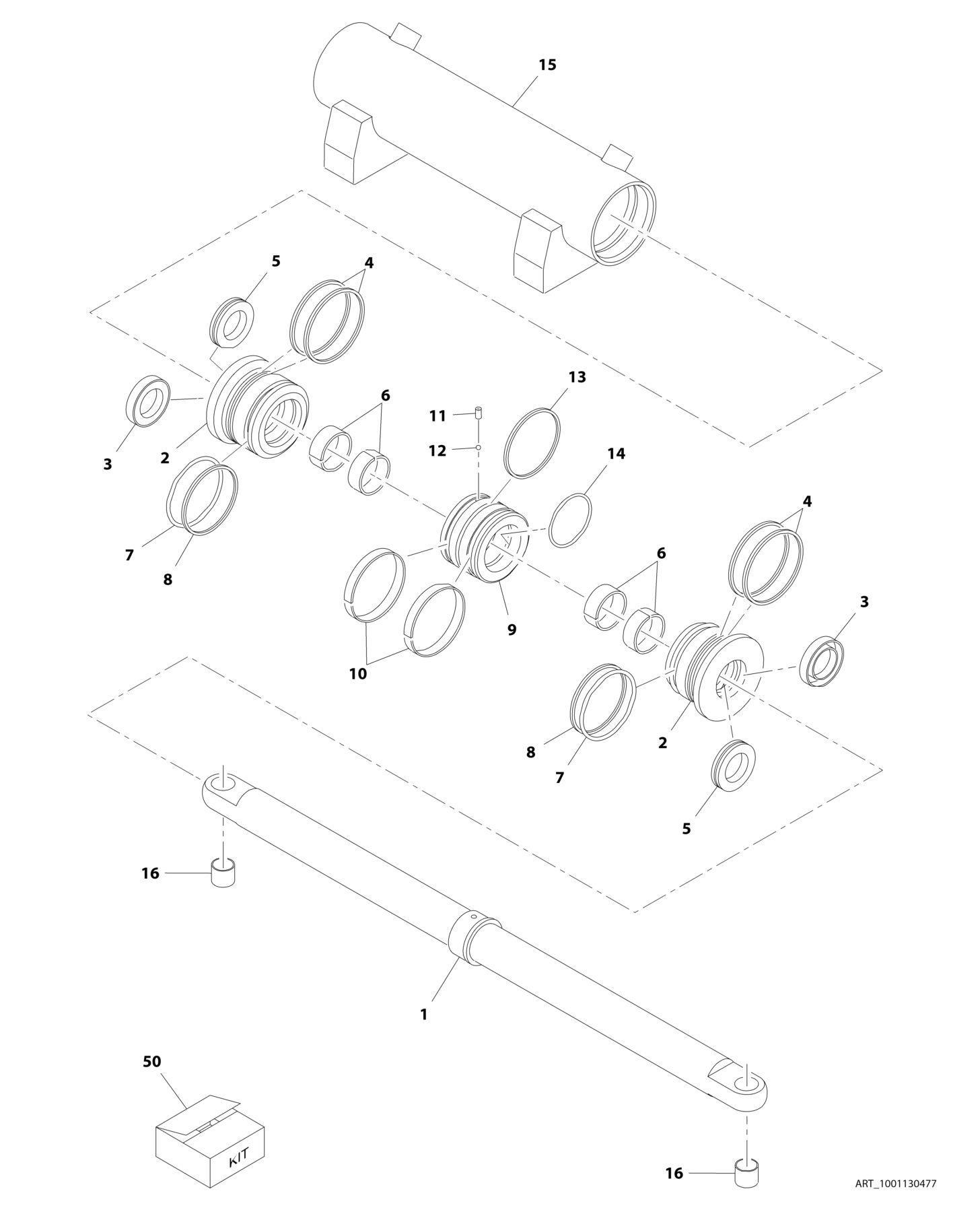

FIGURE 6 9. STEER CYLINDER ASSEMBLY

FIGURE 6-9. STEER CYLINDER ASSEMBLY

FIGURE 6-9. STEER CYLINDER ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

1001130477 Ref STEER CYLINDER ASSEMBLY 1 70004220 1 Rod 2 70004221 2 Head 3 See Note NSS Wiper (Note: Use Item 50) 4 70003636 4 Ring, Locking 5 See Note NSS Seal, Rod (Note: Use Item 50) 6 See Note NSS Ring, Wear (Note: Use Item 50) 7 See Note NSS O-Ring (Note: Use Item 50) 8 See Note NSS Ring, Back-up (Note: Use Item 50) 9 70004222 1 Piston 10 See Note NSS Ring, Wear (Note: Use Item 50) 11 70004223 1 Setscrew 12 70004224 1 Ball 13 See Note NSS Seal, Piston (Note: Use Item 50) 14 See Note NSS O-Ring (Note: Use Item 50) 15 70004225 1 Barrel 16 70004226 2 Bearing 50 70004227 1 Seal Kit (Includes Items 3, 5-8, 10, 13 & 14)

REV

E
