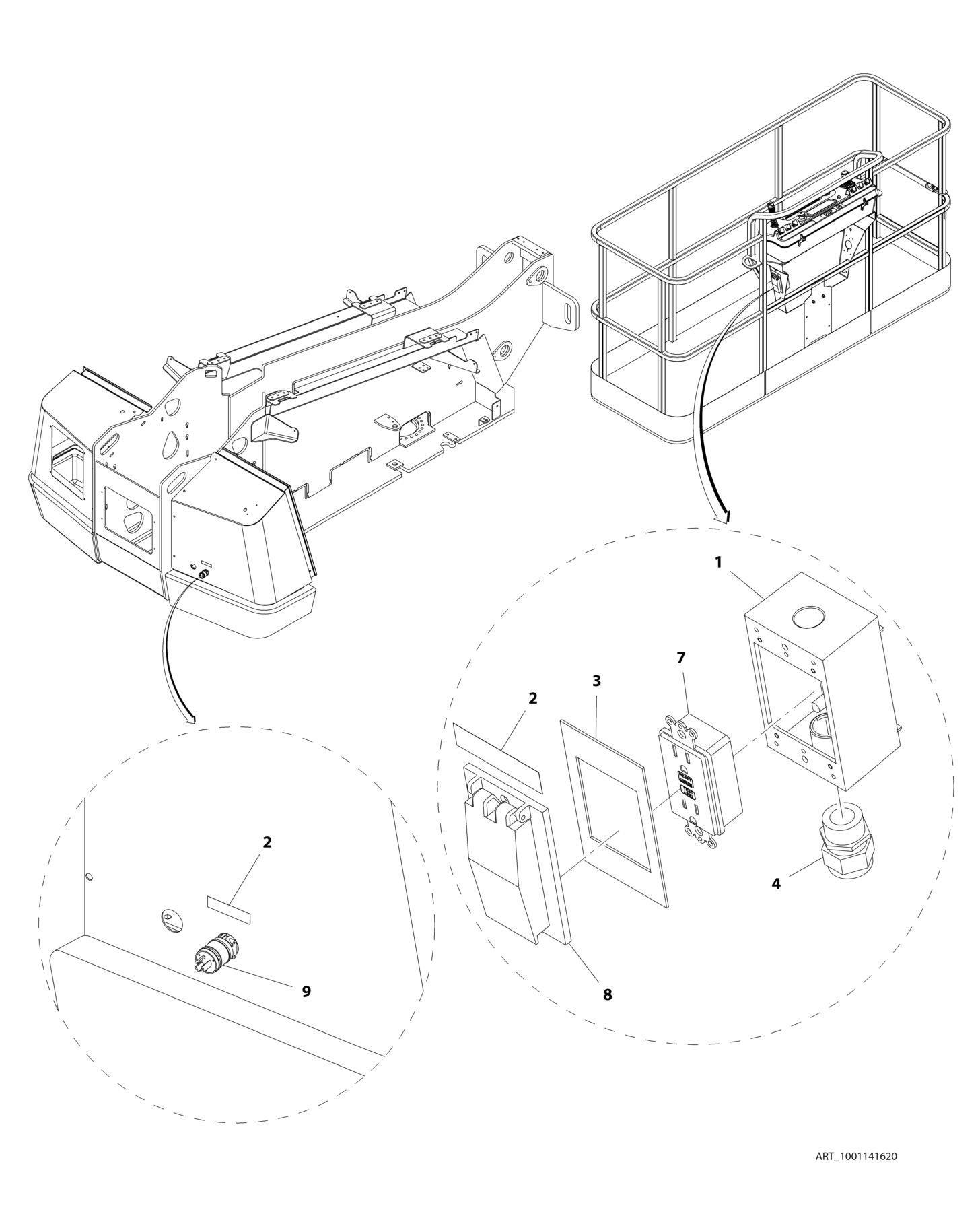

FIGURE 8-2. AC AT PLATFORM RECEPTACLE COMPONENTS - 110V GFI (ANSI EXPORT SPECS)

ITEM PART NUMBER QTY

DESCRIPTION

1001141620 Ref AC AT PLATFORM RECEPTACLE COMPONENTS - 110V GFI (ANSI EXPORT SPECS) 1 0860038 1 Box, Switch 2 3251243 2 Decal - Voltage 3 3960422 1 Gasket 4 4460071 1 Connector, Strain Relief 6 4460315 1 Receptacle (Not Shown) 7 4460346 1 Receptacle 8 1001110873 1 Shield, Cover 9 4460205 1 Plug, Male
