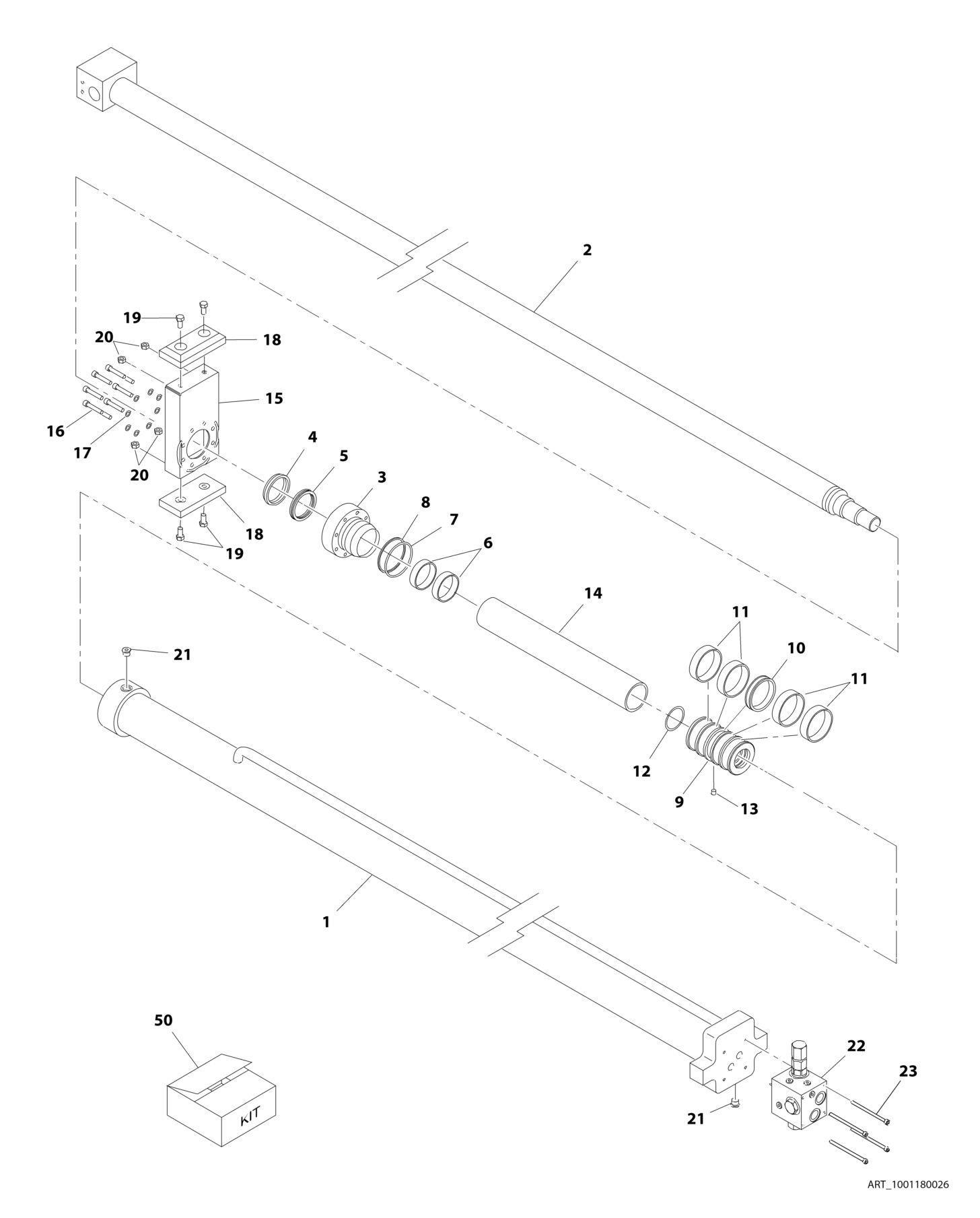

FIGURE 6 12. TELESCOPE CYLINDER ASSEMBLY 18RSJ

FIGURE 6-12. TELESCOPE CYLINDER ASSEMBLY - 18RSJ

FIGURE 6-12. TELESCOPE CYLINDER ASSEMBLY - 18RSJ

ITEM PART NUMBER QTY

DESCRIPTION

1001180026 Ref TELESCOPE CYLINDER ASSEMBLY - 18RSJ 1 70005583 1 Barrel 2 70005584 1 Rod 3 70005585 1 Head 4 See Note NSS Wiper (Note: Use Item 50) 5 See Note NSS Seal, Rod (Note: Use Item 50) 6 See Note NSS Ring, Wear (Note: Use Item 50) 7 See Note NSS O-Ring (Note: Use Item 50) 8 See Note NSS Ring, Back-up (Note: Use Item 50) 9 70005586 1 Piston 10 See Note NSS Seal, Piston (Note: Use Item 50) 11 See Note NSS Ring, Wear (Note: Use Item 50) 12 See Note NSS O-Ring (Note: Use Item 50) 13 70005587 1 Setscrew M6 x 6 14 70005588 1 Spacer 15 70005589 1 Bracket 16 70005590 8 Capscrew M8 x 55 17 70005591 8 Washer M8 18 70005592 2 Pad, Wear 19 70005593 4 Capscrew M10 x 30 20 70005594 4 Nut M10 21 70023371 2 Plug 9/16 22 1001133245 1 Valve Block Assembly (See VALVE BLOCK ASSEMBLY for Breakdown) 23 70005595 4 Capscrew M6 x 100 50 70005596 1 Seal Kit - 1001180026 Cylinder (Includes Items 4-7 & 10-12)

REV

B
