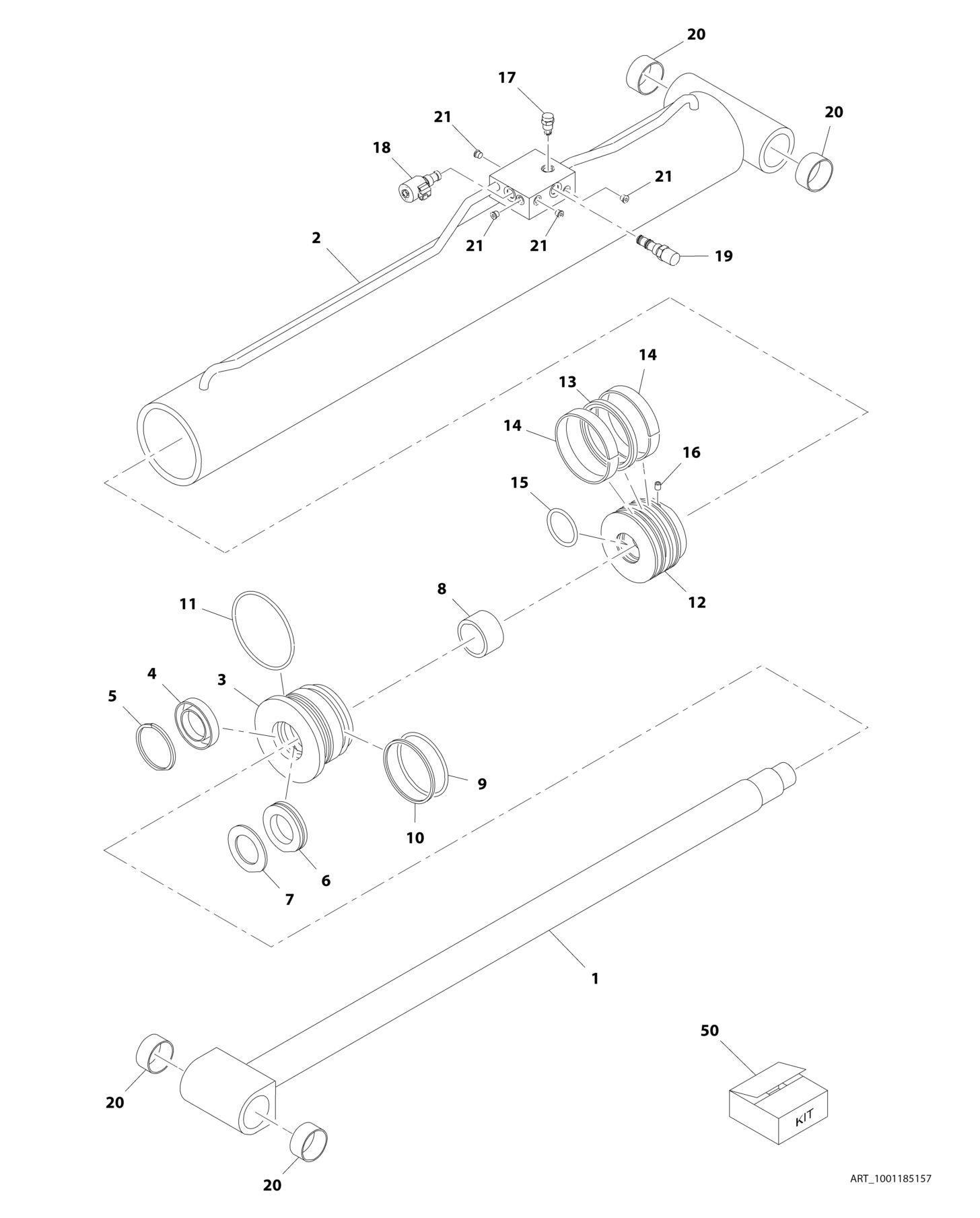

FIGURE 6 6. LIFT CYLINDER ASSEMBLY MAIN BOOM 18RSJ
ITEM PART NUMBER QTY
DESCRIPTION
1001185157 Ref LIFT CYLINDER ASSEMBLY - MAIN BOOM - 18RSJ 1 70005437 1 Rod 2 70005436 1 Barrel 3 70004190 1 Head 4 See Note NSS Wiper (Note: Use Item 50) 5 70023379 1 Ring, Retaining 6 See Note NSS Seal, Rod (Note: Use Item 50) 7 See Note NSS Ring, Back-up (Note: Use Item 50) 8 70023377 1 Bearing 9 See Note NSS O-Ring (Note: Use Item 50) 10 See Note NSS Ring, Back-up (Note: Use Item 50) 11 See Note NSS O-Ring (Note: Use Item 50) 12 70004189 1 Piston 13 See Note NSS Seal, Piston (Note: Use Item 50) 14 See Note NSS Ring, Wear (Note: Use Item 50) 15 See Note NSS O-Ring (Note: Use Item 50) 16 70005435 1 Setscrew 17 4641390 1 Cartridge, Check Valve 17 7017496 1 Seal Kit - Valve 18 70002401 1 Cartridge, Solenoid Valve 18 7017496 1 Seal Kit - Valve 18 70003788 1 Coil 18 7022390 1 Nut, Coil 19 1001165131 1 Cartridge, Pressure Valve 19 7012925 1 Seal Kit - Valve 20 70005434 4 Bearing 21 2220885 4 Plug 9/16 50 70005432 1 Seal Kit (Includes Items 4, 6, 7, 9-11 & 13-15)
REV
A
