FIGURE 6 8. MASTER CYLINDER ASSEMBLY 18RSJ

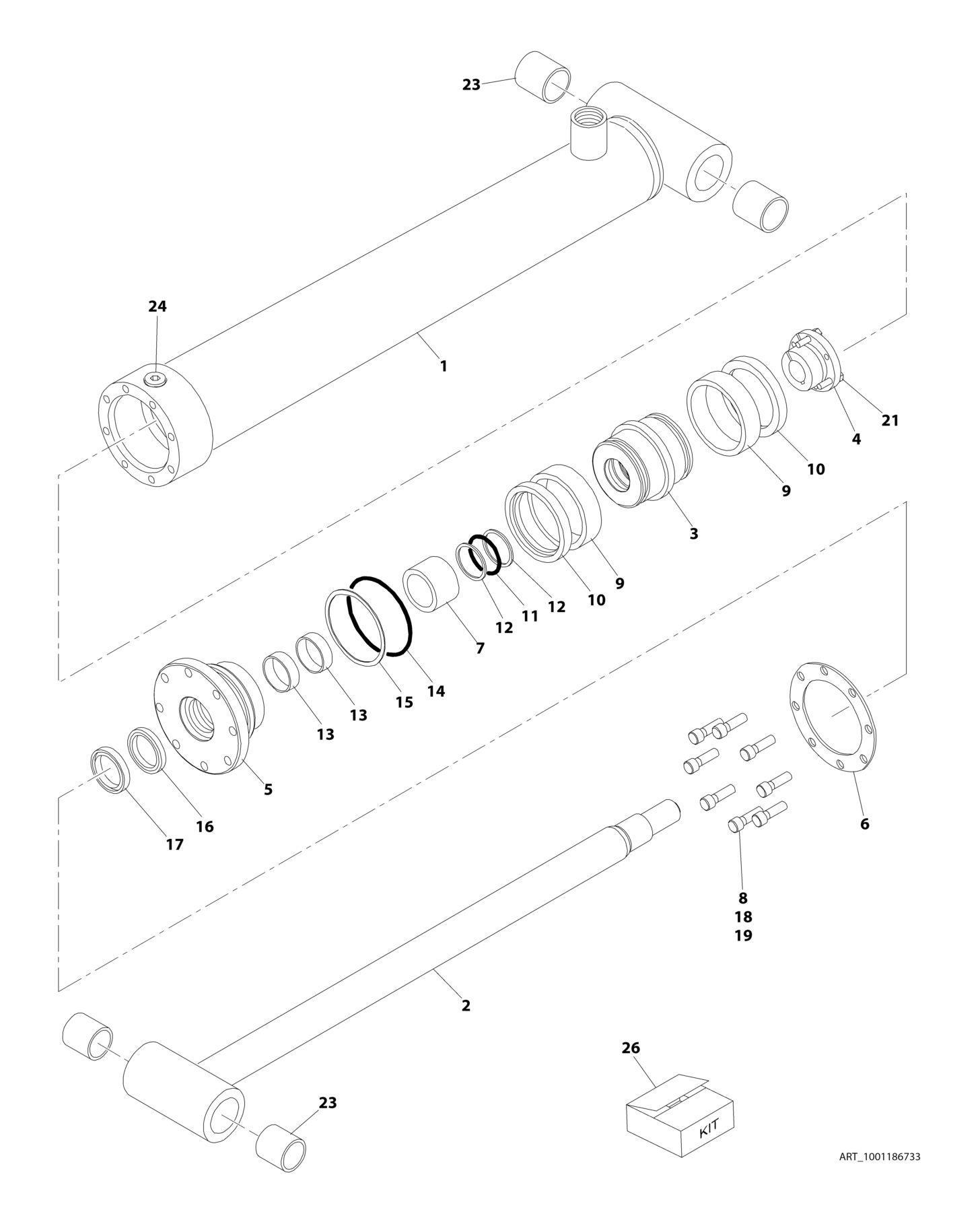

FIGURE 6-8. MASTER CYLINDER ASSEMBLY - 18RSJ

FIGURE 6-8. MASTER CYLINDER ASSEMBLY - 18RSJ

ITEM PART NUMBER QTY

DESCRIPTION

1001186733 Ref MASTER CYLINDER ASSEMBLY - 18RSJ 1 1683949 1 Barrel 2 1683963 1 Rod 3 3480188 1 Piston 4 0961894 1 Bushing, Tapered (Use Item 8 in place of supplied Bolts) 5 1683055 1 Head 6 3760369 1 Ring, Washer 7 1001186734 1 Spacer 8 3931620 8 Capscrew 3/8 x 1-1/4 9 See Note NSS Seal (Note: Use Item 26) 10 See Note NSS Ring, Lock (Note: Use Item 26) 11 See Note NSS O-Ring (Note: Use Item 26) 12 See Note NSS Ring, Back-up (Note: Use Item 26) 13 See Note NSS Ring, Wear (Note: Use Item 26) 14 See Note NSS Ring, Back-up (Note: Use Item 26) 15 See Note NSS O-Ring (Note: Use Item 26) 16 See Note NSS Seal, Rod (Note: Use Item 26) 17 See Note NSS Wiper (Note: Use Item 26) 18 0100011 AR Compound, Locking 19 0100038 AR Primer, Locking 21 0630535 3 Bolt 1/4 x 1-1/8 23 0961951 4 Bushing 24 2220885 1 Plug, O-Ring #6 26 2901301 1 Seal Kit (Includes Items 9-17)

REV

A
