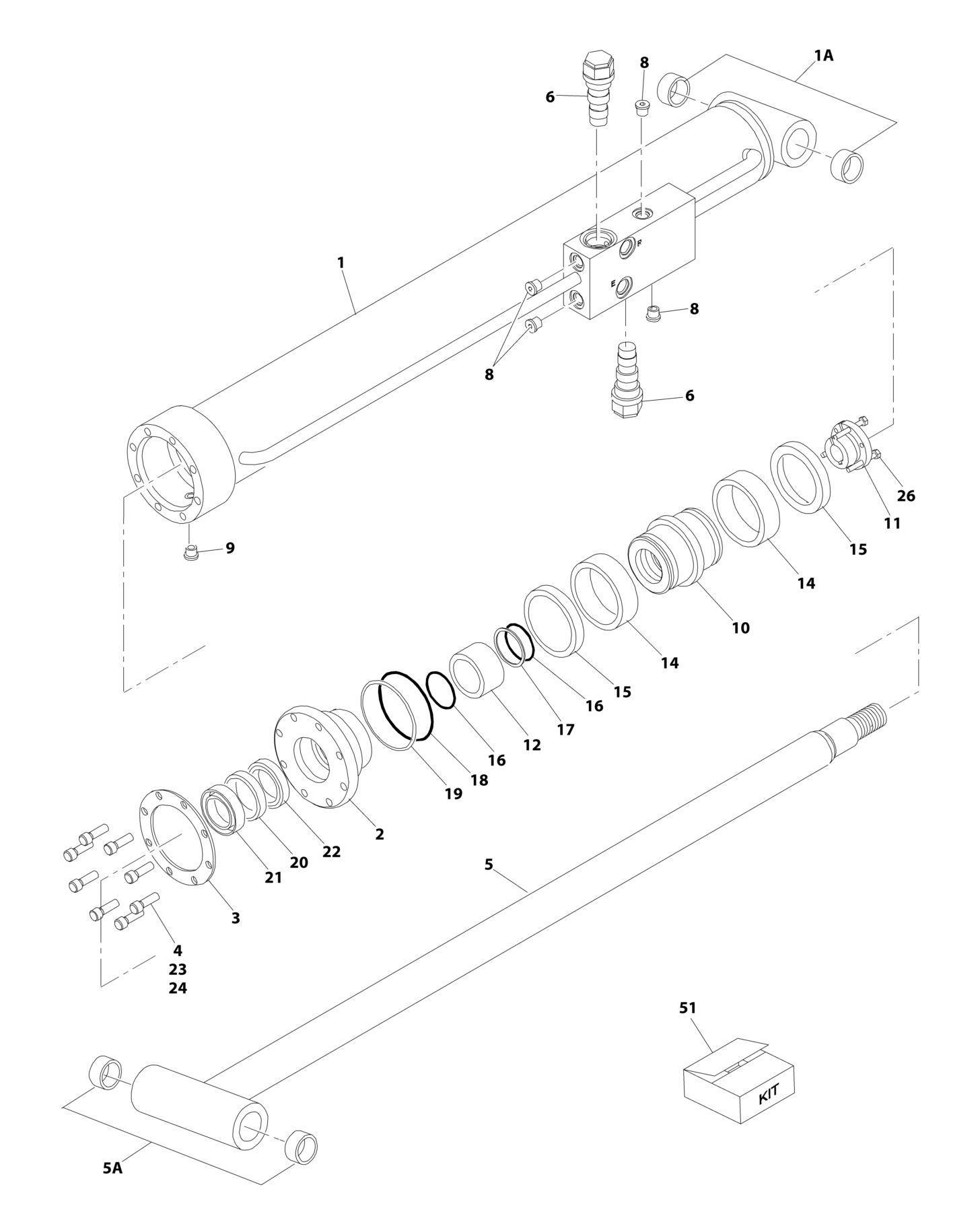

FIGURE 6 3. LIFT CYLINDER ASSEMBLY JIB 18RSJ (Prior to SN B300003130
ITEM PART NUMBER QTY
DESCRIPTION
1683609 Ref LIFT CYLINDER ASSEMBLY - JIB - 18RSJ (Prior to SN
B300003130)
1 1684089 1 Barrel 1A 0962336 2 Bushing 2 1683053 1 Head 3 3760368 1 Ring, Washer 4 3931516 8 Capscrew 5/16 x 1 5 1684090 1 Rod 5A 0962336 2 Bushing 6 4640509 2 Cartridge, Valve 6 2900792 2 Seal Kit - 4640509 Valve 8 2220883 2 Plug, O-Ring #4 9 2220885 1 Plug, O-Ring #6 10 3480210 1 Piston 11 0961893 1 Bushing, Tapered 12 4100100 1 Spacer, Tube 14 See Note NSS Seal (Note: Use Item 51) 15 See Note NSS Ring, Lock (Note: Use Item 51) 16 See Note NSS O-Ring (Note: Use Item 51) 17 See Note NSS Ring, Back-up (Note: Use Item 51) 18 See Note NSS O-Ring (Note: Use Item 51) 19 See Note NSS Ring, Back-up (Note: Use Item 51) 20 See Note NSS Seal, Rod (Note: Use Item 51) 21 See Note NSS Wiper (Note: Use Item 51) 22 See Note NSS Ring, Wear (Note: Use Item 51) 23 0100011 AR Compound, Locking 24 0100038 AR Primer, Locking 26 0630534 3 Bolt #10 x 1 51 2901303 1 Seal Kit Options (Includes Items 14-22)
REV
I
