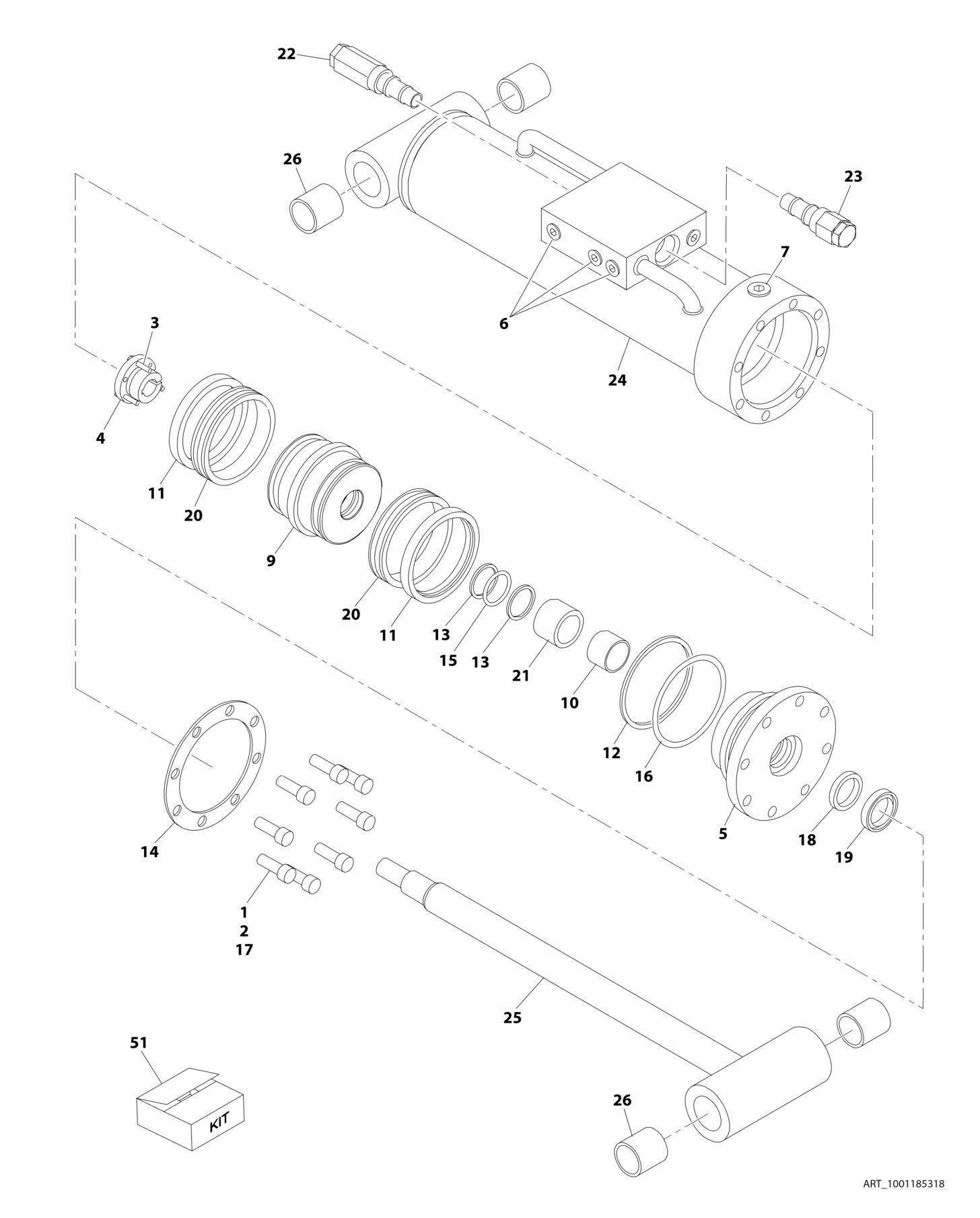

FIGURE 6 2. LEVEL (PLATFORM SLAVE) CYLINDER ASSEMBLY 18RSJ
ITEM PART NUMBER QTY DESCRIPTION REV
1001185318 Ref LEVEL (PLATFORM SLAVE) CYLINDER ASSEMBLY - 18RSJ A 1 0100011 AR Compound, Locking 2 0100038 AR Primer, Locking 3 0630535 3 Bolt 1/4 x 1-1/8 4 0961894 1 Bushing, Tapered (Includes Item 25) 5 1683055 1 Head 6 2220883 8 Plug, O-Ring 7 2220885 1 Plug, O-Ring 9 3480188 1 Piston 10 See Note NSS Ring, Wear (Note: Use Item 51) 11 See Note NSS Ring, Lock (Note: Use Item 51) 12 See Note NSS Ring, Back-up (Note: Use Item 51) 13 See Note NSS Ring, Back-up (Note: Use Item 51) 14 3760369 1 Ring, Washer 15 See Note NSS O-Ring (Note: Use Item 51) 16 See Note NSS O-Ring (Note: Use Item 51) 17 3931620 8 Capscrew 3/8 x 1-1/4 18 See Note NSS Seal, Rod (Note: Use Item 51) 19 See Note NSS Wiper (Note: Use Item 51) 20 See Note NSS Seal (Note: Use Item 51) 21 4566468 1 Spacer 22 4640509 1 Cartridge, Valve 22 2900792 1 Seal Kit - 4640509 Valve 23 4640932 1 Cartridge, Valve 23 7011112 1 Seal Kit - 4640932 Valve 24 1001185319 1 Barrel Weldment 25 1001185321 1 Rod Weldment 26 0961948 4 Bushing 51 2901301 1 Seal Kit (Includes Items 10-13, 15, 16 & 18-20)
