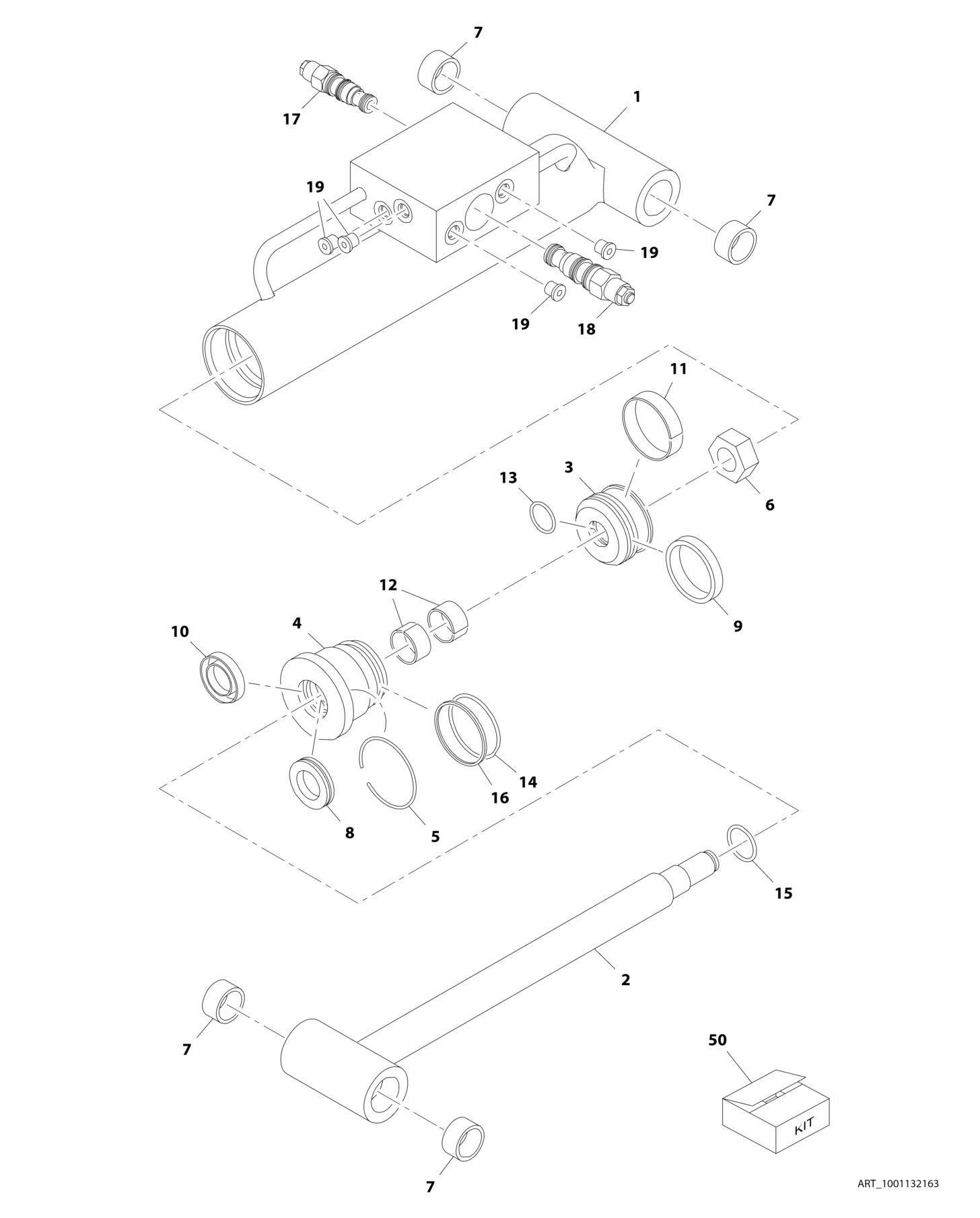

FIGURE 6 1. LEVEL (PLATFORM SLAVE) CYLINDER ASSEMBLY 18RS
ITEM PART NUMBER QTY DESCRIPTION REV
1001132163 Ref LEVEL (PLATFORM SLAVE) CYLINDER ASSEMBLY - 18RS D 1 70004217 1 Barrel 2 70004218 1 Rod 3 70004212 1 Piston 4 70004210 1 Head 5 70004214 1 Lock Wire 6 70004213 1 Locknut 7 70004219 4 Bearing 8 See Note NSS Seal, Rod (Use Item 50) 9 See Note NSS Seal, Piston (Use Item 50) 10 See Note NSS Wiper (Use Item 50) 11 See Note NSS Ring, Wear (Use Item 50) 12 See Note NSS Ring, Wear (Use Item 50) 13 See Note NSS O-Ring (Use Item 50) 14 See Note NSS O-Ring (Use Item 50) 15 See Note NSS O-Ring (Use Item 50) 16 See Note NSS Ring, Back-up (Use Item 50) 17 70002413 NLA Cartridge, Valve (Use p/n 70005209) (SN B300000100 through
B300001209)
17 70005209 1 Cartridge, Valve (SN B300001210 to Present) 17 2900770 1 Seal Kit - Valve 18 70002388 1 Cartridge, Valve 18 2900770 1 Seal Kit - Valve 19 See Note 4 Plug (Note: Not Available - Purchase Locally) 50 70004216 1 Seal Kit (Includes Items 8-16)
