FIGURE 5 14. CONTROLLER ASSEMBLY (LIFT AND SWING

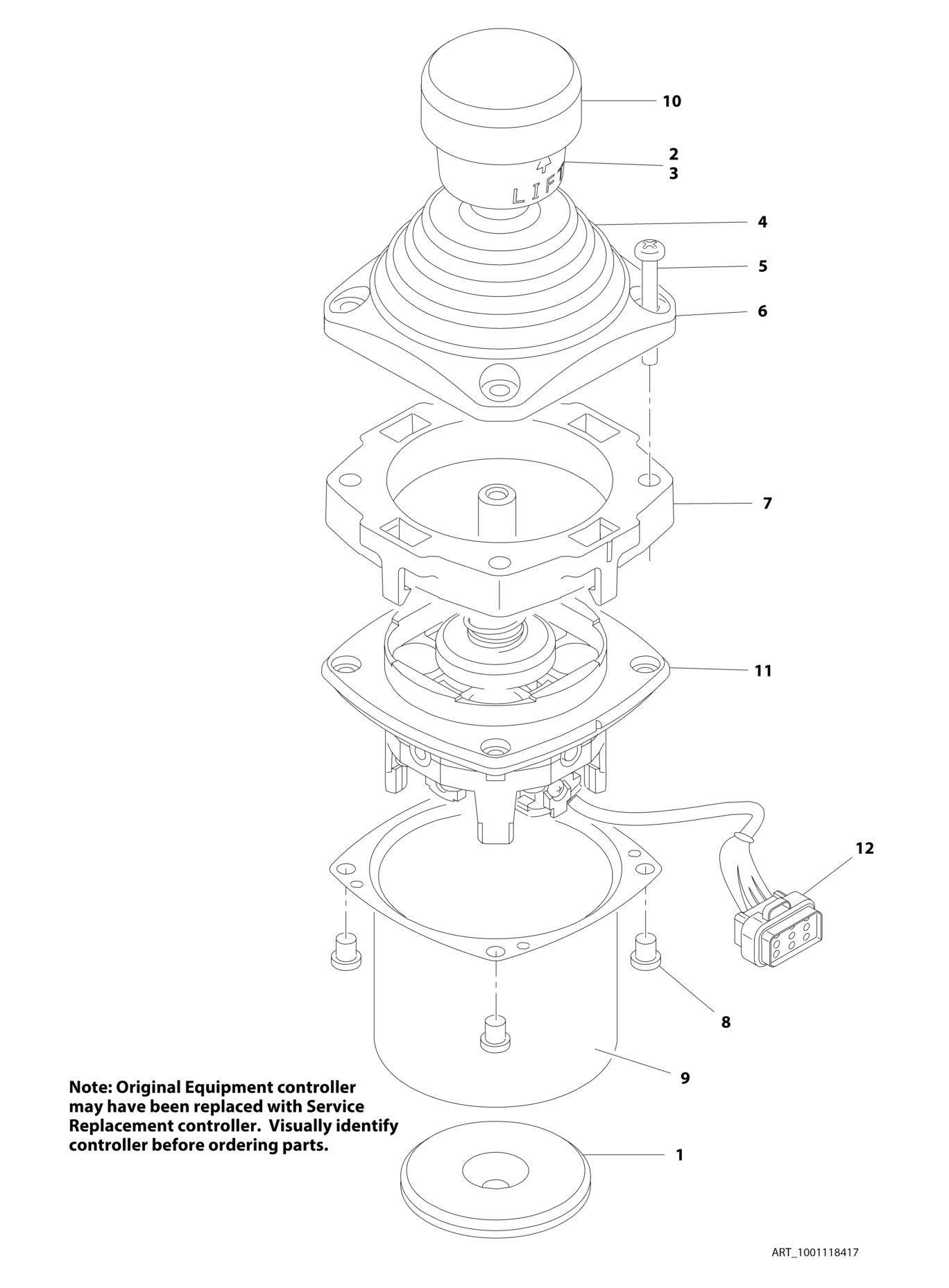

FIGURE 5-14. CONTROLLER ASSEMBLY (LIFT AND SWING)

FIGURE 5-14. CONTROLLER ASSEMBLY (LIFT AND SWING)

ITEM PART NUMBER QTY DESCRIPTION

Ref USAGE CHART: Ref - 18RS (Original Equipment) (Prior to SN B300001441) Ref - 18RSJ (Original Equipment) Ref Note: Original Equipment controller may have been replaced with Service Replacement controller. Visually identify controller before ordering parts. 1001118417 Ref CONTROLLER ASSEMBLY (LIFT AND SWING) Ref Note: Use p/n 1001129555 as Replacement. 1 70002730 1 Gasket 2 7003928 1 Spring 3 7022808 1 Cap, Lift 4 70002731 1 Boot 5 70002732 4 Screw 6 7022815 1 Bezel 7 70002733 1 Adapter 8 70002734 4 Screw 9 70002735 1 Can, Enclosure 10 70002906 1 Cap 11 See Note NSS Mechanical Assembly (Note: Purchase Kit p/n 1001129555) 12 7022819 1 Connector - 8 Position 12 4460871 6 Socket, Female

REV

E
