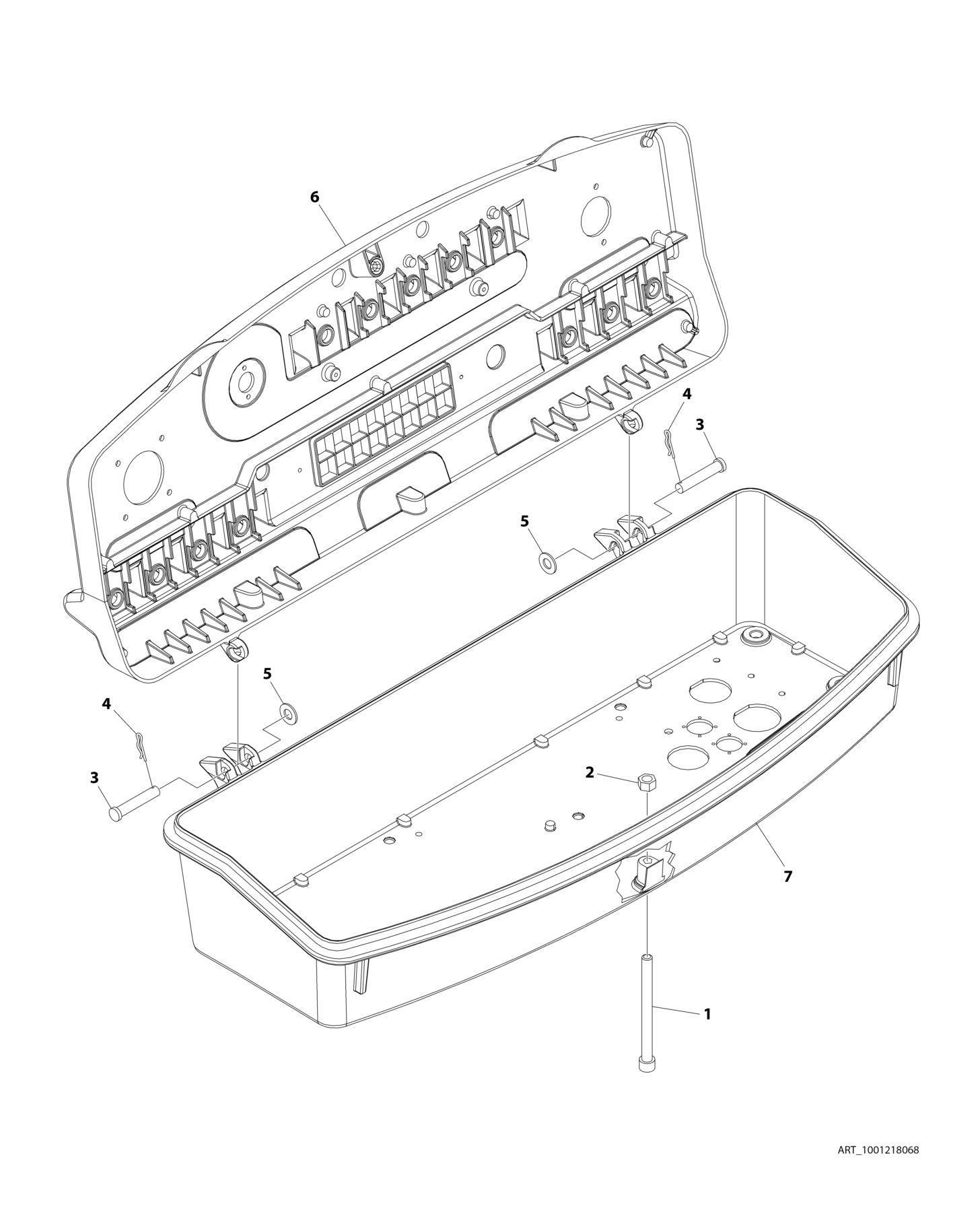

FIGURE 5-13. CONSOLE BOX ASSEMBLY (SN B300001836 to Present)

ITEM PART NUMBER QTY DESCRIPTION REV

1001218068 Ref CONSOLE BOX ASSEMBLY (SN B300001836 to Present) C 1 0630568 1 Screw 3/8 x 4-1/2 2 3311601 1 Nut 3/8 3 3430616 2 Pin, Clevis 4 3470003 2 Pin, Cotter 5 4711600 2 Washer 3/8 6 1001200803 1 Console Box, Top 7 1001201436 1 Console Box, Bottom
