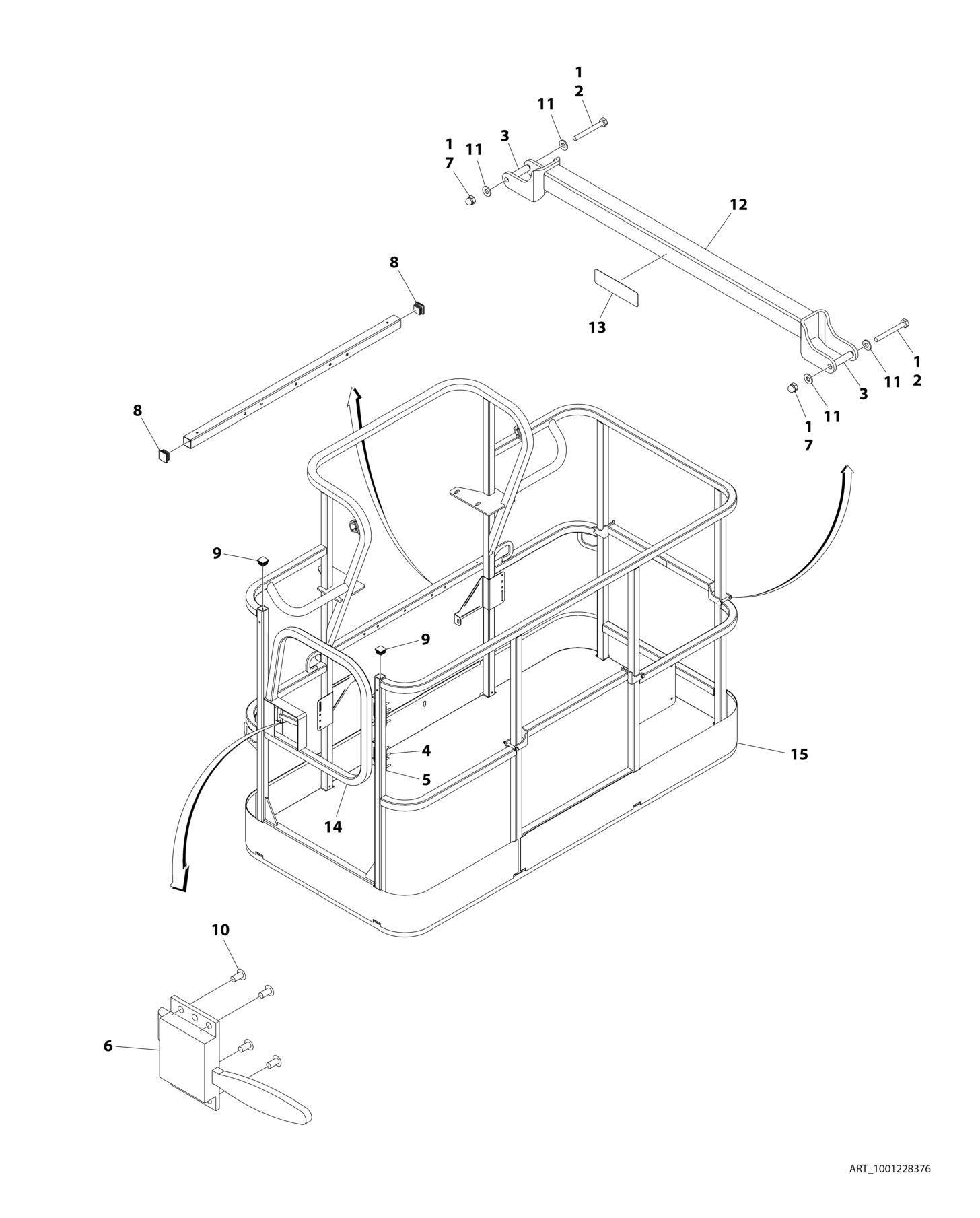

FIGURE 5 8. PLATFORM ASSEMBLY 3FT X 6FT (91.5CM X 1.83M) WITH TRI ENTRY (1 GATE / 2 DROP BARS
ITEM PART NUMBER QTY
DESCRIPTION
1001228376 Ref PLATFORM ASSEMBLY - 36IN x 6FT (91.5CM x 1.83M) Ref Note: Platform and Mesh must be ordered separately for Platforms with Mesh. See SPECIAL OPTIONS SECTION for Mesh Installations. Ref Note: Replacement Decals Must be Ordered Separately - See DECAL SECTION. 1 0100011 AR Compound, Locking 2 0641418 4 Bolt 1/4 x 2-1/4 3 0961845 4 Bushing 4 2080040 16 Fastener 5 2600281 2 Hinge 6 2940074 1 Latch 7 3300151 4 Nut 1/4 8 3520072 3 Plug 9 3520198 2 Plug 10 3820020 4 Rivet 11 4711400 8 Washer 1/4 12 1001138494 2 Bar, Drop 13 1001140429 2 Decal - Drop Bar 14 1001144629 1 Gate 15 See Note NSS Platform (Note: Not Available - Purchase Platform Assembly)
REV
A
