FIGURE 5 6. PLATFORM CONSOLE ASSEMBLY 18RSJ

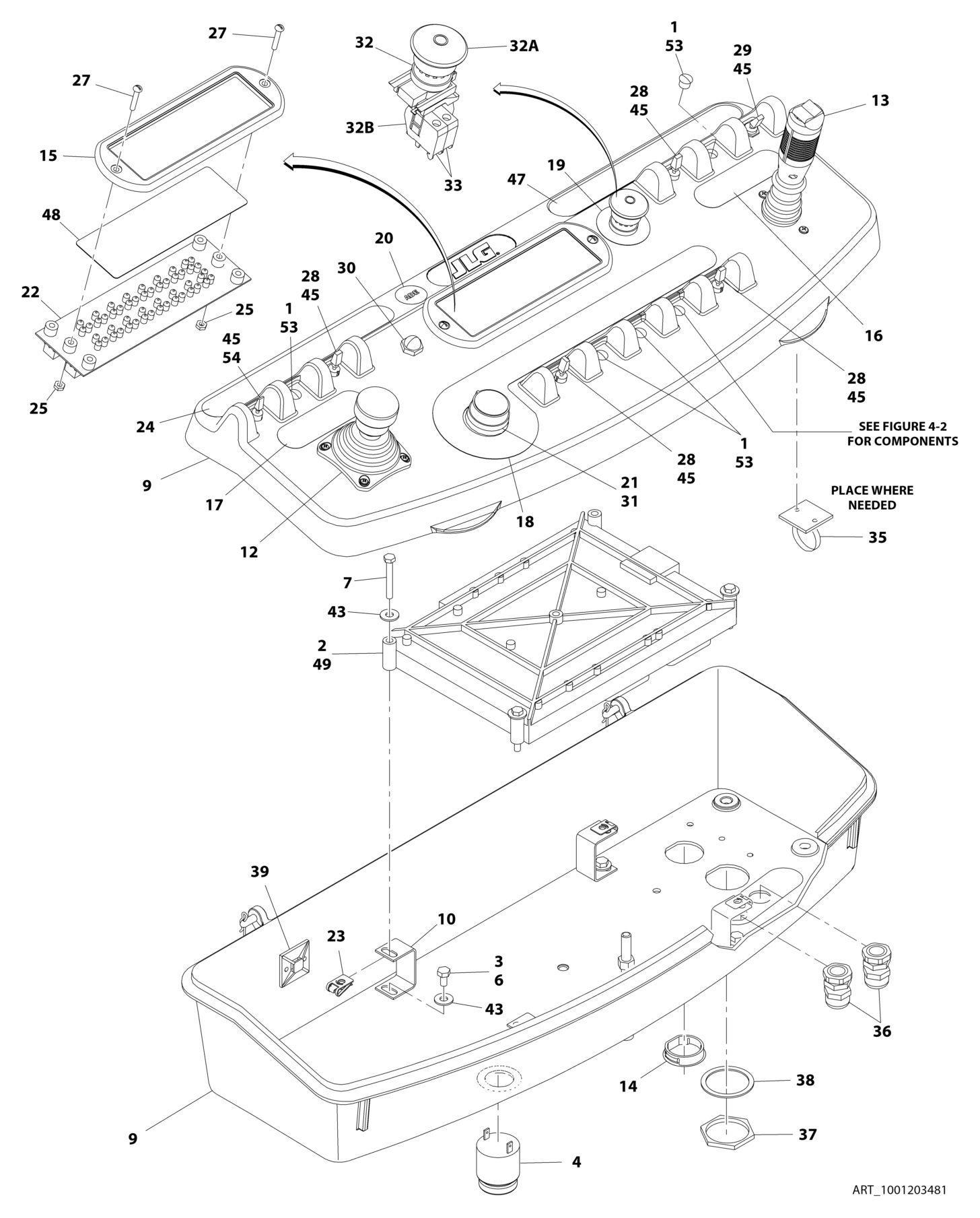

FIGURE 5-6. PLATFORM CONSOLE ASSEMBLY - 18RSJ
FIGURE 5-6. PLATFORM CONSOLE ASSEMBLY - 18RSJ
ITEM PART NUMBER QTY
DESCRIPTION
1001203481 Ref PLATFORM CONSOLE ASSEMBLY - 18RSJ 1 0100009 AR Sealant 2 0100048 AR Grease, Dielectric 3 0100011 AR Compound, Locking 4 0140011 1 Alarm 6 0641404 4 Bolt 1/4 x 1/2 7 0700617 4 Bolt M6 x 45 8 1001203482 1 Platform Box Harness (Not Shown - See ELECTRICAL SECTION for Breakdown) 9 0861441 1 Box, Console (See CONSOLE BOX ASSEMBLY for Breakdown) 10 0902571 4 Bracket, Support 12 1001118417 NLA Controller Assembly (Lift and Swing) (Original Equipment) (See CONTROLLER ASSEMBLY (LIFT AND SWING) for Breakdown) (Use p/n 1001129555) 12 1001129555 1 Controller Assembly (Lift and Swing) (Service Replacement) (See CONTROLLER ASSEMBLY (LIFT AND SWING) for Breakdown) 13 1001118416 NLA Controller Assembly (Drive and Steer) (Original Equipment) (See CONTROLLER ASSEMBLY (DRIVE AND STEER) for Breakdown) 13 1001166538 1 Controller Assembly (Drive and Steer) (Service Replacement) (See CONTROLLER ASSEMBLY (DRIVE AND STEER) for Breakdown) 14 1001110434 1 Plug, Hole 15 1671176 1 Bezel 16 1702565 1 Decal - Drive and Steer 17 1702566 1 Decal - Lift and Swing 18 1702567 1 Decal - Function Speed 19 1704260 1 Decal - EMS 20 1705132 1 Decal - ADE 21 2560136 1 Handle, Knob 22 2920154 1 Panel, LED Light 23 8305919 4 Nut, Retainer M6 24 1702676 1 Decal - Horn 25 3311005 2 Nut #10 27 3911018 2 Bolt #10 x 1-1/8 28 4360328 4 Switch, Toggle 29 4360330 1 Switch, Toggle 30 4360387 1 Switch, Pushbutton 31 4360407 1 Controller, Speed 31 See Note 1 Gasket "Top Hat" (Included with Switch) (Note: Not Available Purchase Complete Controller) 31 70003784 1 Seal 32 4360475 1 Switch, Emergency Stop 32A 7020175 1 Cap, Red 32B 7020176 1 Contact Block 33 4360476 2 Block, Contact 35 4460234 3 Base, Mounting 36 4460428 2 Connector, Strain Relief 37 4460470 1 Nut, Terminal 38 4460471 1 Lockwasher, Terminal 39 4460488 1 Base, Mounting 41 4460905 5 Seal, Plug (Not Shown)
REV
E
ITEM PART NUMBER QTY DESCRIPTION
43 4751400 8 Washer 1/4 45 3790012 8 O-Ring 47 1001131168 1 Decal - Stop 48 1001164374 1 Decal - Display 49 1001157196 1 Controller, Module (Re-calibration Required when Replaced) 52 4460708 1 Receptacle, Female 15 Position (Not Shown) 53 3520054 5 Plug, Hole 54 4360331 1 Switch, Toggle
