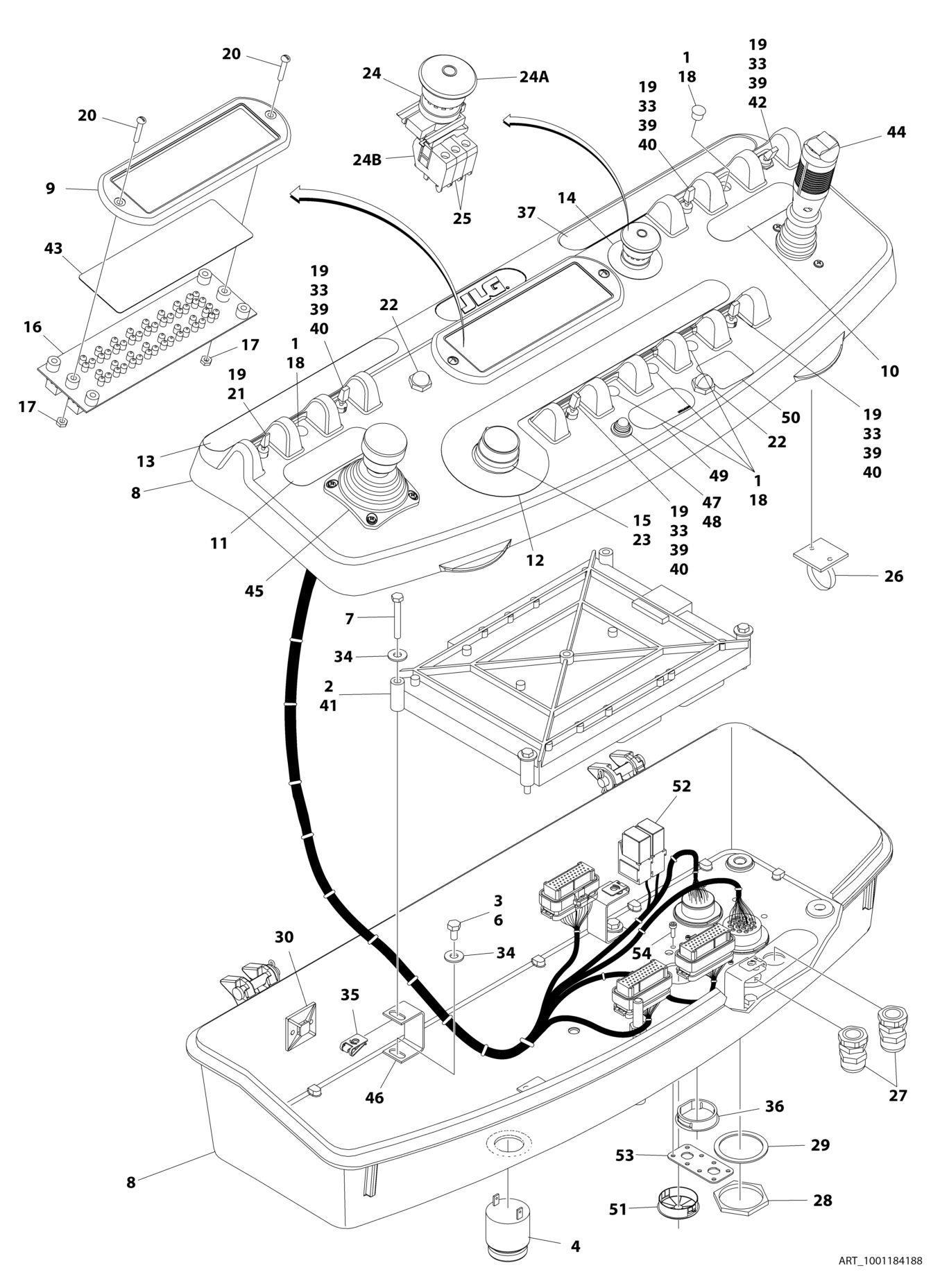

FIGURE 5 5. PLATFORM CONSOLE ASSEMBLY 18RS (SN B300001441 to Present
ITEM PART NUMBER QTY
DESCRIPTION
1001184188 Ref PLATFORM CONSOLE ASSEMBLY - 18RS (SN B300001441 to
Present)
1 0100009 AR Sealant 3 0100048 AR Grease, Dielectric 2 0100011 AR Compound, Locking 4 0140011 1 Alarm 6 0641404 4 Bolt 1/4 x 1/2 7 0700617 4 Bolt M6 x 45 8 0861441 NLA Box, Console (See CONSOLE BOX ASSEMBLY for Breakdown) (Use p/n 1001201886) (Prior to SN B300001540) 8 1001201886 1 Box, Console (See CONSOLE BOX ASSEMBLY for Breakdown)
(SN B300001540 to Present)
9 1671176 1 Bezel 10 1702565 1 Decal - Drive and Steer 11 1702566 1 Decal - Lift and Swing 12 1702567 1 Decal - Function Speed 13 1702676 1 Decal - Horn 14 1704260 1 Decal - EMS 15 2560136 1 Handle, Knob 16 2920154 1 Panel, LED Light 17 3311005 2 Nut #10 18 3520054 5 Plug, Hole 19 3790012 8 O-Ring 20 3911018 2 Bolt #10 x 1-1/8 21 4360331 1 Switch, Toggle 22 4360387 1 Switch, Pushbutton 23 4360407 1 Controller, Speed 23 See Note 1 Gasket "Top Hat" (Included with Switch) (Note: Not Available Purchase Complete Controller) 23 70003784 1 Seal 24 4360475 1 Switch, Emergency Stop 24A 7020175 1 Cap, Red 24B 7020176 1 Contact Block 25 4360476 2 Block, Contact 26 4460234 3 Base, Mounting 27 4460428 2 Connector, Strain Relief 28 4460470 1 Nut, Terminal 29 4460471 1 Lockwasher, Terminal 30 4460488 1 Base, Mounting 31 4460708 1 Receptacle, Female 15 Position (Not Shown) 32 4460905 5 Seal, Plug (Not Shown) 33 4740397 5 Washer, Spacer 34 4751400 8 Washer 1/4 35 8305919 4 Nut, Retainer M6 36 1001110434 1 Plug, Hole 37 1001131168 1 Decal - Stop 38 1001133752 1 Platform Box Harness (Not Shown - See ELECTRICAL SECTION for Breakdown) 39 1001155044 5 Nut 15/32 40 1001155045 4 Switch, Toggle 41 1001157196 1 Controller, Module (Re-calibration Required when Replaced)
REV
A
ITEM PART NUMBER QTY DESCRIPTION
42 1001159256 1 Switch, Toggle 43 1001164374 1 Decal - Display 44 1001166538 1 Controller Assembly (Drive and Steer) (See CONTROLLER ASSEMBLY (DRIVE AND STEER) for Breakdown) 45 1001166539 1 Controller Assembly (Lift and Swing) (See CONTROLLER ASSEMBLY (LIFT AND SWING) for Breakdown) (Use p/n 1001129555) 46 1001172760 4 Bracket
