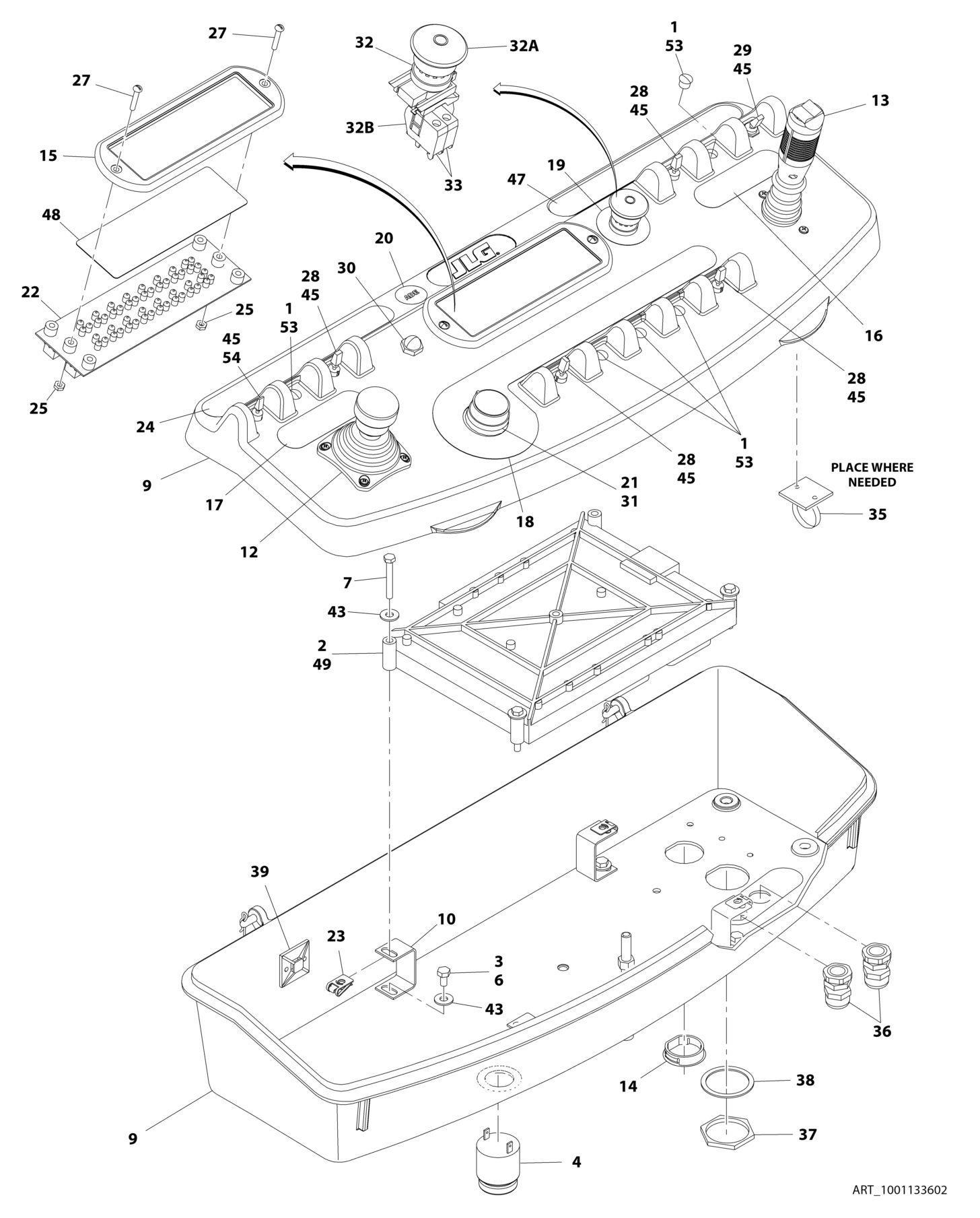

FIGURE 5 4. PLATFORM CONSOLE ASSEMBLY 18RS (Prior to SN B300001441
ITEM PART NUMBER QTY
DESCRIPTION
1001133602 Ref PLATFORM CONSOLE ASSEMBLY - 18RS (Prior to SN
B300001441)
1 0100009 AR Sealant 2 0100048 AR Grease, Dielectric 3 0100081 AR Adhesive 4 0140011 1 Alarm 6 0641404 4 Bolt 1/4 x 1/2 7 0700617 4 Bolt M6 x 45 8 1001133752 1 Platform Box Harness (Not Shown - See ELECTRICAL SECTION for Breakdown) (Prior to SN B300001836) 8 1001217358 1 Platform Box Harness (Not Shown - See ELECTRICAL SECTION for Breakdown) (SN B300001836 to Present) 9 0861441 NLA Box, Console (See CONSOLE BOX ASSEMBLY for Breakdown) (Use p/n 1001218068) 10 0902571 4 Bracket, Support 12 1001118417 NLA Controller Assembly (Lift and Swing) (See CONTROLLER ASSEMBLY (LIFT AND SWING) for Breakdown) (Use p/n 1001129555) 13 1001118416 NLA Controller Assembly (Drive and Steer) (See CONTROLLER ASSEMBLY (DRIVE AND STEER) for Breakdown) (Use p/n 1001166538) 14 1001110434 1 Plug, Hole 15 1671176 1 Bezel 16 1702565 1 Decal - Drive and Steer 17 1702566 1 Decal - Lift and Swing 18 1702567 1 Decal - Function Speed 19 1704260 1 Decal - EMS 20 1705132 1 Decal - ADE 21 2560136 1 Handle, Knob 22 2920154 1 Panel, LED Light 23 8305919 4 Nut, Retainer M6 24 1702676 1 Decal - Horn 25 3311005 2 Nut #10 27 3911018 2 Bolt #10 x 1-1/8 28 4360328 4 Switch, Toggle 29 4360330 1 Switch, Toggle 30 4360387 1 Switch, Pushbutton 31 4360407 1 Controller, Speed 31 See Note 1 Gasket "Top Hat" (Included with Switch) (Note: Not Available Purchase Complete Controller) 31 70003784 1 Seal 32 4360475 1 Switch, Emergency Stop 32A 7020175 1 Cap, Red 32B 7020176 1 Contact Block 33 4360476 1 Block, Contact 35 4460234 3 Base, Mounting 36 4460428 2 Connector, Strain Relief 37 4460470 1 Nut, Terminal 38 4460471 1 Lockwasher, Terminal 39 4460488 1 Base, Mounting 41 4460905 5 Seal, Plug (Not Shown) 43 4751400 8 Washer 1/4
REV
F
ITEM PART NUMBER QTY DESCRIPTION
45 3790012 8 O-Ring 47 1001131168 1 Decal - Stop 48 1001107952 1 Decal - Display (Prior to SN B300001025) 48 1001164374 1 Decal - Display (SN B300001025 to Present) 49 1001118412 1 Controller, Module (Re-calibration Required when Replaced)
(Prior to SN B300001025)
49 1001157196 1 Controller, Module (Re-calibration Required when Replaced) (SN
B300001025 to Present)
52 4460708 1 Receptacle, Female 15 Position (Not Shown) 53 3520054 5 Plug, Hole 54 4360331 1 Switch, Toggle
