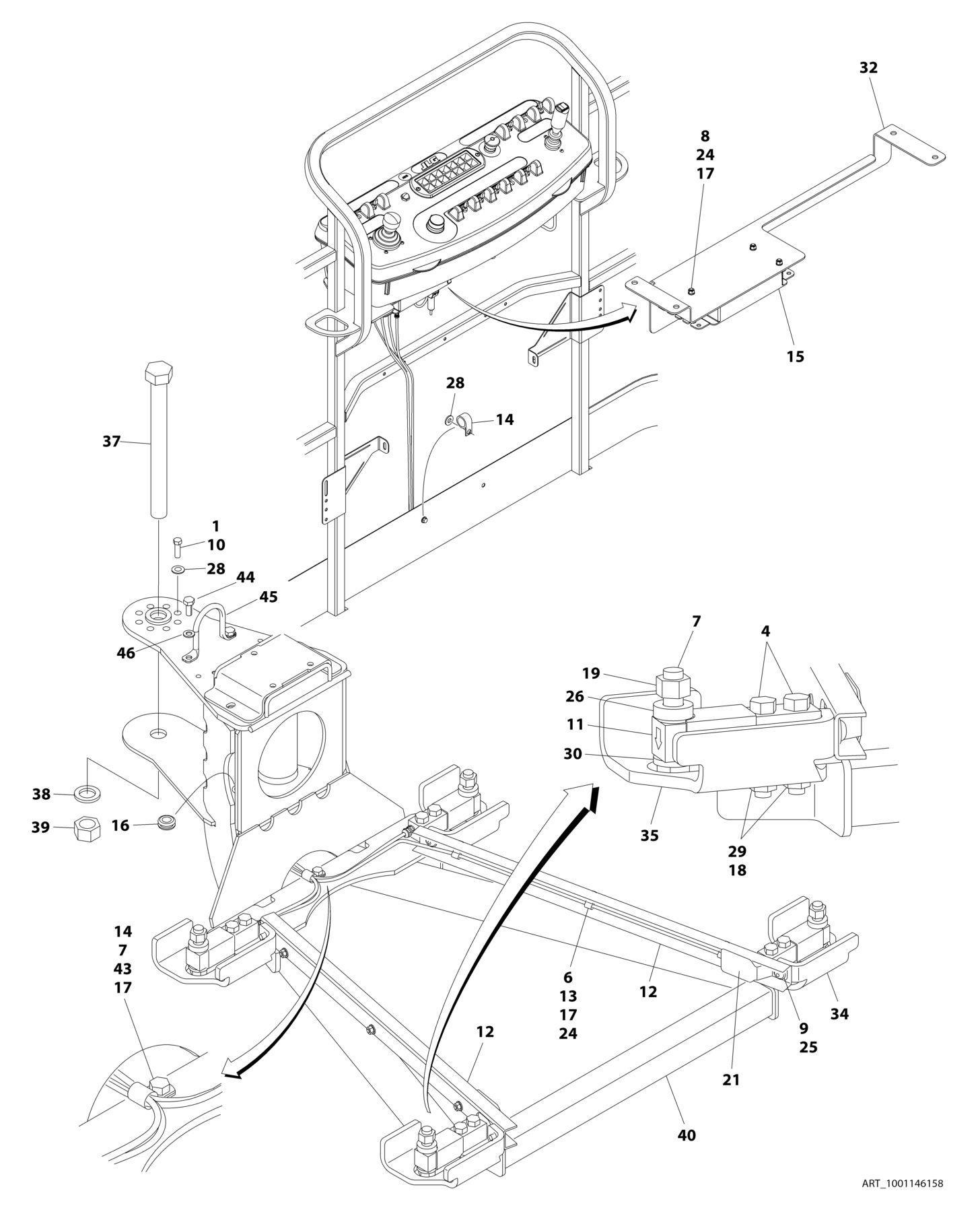

FIGURE 4 13. PLATFORM SUPPORT INSTALLATION WITH LSS
ITEM PART NUMBER QTY
DESCRIPTION
1001146158 Ref INSTALL,PLATFORM SUPPORT W/LSS 1 0100011 AR Compound, Locking 4 0701222 8 Bolt 12mm x 70mm 5 0701624 4 Bolt M16 x 80mm 6 0760608 6 Bolt 6mm x 16mm 7 0760610 1 Bolt 6mm x 20mm 8 0760618 3 Bolt 6mm x 50mm 9 0760808 4 Bolt 8mm x 16mm 10 0771012 8 Bolt 10mm x 25mm 11 0962450 4 Bushing, Spacer 12 1271538 2 Channel, Load Cell Wire 13 1320136 6 Clamp, Cable 14 1320224 2 Clamp, Cable 15 1600387 1 Controller, Load Sense 16 2540038 1 Grommet 17 3290605 10 Nut M6 x 1 18 3291205 8 Nut, M12 x 1.75 19 3291605 4 Nut M16 x 2 21 4061054 2 Shield, Strain Relief 22 4240033 1 Tie Wire 23 4460428 1 Connector, Strain Relief 24 4811700 12 Washer 6mm 25 4811900 4 Washer 8mm 26 4812300 4 Washer 16mm 28 5241000 8 Washer 10mm 29 5241200 8 Washer 12mm 30 5241600 4 Washer 16mm 32 1001113483 1 Bracket 34 1001146213 2 Bracket 35 1001146214 2 Bracket 36 2420202 4 Gauge 37 0712444 1 Bolt 24mm x 270mm 38 5242400 1 Washer 24mm 39 1001098827 1 Nut GR10 M24 40 1001149734 1 Support, Platform 41 1001150159 1 LSS Harness (Not Shown - See ELECTRICAL Section) 42 1001150197 1 LSS Harness (Not Shown - See ELECTRICAL Section) 43 4811702 1 Washer 6mm 44 0761012 2 Bolt 10mm x 25mm 45 3841340 1 Hose, Loop 46 4812000 2 Washer 10mm
