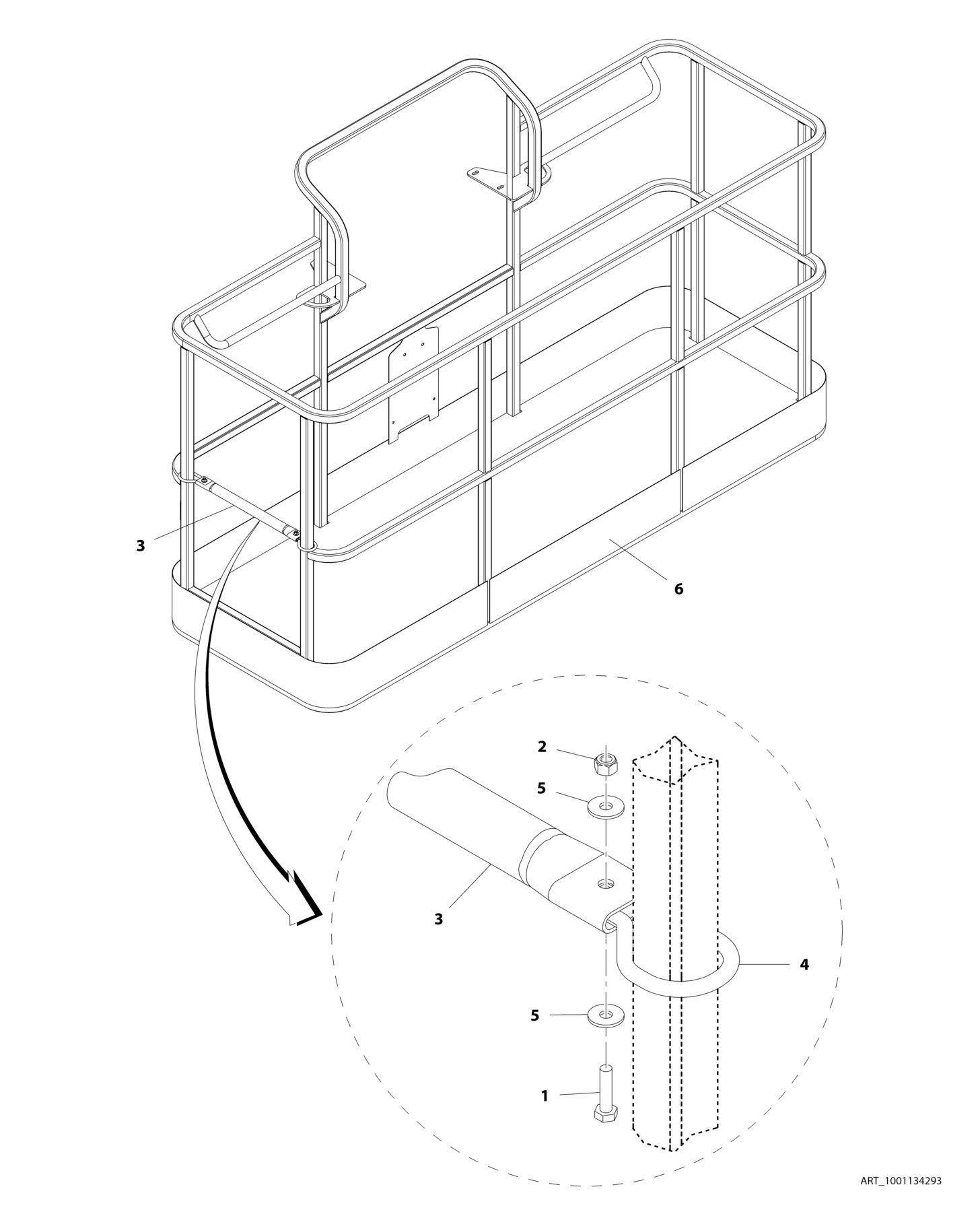

FIGURE 5 1. PLATFORM ASSEMBLY
FIGURE 5-1. PLATFORM ASSEMBLY
FIGURE 5-1. PLATFORM ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
1001134293 Ref PLATFORM ASSEMBLY (Prior to SN B300001836) 1001227180 Ref PLATFORM ASSEMBLY (SN B300001836 to Present) Ref Note: Replacement Decals Must be Ordered Separately - See DECAL SECTION. 1 0760612 2 Bolt M6 x 25 2 3290605 2 Nut M6 3 3641585 1 Rail 4 3841692 2 Loop, Rod 5 4811702 4 Washer M6 6 See Note NLA Platform (Note: Purchase Platform Assembly)
