FIGURE 4 11. PLATFORM SUPPORT INSTALLATION WITHOUT LSS 18RS

from JLG 18RS 18RSJ Parts Manual (3121285)-PDF Download En

FIGURE 8 4. AC AT PLATFORM RECEPTACLE COMPONENTS DEALER/CUSTOMER SUPPLIED

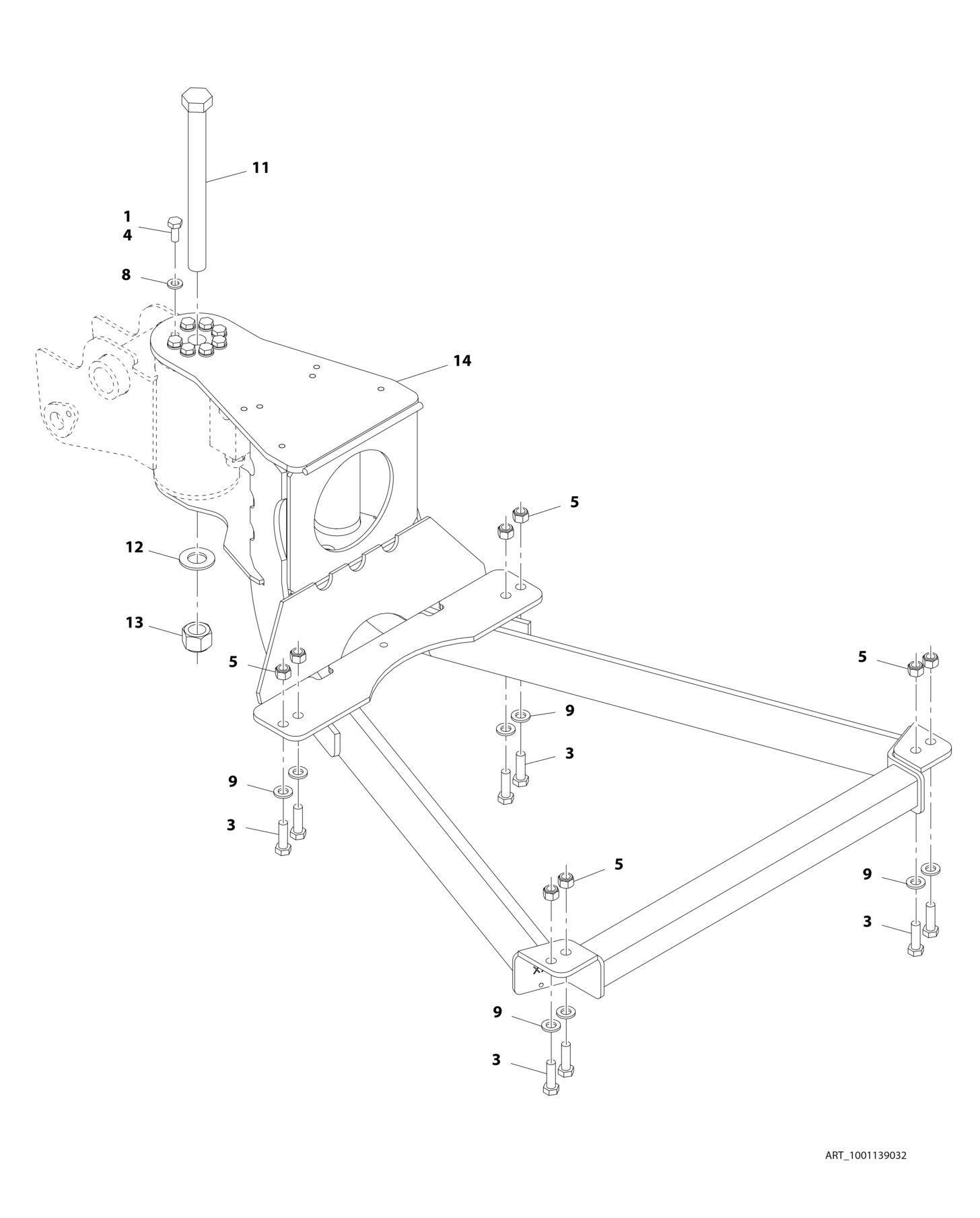

FIGURE 4-11. PLATFORM SUPPORT INSTALLATION - WITHOUT LSS - 18RS

ITEM PART NUMBER QTY DESCRIPTION REV

1001139032 Ref PLATFORM SUPPORT INSTALLATION - WITHOUT LSS - 18RS D 1 0100011 AR Compound, Locking 3 0761216 8 Bolt M12 x 40 4 0771012 8 Bolt M10 x 25 Grade 10.9 5 3291205 8 Nut M12 8 5241000 8 Washer M10 9 5241200 8 Washer M12 11 0712444 1 Bolt M24 x 270 Grade 10.9 12 5242400 1 Washer M24 13 1001098827 1 Nut M24 Grade 10.9 14 1001149734 1 Support

FIGURE 4 11. PLATFORM SUPPORT INSTALLATION WITHOUT LSS 18RS
