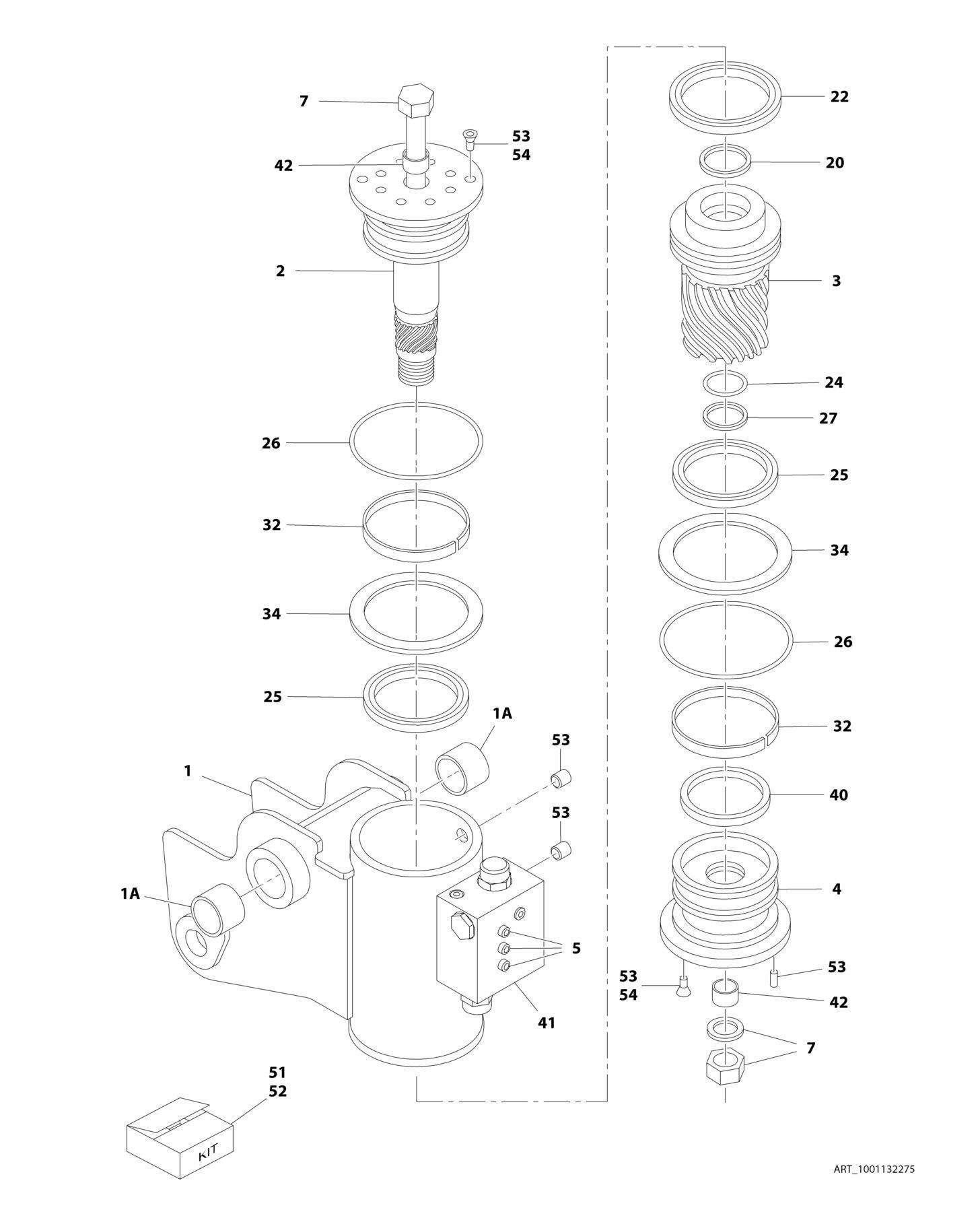

FIGURE 4 9. PLATFORM ROTATOR ASSEMBLY 18RS

FIGURE 4-9. PLATFORM ROTATOR ASSEMBLY - 18RS

FIGURE 4-9. PLATFORM ROTATOR ASSEMBLY - 18RS

ITEM PART NUMBER QTY

DESCRIPTION

1001132275 Ref PLATFORM ROTATOR ASSEMBLY - 18RS 1 See Note 1 Case/Bracket Weldment (Note: Not Available - Purchase Complete Rotator) 1A 7017147 2 Bearing 2 70003948 1 Shaft 3 7017163 1 Piston 4 7017164 1 Cap, End 5 See Note 3 Capscrew 1/4-20 x 1-1/2 (Grade 8) (Note: Not Available Purchase Locally) 7 7017126 1 Tie Rod Assembly 20 See Note NSS T-Seal, Rod (Note: Use Item 52) 22 See Note NSS T-Seal, Piston (Note: Use Item 52) 24 See Note NSS O-Ring (Note: Use Item 52) 25 See Note NSS Seal (Note: Use Item 52) 26 See Note NSS O-Ring (Note: Use Item 52) 27 See Note NSS Ring, Back-up (Note: Use Item 52) 32 See Note NSS Bearing, Shaft (Note: Use Item 51) 34 See Note NSS Thrustwasher (Note: Use Item 51) 40 700003949 1 Spacer, Stop 41 7017183 1 Counterbalance Valve Assembly 41 7017193 2 Cartridge, Valve (Note: No Seal Kit Available) 42 7017195 2 Bushing, Shaft 51 7017159 1 Bearing Kit (Includes Items 32 & 34) 52 Ref Seal Kit Options (Includes Items 20, 22, 24, 25, 26 & 27) 52 7017158 1 Standard Seal Kit 52 70000341 1 Cold Climate Seal Kit 53 7017142 1 Hardware Kit (Includes Plugs, Dowel Pin and Item 54) 54 70001697 4 Screw, Countersunk 1/4-20 x 3/8 (Grade 8)

REV

E
