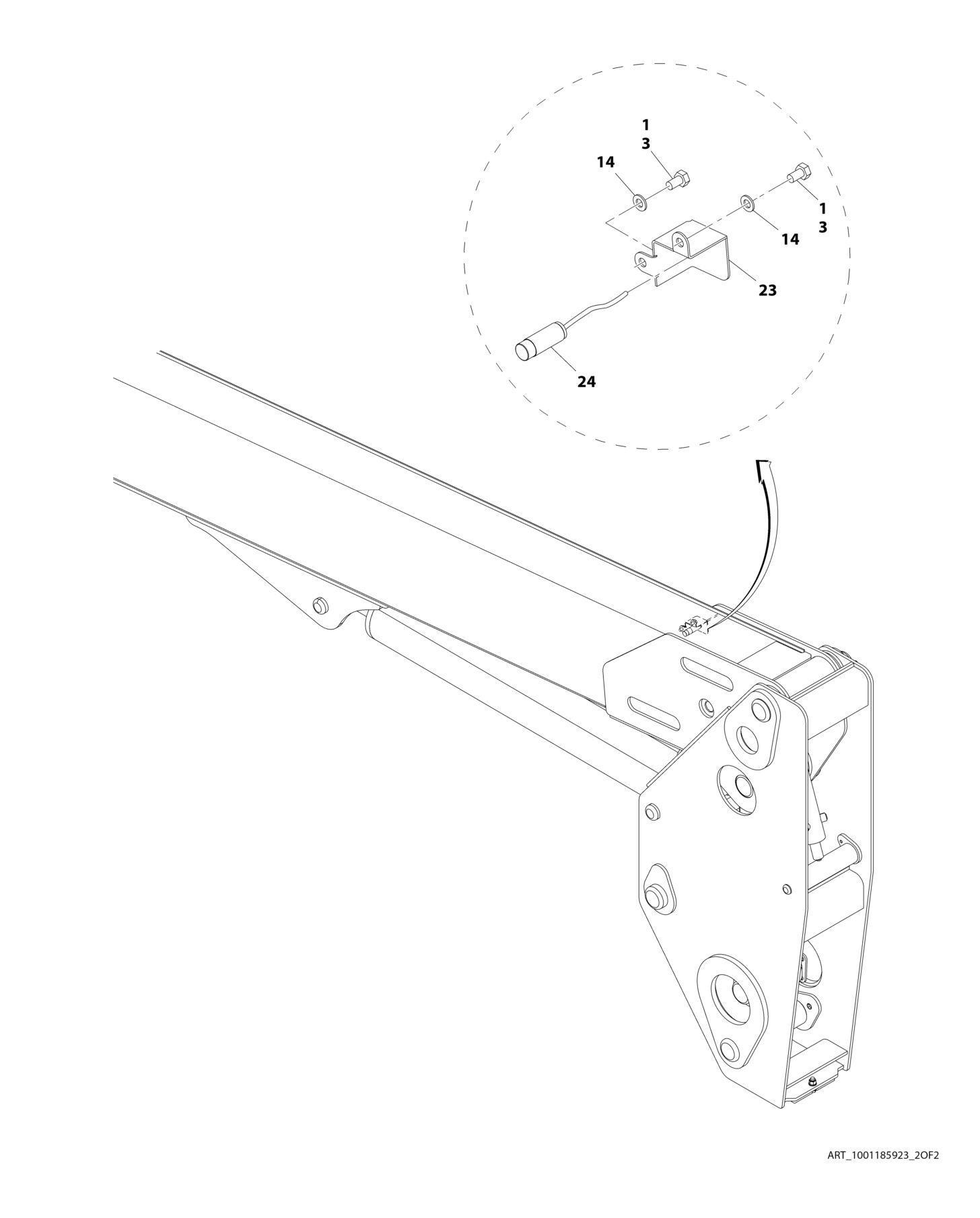

FIGURE 4-8. PROXIMITY SWITCH INSTALLATION - 18RSJ

ITEM PART NUMBER QTY

DESCRIPTION

1001185923 Ref PROXIMITY SWITCH INSTALLATION - 18RSJ 1 0100011 AR Compound, Locking 3 0760807 2 Bolt M8 x 14 14 4811900 2 Washer M8 23 1001149922 1 Cover 24 1001150772 1 Sensor, Proximity 24 4460536 1 Receptacle, Female - 3 Position 24 4460464 3 Pin, Male 30 1001155121 1 Proximity Sensor Harness (Not Shown - See ELECTRICAL SECTION for Breakdown)
